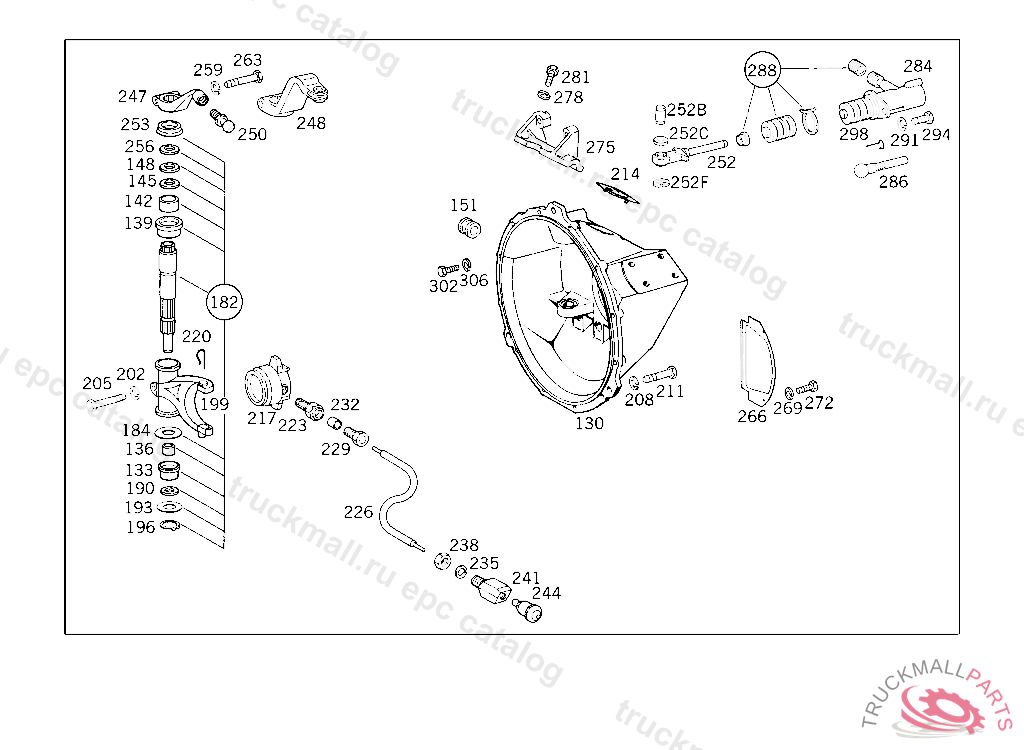

Поз.
Артикул
Описание
130
HOUSING , THE OLD ENGINE SUPPORTS CAB STILL BE USED WHEN REBORTED FROM 17 MM TO 19 MM4 743985, Replaced By: A3972500305, +001A6202420601, +001A6202420701, +004N000960018027, +004N000960018107
130
HOUSING ,4 7439865 285575, Replaced By: A6202501205, +001A6202500155
130
HOUSING BELL HOUSING WITH BUSHINGS
133
BUSHING RELEASE SHAFT,BOTTOM
136
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
139
BUSHING ,4 401411, Replaced By: A3852510450, +001A0119978846
139
BUSHING ,5 285575, Replaced By: A6202510050, +001A6202500155, +001A0099971547
139
BUSHING RELEASE SHAFT,TOP
142
BUSHING RELEASE SHAFT,TOP 35X39 MM
145
SEAL RING RELEASE SHAFT,TOP
145
SEAL RING RELEASE SHAFT,TOP
145
SEAL RING RELEASE SHAFT,TOP 40X52X7 MM
145
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
148
COVER PLATE RELEASE SHAFT,TOP
148
COVER PLATE RELEASE SHAFT,TOP
151
PLUG BELL HOUSING
151
PLUG BELL HOUSING
182
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3895860025
182
REPAIR KIT , Replaced By: A3892500014
182
SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 285575, Replaced By: A3852500014
182
SHAFT (PARTS KIT),RELEASE SHAFT
184
WASHER AS REQUIRED 0.80 MM
184
WASHER AS REQUIRED 0.90 MM
184
WASHER AS REQUIRED 1.00 MM
184
WASHER AS REQUIRED 1.10 MM
184
WASHER AS REQUIRED 1.3 MM
184
WASHER AS REQUIRED 1.20 MM
190
SEAL RING BOTTOM
193
SPACER WASHER RELEASE SHAFT,BOTTOM
196
LOCK RING RELEASE SHAFT,BOTTOM
199
RELEASE LEVER CLUTCH ACTUATION
199
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A6202540108
202
LOCK WASHER FITTING TO BRACKET
205
SCREW , Replaced By: N304017012018
205
SCREW , Replaced By: N000933012102
208
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
211
SCREW RADIATOR M 10X45
214
COVER BELL HOUSING,4 743985
217
RELEASE BEARING CLUTCH ACTUATION
217
RELEASE BEARING CLUTCH ACTUATION
217
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A0002507415
217
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A0002507415
220
SPRING RELEASE BEARING TO RELEASE LEVER
223
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
226
HOSE RELEASE COLLAR LUBRICATION 220 MM
226
HOSE , Replaced By: A3205730036
229
UNION SCREW RELEASE COLLAR LUBRICATION
232
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
235
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
238
NUT RELEASE BEARING LUBRICATION
238
NUT , Replaced By: N308675014002
238
NUT , Replaced By: N308675014000
241
GREASE NIPPLE RELEASE COLLAR LUBRICATION
241
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
241
INTERMEDIATE PIECE , 4 117172, Replaced By: A3872510108, +001N003411002001
244
CAP RELEASE BEARING LUBRICATION
244
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
244
GREASE CUP RELEASE BEARING LUBRICATION, 4 117172
247
LEVER ,4 601609, Replaced By: A6202900534, +001A0009966440
248
LEVER CLUTCH ACTUATION,4 601610
250
BALL PIVOT CLUTCH ACTUATION,4 601609
252
ROD END CLUTCH ACTUATION
256
SEAL RING LEVER TO RELEASE SHAFT,5 285575
259
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
263
SCREW , Replaced By: N304017010053
263
SCREW , Replaced By: N304017010030
266
PLUG BELL HOUSING
266
COVER PLATE , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3972510083, +002A0002510183
266
COVER PLATE , Replaced By: A3852510210
269
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
272
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
272
SCREW , Replaced By: N304017008016
275
BRACKET CLUTCH ACTUATION
275
BRACKET , Replaced By: A3072950840
275
BRACKET , Replaced By: A3072950840
278
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
281
SCREW BRACKET TO SIDE MEMBER
281
SCREW , Replaced By: N304017010002
284
SLAVE CYLINDER CLUTCH ACTUATION
284
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 669429, Replaced By: A0022950407
284
SLAVE CYLINDER CLUTCH ACTUATION
284
SLAVE CYLINDER , Replaced By: A0012955307
284
SLAVE CYLINDER ,4 601609, Replaced By: A0012950307, +001A6202900534, +001A0009966440
286
PIN CLUTCH SLAVE CYLINDER
288
REPAIR KIT CLUTCH SLAVE CYLINDER
288
REPAIR KIT , Replaced By: A0002900911
291
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
294
SCREW BRACKET TO SIDE MEMBER
294
SCREW , Replaced By: N304017010002
298
SNAP RING CLUTCH SLAVE CYLINDER
298
SECURING CLIP , Replaced By: N073130019300
302
SCREW , Replaced By: N308676018010
306
LOCK WASHER BELL HOUSING TO TRANSMISSION
999
SNAP RING LEVER TO RELEASE SHAFT,4 601609
999
LOCK RINGTO 000 553 37 01,000 553 39 01,
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
999
LEVER (PARTS KIT),CLUTCH ACTUATION
999
PROTECTIVE CAP , Replaced By: A0004210887
999
VALVE CLUTCH SLAVE CYLINDER
999
PIN CLUTCH ACTUATION
999
SEAL RING CLUTCH ACTUATION
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019972141
999
VALVE , Replaced By: A3075530107
999
PROTECTIVE CAP ,5 962906
999
PROTECTIVE CAP , Replaced By: A0004210887
999
PROTECTIVE CAP , Replaced By: A0004217187
999
BOOT , Replaced By: A0005863129
999
LOCK
999
HOUSING
999
CLAMP , Replaced By: A0002523227
999
PRESSURE PLATE
999
PLUG BELL HOUSING
