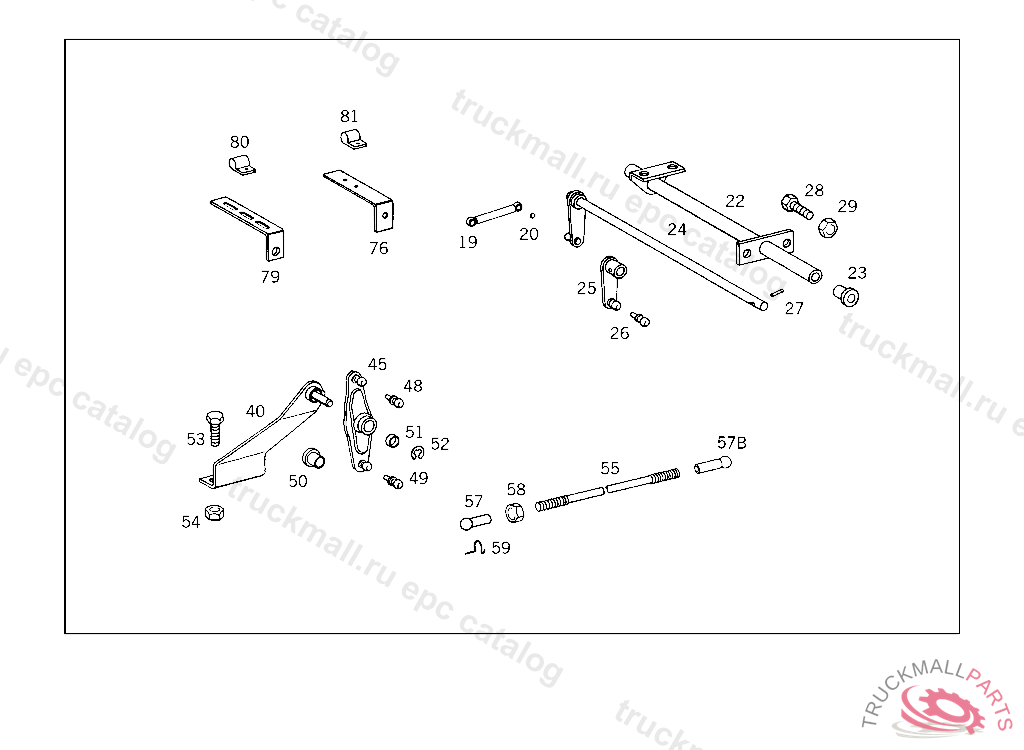

Поз.
Артикул
Описание
19
BALL SOCKET ROD TO ACCELERATOR PEDAL
20
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
22
BEARING TUBE CONTROL SHAFT,5 151594
22
BEARING TUBE ,5 151593, Replaced By: A6153000021, +001A6153000020
23
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
24
SHAFT CONTROL,5 151594
24
SHAFT ,5 151593, Replaced By: A6153000020, +001A6153000021
25
LEVER (CONTROL LEVER)
26
BALL PIVOT
27
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
27
CLAMPING SLEEVE , Replaced By: N308752004001
28
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
28
SCREW , Replaced By: N304017008016
29
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
29
NUT , Replaced By: N913004008001
40
BEARING BRACKET INTERMEDIATE LEVER
40
BEARING BRACKET ,5 290094, Replaced By: A6203000436, +002A6153010088
40
BEARING BRACKET INTERMEDIATE BEARING
40
BEARING BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A6203000336
45
LEVER INTERMEDIATE BEARING
45
LEVER , Replaced By: A6153000628
45
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A3813000928
48
BALL PIVOT LEVER
48
BALL PIVOT , Replaced By: A3129910120
49
BALL PIVOT BOTTOM B13X5 MM
50
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
50
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
51
COVERING INTERMEDIATE BEARING
51
COVERING , Replaced By: A6153010088
52
LOCK PLATE INTERMEDIATE BEARING
53
SCREW END PIECE TO EXHAUST PIPE M 10X25
54
NUT STRAP TO BRACKET
54
NUT , Replaced By: N910113010000
55
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
55
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
57
BALL SOCKET ROD TO BALL PIVOT
58
NUT
59
SECURING CLIP. CIRCLIP
76
BRACKET WIRE CABLE TO FIRE WALL, 415 5 014668 416 5 000515 417 4 972023
79
BRACKET FROM AIR COMPRESSOR TO PRESSURE REGULATOR
80
CLAMP DELIVERY AND SUCTION LINES TO STEERING
80
CLAMP DELIVERY AND SUCTION LINES TO STEERING
80
CLAMP DELIVERY AND SUCTION LINES TO STEERING
80
CLAMP DELIVERY AND SUCTION LINES TO STEERING
80
CLAMP DELIVERY AND SUCTION LINES TO STEERING
80
CLAMP DELIVERY AND SUCTION LINES TO STEERING
80
CLAMP , Replaced By: A6739950001
81
CLAMP ,K 147121, Replaced By: N000000000319
81
CLAMP , Replaced By: N916016008200
81
CLAMP , Replaced By: A3604300143
999
GROMMET
999
BALL SOCKET , Replaced By: A0009912422
999
BRACKET , Replaced By: A3833020540
999
CLAMP LINE MOUNTING
999
SEAL WASHER , Replaced By: A3813010388
999
LEVER , Replaced By: A3813000728
999
LEVER , Replaced By: A6203000928, +002A6153010088
999
ROD LOAD SENSOR CONTROL
999
GUIDE MANUAL CONTROL
999
BRACKET , Replaced By: A3833020840
999
BRACKET , Replaced By: A3833020840
999
BRACKET WIRE CABLE TO FRAME SIDE MEMBER, 415 5 014668 416 5 000515 417 4 972023
999
ROD , Replaced By: A3604302992
999
BRACKET CABLE,4 345193
999
BRACKET CABLE HARNESS MOUNTING
999
BALL SOCKET ROD TO BALL PIVOT
999
PAD ACCELERATOR PEDAL
999
LEVER (INTERMEDIATE LEVER)
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017008021
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
999
SHEET METAL SCREW , Replaced By: N914031005208
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW PIPE CLAMP
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
