Поз.
Артикул
Описание

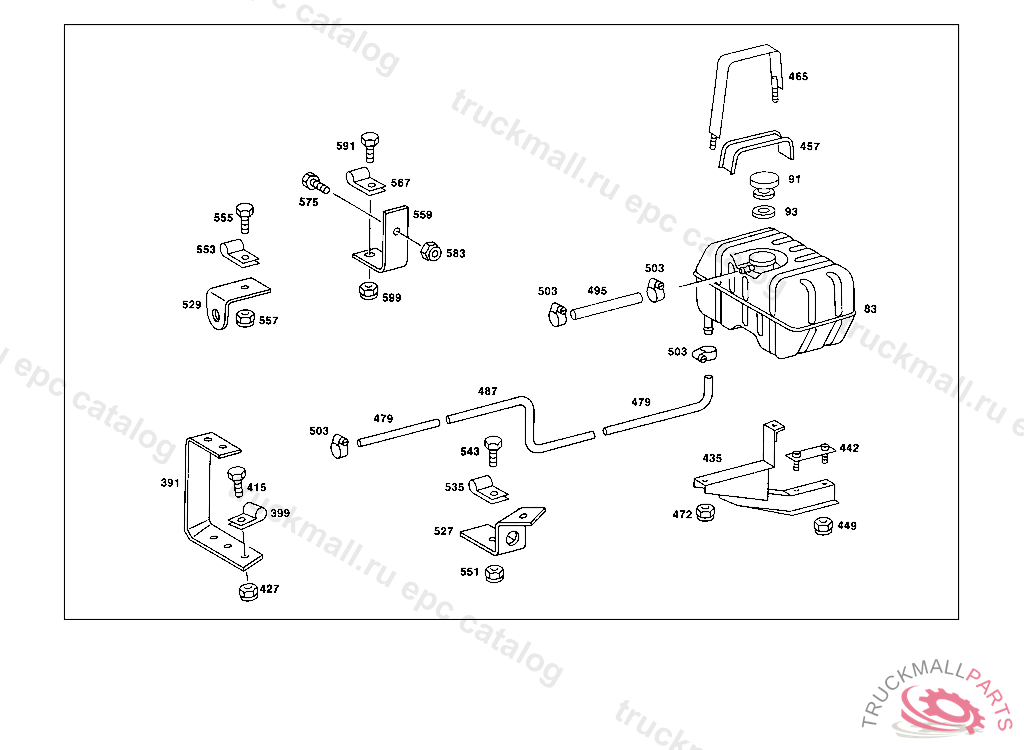

83
TANK IN ENGINE TUNNEL
91
RADIATOR CAP
93
GASKET O.D., 37 MM
391
BRACKET
399
CLAMP , Replaced By: N916016011202
399
CLAMP AT BRACKET
399
CLAMP , Replaced By: A3609951201
399
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
415
SCREW , Replaced By: N304017008021
415
SCREW PIPE CLAMP
427
NUT , Replaced By: N913004008001
427
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
435
SUPPORT EXPANSION TANK
442
BRACKET STRUT TO CROSS MEMBER
449
NUT , Replaced By: N910113010000
449
NUT STRAP TO BRACKET
457
PAD EXPANSION TANK TO SUPPORT
465
BRACKET (STRAP)
472
NUT , Replaced By: N913004008001
472
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
479
HOSE FROM RADIATOR EXPANSION TANK TO EXPANSION TANK IN ENGINE TUNNEL 8X17 MM, ORDER BY THE METER
479
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
487
BREATHER PIPE FROM RADIATOR EXPANSION TANK TO EXPANSION TANK IN ENGINE TUNNEL
495
BREATHER PIPE FROM RADIATOR EXPANSION TANK TO EXPANSION TANK IN ENGINE TUNNEL
503
CLAMP , Replaced By: N916017011001
503
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
527
BRACKET OVERFLOW LINE TO BRACKET AT TRANSVERSE INTAKE PIPE
529
BRACKET OVERFLOW LINE TO BRACKET AT TRANSVERSE INTAKE PIPE
535
CLAMP , Replaced By: A3604300143
535
CLAMP , Replaced By: N916016008200
535
CLAMP ,K 147121, Replaced By: N000000000319
535
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
543
SCREW , Replaced By: N304017006016
543
SCREW PUMP TO BRACKET
551
NUT , Replaced By: N913004006001
551
NUT PUMP TO BRACKET
553
CLAMP , Replaced By: A3604300143
553
CLAMP , Replaced By: N916016008200
553
CLAMP ,K 147121, Replaced By: N000000000319
553
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
555
SCREW , Replaced By: N304017006016
555
SCREW PUMP TO BRACKET
557
NUT , Replaced By: N913004006001
557
NUT PUMP TO BRACKET
557
NUT PUMP TO BRACKET
559
BRACKET , Replaced By: A6454310740
559
BRACKET FUEL LINE TO BELL HOUSING
567
CLAMP , Replaced By: A3604300143
567
CLAMP , Replaced By: N916016008200
567
CLAMP ,K 147121, Replaced By: N000000000319
567
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
575
SCREW , Replaced By: N304017006016
575
SCREW PUMP TO BRACKET
583
NUT , Replaced By: N913004006001
583
NUT PUMP TO BRACKET
591
SCREW , Replaced By: N304017008021
591
SCREW PIPE CLAMP
599
NUT , Replaced By: N913004008001
599
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
LINE , Replaced By: A0005516256
999
LINE12 MM, ORDER BY THE METER4 691315
999
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
999
LOOM TIE , Replaced By: N916017020000
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP LINE MOUNTING
999
BRACKET EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023
999
TANK AT CAB REAR PANEL, 415 5 014668 416 5 000515 417 4 972023
999
CONSOLE , Replaced By: A3815000727
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK 695 MM
999
BRACKET OVERFLOW LINE TO BRACKET AT TRANSVERSE INTAKE PIPE
999
BRACKET (STRAP), 415 5 014668 416 5 000515 417 4 972023
999
BRACKET , Replaced By: A3875015820
999
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK
999
BRACKET , Replaced By: A3834929141
999
HOSE
999
HOSE , Replaced By: A3875012882
999
HOSE VENTILATION, FROM RADIATOR TO EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023
999
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK,4 367399 FOR USE WITH MERCEDES-BENZ CAB
999
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK 1115 MM,4 635938
999
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023 FOR USE WITH SHORT MERCEDES-BENZ CAB
999
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023 FOR USE WITH SHORT MERCEDES-BENZ CAB
999
BREATHER PIPE , Replaced By: N900271015080
999
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK 1215 MM, FOR USE WITH MERCEDES-BENZ CAB,FROM IDENT NO.4 282787
999
BRACKET , Replaced By: A3524290740
999
BRACKET , Replaced By: A6454310740
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK 1055 MM, FOR USE WITH MERCEDES-BENZ CAB4 635939
999
CLAMP COOLING WATER LINE TO BRACKET,5 022370
