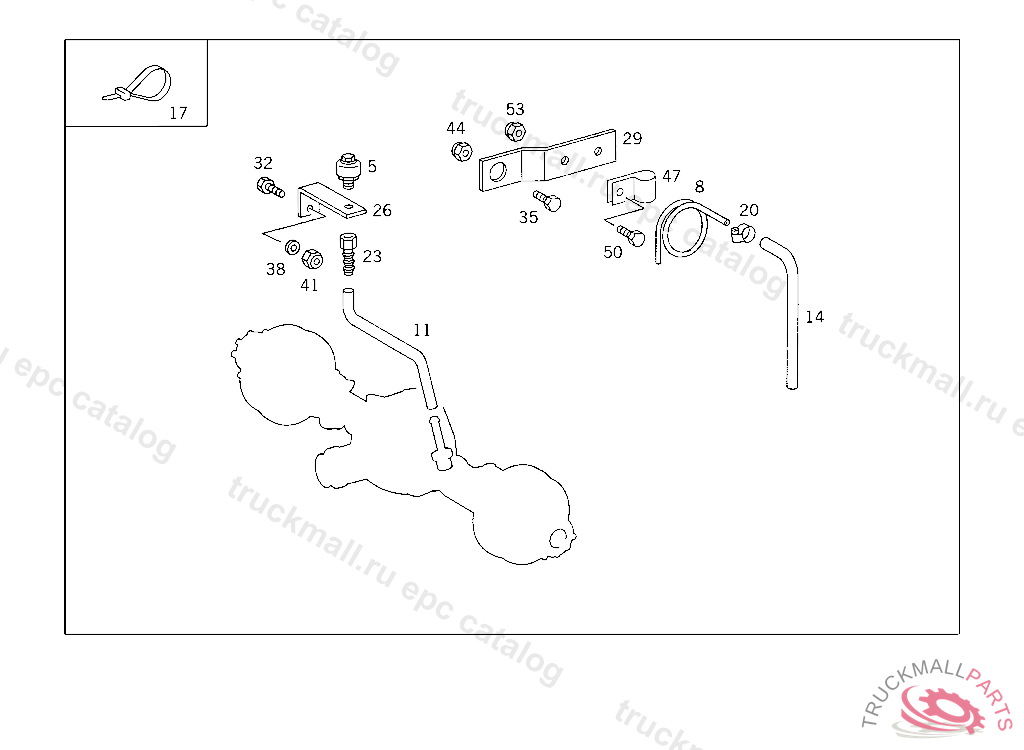

Поз.
Артикул
Описание
5
BREATHER TRANSFER CASE
8
PIPE BREATHER LINE TO REAR AXLE
11
HOSE ,A 069205
14
HOSE BREATHER LINE TO REAR AXLE
17
LOOM TIE , Replaced By: A0019978390
20
CLAMP FUEL LEAK LINE,FUEL FILTER
23
FITTING ,A 069205
26
BRACKET BRAKE LINE COUPLING TO REAR CROSS MEMBER
29
BRACKET BREATHER LINE TO REAR AXLE
32
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
35
SCREW BRACKET TO SIDE MEMBER
38
WASHER TRAILER PLUG SOCKET TO BRACKET
41
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT BRACKET TO BATTERY CASE
47
CLAMP BREATHER LINE TO REAR AXLE
50
53
NUT , Replaced By: N913004006001
