Mercedes N000125005317 - SCHEIBE DIN 125-A 5

L 1619 394.014

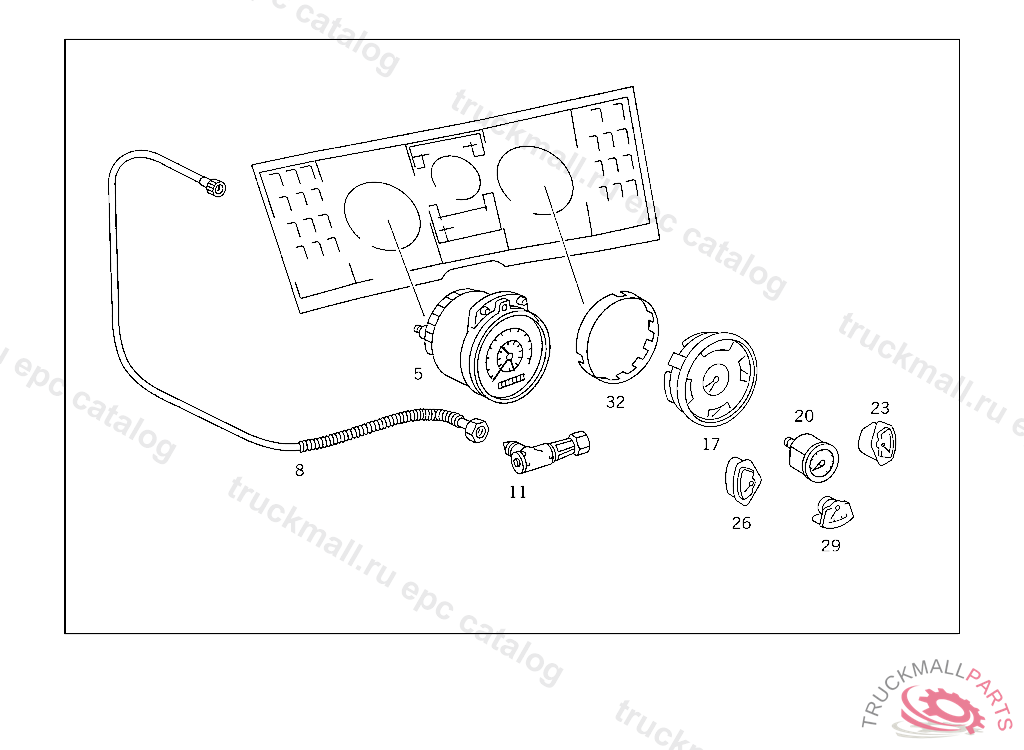

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 030 CONTACT PARTS,GROMMETS,MOUNTING PARTS IL. 1

Поз.
Артикул
Описание
5
A6885427106
SPEEDOMETER , NO.8650I.......I.......I I II .......INO.9005I.......I I II
8
A3455427607
FLEXIBLE SHAFT
11
A0015424330
REDUCTION GEARING0.643
11
A0025423630
REDUCTION GEARING , Replaced By: A0015424330
17
A6885407147
INSTRUMENT CLUSTER , NO.8650I.......I.......I I II .......INO.9005I.......I I II
20
A0015424908
AIR PRESSURE GAUGE
23
A0045420405
TEMPERATURE GAUGE , NO.8650I.......I.......I I II .......INO.9005I.......I I II
26
A0025423602
OIL PRESSURE GAUGE
29
A0025429603
FUEL GAUGE DASH UNIT , NO.8650I.......I.......I I II .......INO.9005I.......I I II
32
A6885427151
SPACER RING SPEEDOMETER TO INSTRUMENT PANEL
999
A0015422230
ANGLE DRIVE , Replaced By: A0035423530
999
A3455420530
ANGLE DRIVE0.9583
999
A3515407673
BRACKET ANGLE DRIVE
999
A6825427007
FLEXIBLE SHAFT
999
N000125005317
WASHER , Replaced By: N000433005304
999
N000933005035
SCREW FROM BACK-UP LAMP TO REAR CROSS MEMBER
999
N000934005004
NUT
999
N912004005102
LOCK WASHER STEP SWITCH
