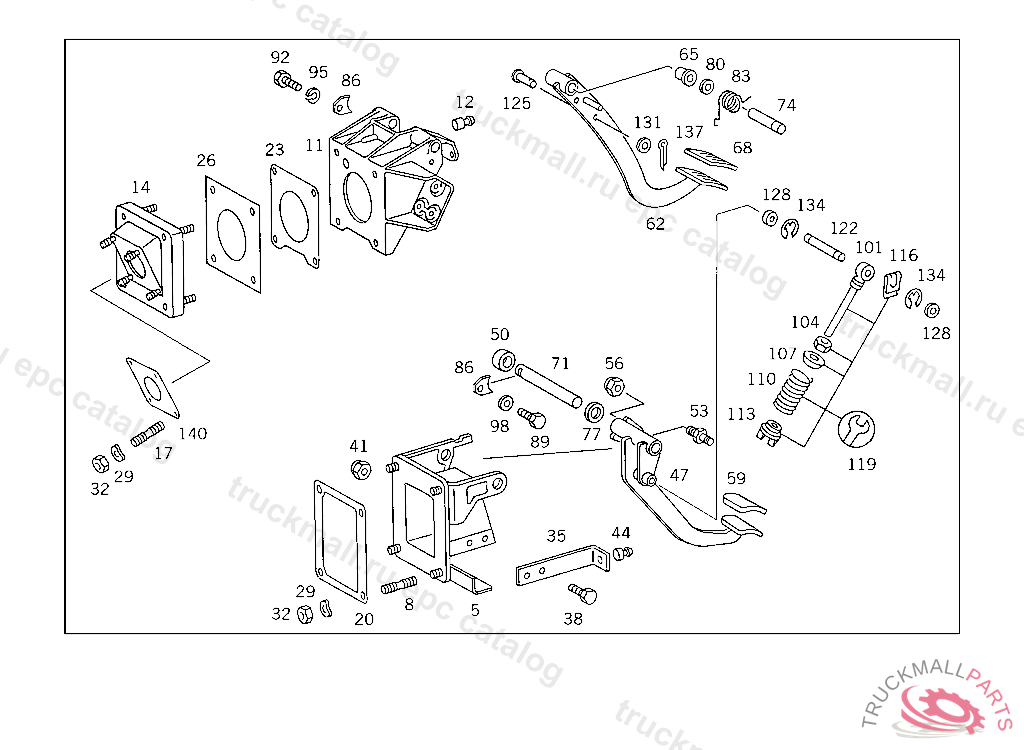

Поз.
Артикул
Описание
5
BEARING BRACKET BRAKE PEDAL
5
BEARING BRACKET , Replaced By: A6882947001
8
STUD
11
BEARING BRACKET , Replaced By: A3842947201
11
BEARING BRACKET BRAKE PEDAL
12
STOP BRAKE PEDAL
12
STOP CLUTCH PEDAL AND BRAKE PEDAL
14
BRACKET SERVICE BRAKE VALVE
14
BRACKET SERVICE BRAKE VALVE
17
SCREW. STUDM 8X25 MM
17
STUD COVER TO SHIFT CASE
20
GASKET , Replaced By: A6452940280
23
GASKET BEARING BRACKET TO CAB
26
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
29
SPRING WASHER BRAKE SHOE WITH LINING
32
NUT TAIL LAMP TO BRACKET
35
STOP CLUTCH PEDAL
35
STOP STOP TO BEARING BRACKET
38
SCREW CLAMP TO BRACKET
41
NUT , Replaced By: N913004006001
44
STOP BRAKE PEDAL
44
STOP
44
STOP CLUTCH PEDAL AND BRAKE PEDAL
44
STOP CLUTCH PEDAL,1B 849449
47
PEDAL (CLUTCH PEDAL)
50
NEEDLE BEARING CLUTCH PEDAL
53
PIN CLUTCH PEDAL39 MM(M10) TO A6952907216
56
NUT AIR CLEANER ELEMENT
59
PAD CLUTCH PEDAL
62
PEDAL BRAKE, NO.8650I.......I I I II .......INO.9985I I I II I
65
BUSHING , Replaced By: A1242920050
68
PAD , Replaced By: A1072910182
71
PIN CLUTCH PEDAL TO BEARING BRACKET
74
PIN CLUTCH PEDAL TO BEARING BRACKET
74
PIN , Replaced By: A6452940074
77
WASHER CLUTCH PEDAL TO BEARING BRACKET
80
SPACER WASHER BRAKE PEDAL TO BEARING BRACKET
83
SPRING BRAKE PEDAL TO BEARING BRACKET
86
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
86
LOCK , Replaced By: A6732920073
89
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
92
SCREWM 6X12
95
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
98
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
101
ROD , Replaced By: A3822908419
104
NUT GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
107
SPRING RETAINER SPRING TO PUSH ROD
110
SPRING CLUTCH PEDAL RESET,B 974884
110
SPRING (DEAD CENTER SPRING) 35 MM
113
SPRING RETAINER SPRING TO PUSH ROD
116
CLIP SPRING TO PUSH ROD
119
REPAIR KIT , Replaced By: A3862900039
119
SPRING PARTS KIT
122
PIN PUSH ROD TO CLUTCH PEDAL52 MM,B 910380
122
PIN , Replaced By: A3842917074
125
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
128
WASHER BRACKET TO FENDER BRACKET
131
WASHER , Replaced By: N000433010510
134
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
137
COTTER PIN SHIFTING ROD TO BRACKET
140
GASKET BRAKE SHOE WITH LINING
999
NUT BATTERY CASE
999
STOP CLUTCH PEDAL STOP
