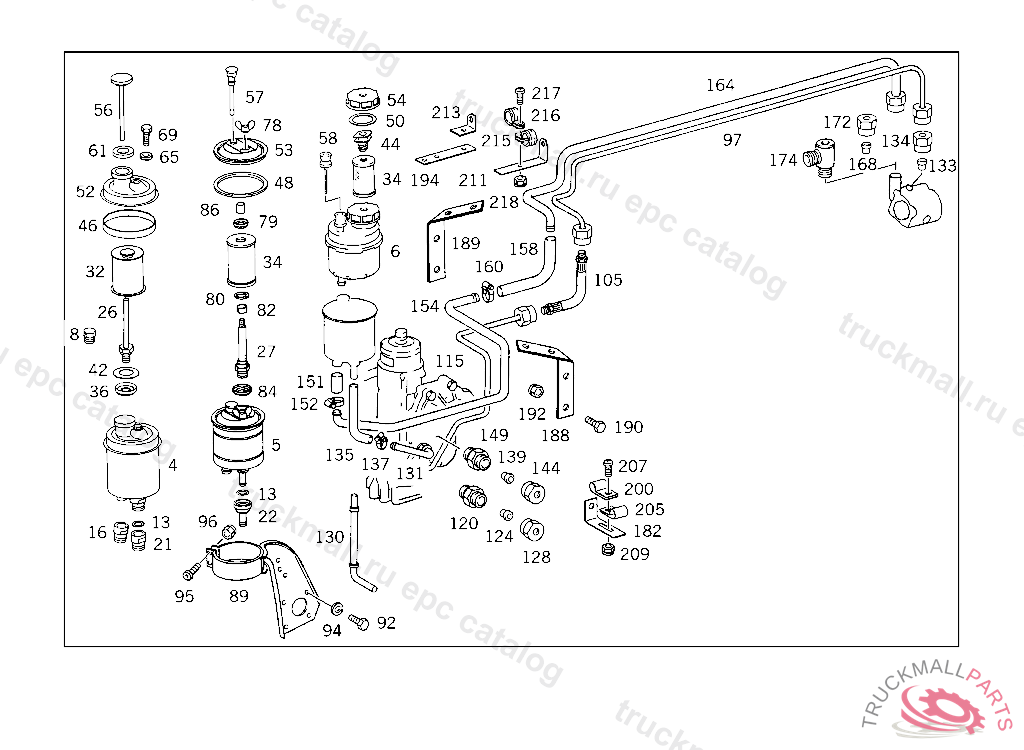

Поз.
Артикул
Описание
4
TANK , 993034
5
TANK , Replaced By: A0004664502
6
TANK OIL
8
FITTING , 993034
13
SEALING CORD , Replaced By: A0059970848
13
SEAL RING , Replaced By: A0059970848
13
SEAL RINGTO 000 466 38 02
16
CONNECTOR , 993034
21
CONNECTOR , 993034
22
CONNECTORTO 000 466 38 02
26
FILTER CARRIER , 993034
27
FILTER CARRIERTO 000 466 38 02
32
FILTER , 993034
34
FILTER , Replaced By: A0004660604
34
FILTER
36
VALVE DISC , 993034
42
SPRING , 993034
44
BRACKET
46
GASKET , Replaced By: A0004660580
46
GASKET , 993034
48
SEAL RINGTO 000 466 38 02
50
SEAL RING
52
COVER , 993034
53
COVERTO 000 466 38 02
54
FILLER CAP
56
COVER , 993034
57
PIPETO 000 466 38 02
58
OIL DIPSTICK , Replaced By: A0004660867
58
OIL DIPSTICK
61
GASKET , 993034
65
WASHER , 993034
69
SCREW , Replaced By: N304017008016
69
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
78
NUT , 993035
79
CENTERING RINGTO 000 466 38 02
80
WASHER , Replaced By: A9402680552
80
SPACER WASHERTO 000 466 38 02
82
SPACER TUBETO 000 466 38 02
84
COVER PLATETO 000 466 38 02
86
RUBBER SLEEVETO 000 466 38 02
89
BRACKET OIL TANK
89
BRACKET OIL TANK
92
SCREW , Replaced By: N304017010028
92
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
94
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
95
SCREW , Replaced By: A0029903712
95
SCREW , Replaced By: N000000001149
95
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
95
SCREW OIL TANK TO BRACKET
96
NUT , Replaced By: N913004006001
96
NUT PUMP TO BRACKET
96
NUT , Replaced By: N913002006009
96
NUT OIL TANK TO BRACKET
97
LINE FROM POWER STEERING PUMP TO HOSE
97
LINE FROM PUMP TO HIGH PRESSURE HOSE, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
105
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
105
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
105
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
115
LINE FROM HIGH PRESSURE HOSE TO STEERING, 993034
115
LINE FROM HIGH PRESSURE HOSE TO STEERING, 993034
115
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
115
LINE , NOT USED
120
SCREW-IN FITTING DELIVERY LINE TO PUMP
124
GLAND , Replaced By: A0019901967
124
SEAL CONE LINE CONNECTION
128
UNION NUT LINE CONNECTION, Replaced By: N000000006239
130
LINE FROM STEERING TO OIL TANK, 993034
131
LINE FROM STEERING TO OIL TANK
133
GLAND LINE CONNECTION
134
UNION NUT LINE CONNECTION
135
HOSE , Replaced By: A3439970582
135
HOSE , Replaced By: A6999974082
135
HOSE , Replaced By: A3859971682
135
HOSE , NOT USED
137
CLAMP HOSE TO FITTING AND TO OIL TANK
137
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
139
GLAND LINE CONNECTION
144
UNION NUT LINE CONNECTION
149
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
151
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
152
CLAMP , Replaced By: N000000000667
152
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
154
LINE FROM LINE TO OIL TANK, 993034
154
LINE FROM LINE TO OIL TANK, 993034
154
LINE FROM OIL TANK TO HOSE, NOT USED
154
LINE FROM RETURN LINE TO OIL TANK, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
158
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
160
CLAMP , Replaced By: N000000000667
160
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
164
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
164
LINE , Replaced By: A0004291601
168
GLAND , Replaced By: A0019901267
168
SEAL CONE LINE CONNECTION
172
UNION NUT LINE CONNECTION, Replaced By: N000000006243
174
ELBOW FITTING SUCTION LINE TO OIL PUMP
182
BRACKET , Replaced By: A3812950440
182
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
182
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
188
BRACKET , Replaced By: A6564660040
188
BRACKET DELIVERY AND SUCTION LINES TO FRAME
189
BRACKET DELIVERY AND SUCTION LINES TO FRAME
190
SCREW , Replaced By: N308676012026
190
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
192
NUT SUPPORT TO SIDE MEMBER
194
BRACKET , Replaced By: A3604293140
194
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
205
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
207
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
209
NUT , Replaced By: N913004006001
209
NUT PUMP TO BRACKET
211
BRACKET , Replaced By: A6205244040
211
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
213
BRACKET , Replaced By: A3875015820
213
BRACKET , Replaced By: A3524290740
213
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
216
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
217
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
218
NUT , Replaced By: N913004006001
218
NUT PUMP TO BRACKET
999
NUT , Replaced By: N910113014000
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT STEERING SUPPORT TO FRAME
999
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
999
SCREW , Replaced By: N308676016006
999
SCREW STEERING SUPPORT TO FRAME M 14X50
999
SCREW STEERING SUPPORT TO FRAME M 14X55
999
COTTER PINROCKINGER,TYP 260 G150,260 G140
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
COTTER PINROCKINGER TYP 260 G140
999
STEERING SHAFT , USED WITH SHORT MERCEDES-BENZ CAB
999
STEERING SHAFTLEMFOERDER, USED WITH SHORT MERCEDES-BENZ CAB
999
COVER PROTECTIVE SLEEVE TO CAB FLOOR,4 188586
999
PROTECTIVE SLEEVE UNIVERSAL JOINT COVERING,4 188586
999
BRACKET ,971569, Replaced By: A3874660840, +001N913004008004
999
PLUG STEERING COLUMN END,5 0627235 113997
999
PLUG , Replaced By: A3839970286
999
WASHER RIGHT HANDLE,5 283752
999
RING STEERING SHAFT
999
STEERING SHAFT , USED WITH SHORT MERCEDES-BENZ CAB, Replaced By: A6504600209
999
COVER
999
STEERING WHEEL ,4 430199, Replaced By: A3834640201, +001A0004640432
999
PROTECTIVE CAP
999
NEEDLE BEARING
