Поз.
Артикул
Описание

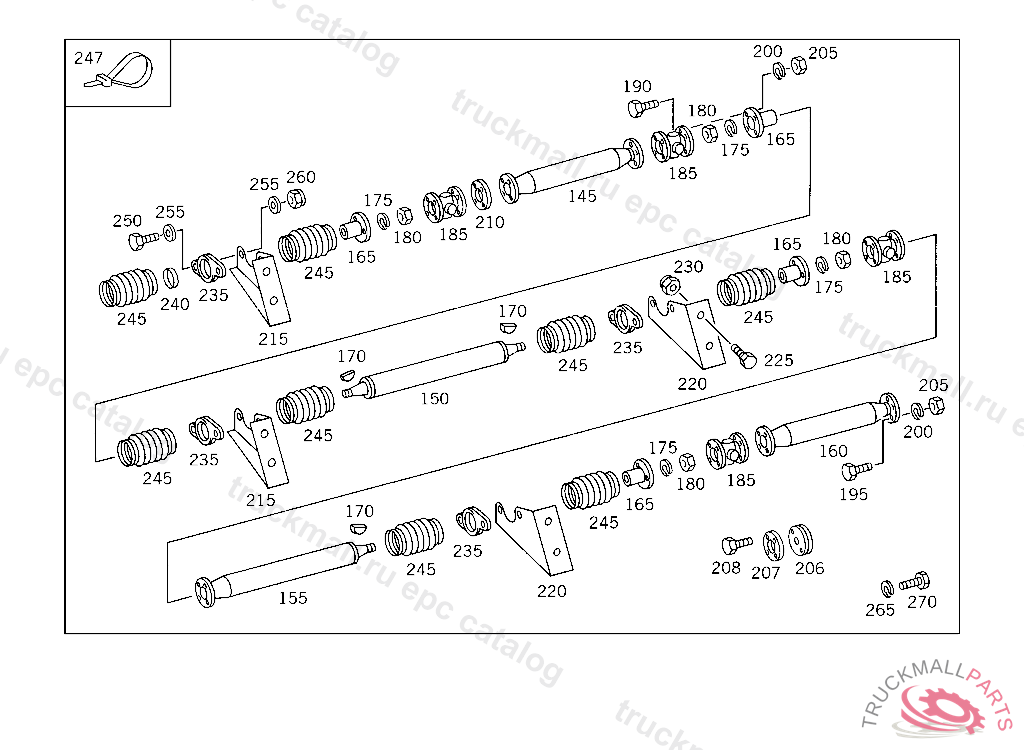

145
SHIFTING RODNO.2,1548 MM
145
SHIFTING RODNO.2,2436 MM
150
SHIFTING RODNO.3,2848 MM, 10/20 6 901446 50/60 5 529480
150
SHIFTING RODNO. 2, 2752 MM
155
SHIFTING ROD , 10/20 6 901445 50/60 5 529479, Replaced By: A3962602533, +002A3572680140, +001A3572680050
155
SHIFTING RODNO.4,1192 MM, 10/20 6 901446 50/60 5 529480
160
SHIFTING ROD , 10/20 6 901445 50/60 5 529479, Replaced By: A3962601433, +001A6732600050, +001A6732680252, +002A3969900201, +002N914125008331
160
SHIFTING RODNO.5, 903 MM
165
CONNECTOR FLANGE TO SHIFTING TUBE
170
WOODRUFF KEY FLANGE TO SHIFTING TUBE
175
LOCK WASHER FITTING TO BRACKET
180
NUT STRAP TO SUPPORT
185
JOINT SHIFTING ROD TO SHIFTING ROD
185
JOINT SHIFTING ROD TO SHIFTING ROD
190
SCREW SHIFTING TUBE TO TRANSMISSION
195
SCREW SHIFTING ROD TO TRANSMISSION, 10/20 6 901446 50/60 5 529480
195
SCREWM 8X40
200
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
205
NUT , Replaced By: N304032008006
206
VIBRATION ABSORBER SHIFTING ROD
207
SPACER WASHER VIBRATION ABSORBER TO SHIFTING ROD
208
SCREW , Replaced By: N910106008015
208
SCREW VIBRATION ABSORBER TO SHIFTING ROD, 10/20 6 901446 50/60 5 529480
210
SPACER WASHER3 MM
210
SPACER WASHER5 MM
210
SPACER WASHER2 MM
215
BRACKET SHIFTING ROD BEARING: NO.1
215
BRACKET SHIFTING ROD BEARING: NO.3
220
BRACKET SHIFTING ROD BEARING
225
SCREW CONSOLE TO FRAME
225
SCREW , Replaced By: N308676012026
225
SCREW CONSOLE TO SIDE MEMBER
225
SCREW , Replaced By: N308676016020
230
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
230
NUT BRACKET TO SIDE MEMBER
235
BRACKET SHIFTING TUBE
235
BRACKET SHIFTING ROD BEARING
240
BUSHING , Replaced By: A3572680050
240
BUSHING SHIFTING ROD TO BRACKET
245
BOOT SHIFTING TUBE
247
LOOM TIE LINE MOUNTING
250
SCREW , Replaced By: N304017008027
250
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
255
WASHER , Replaced By: N000125008443
255
WASHER EXHAUST MUFFLER TO STRAP
260
NUT , Replaced By: N913004008001
