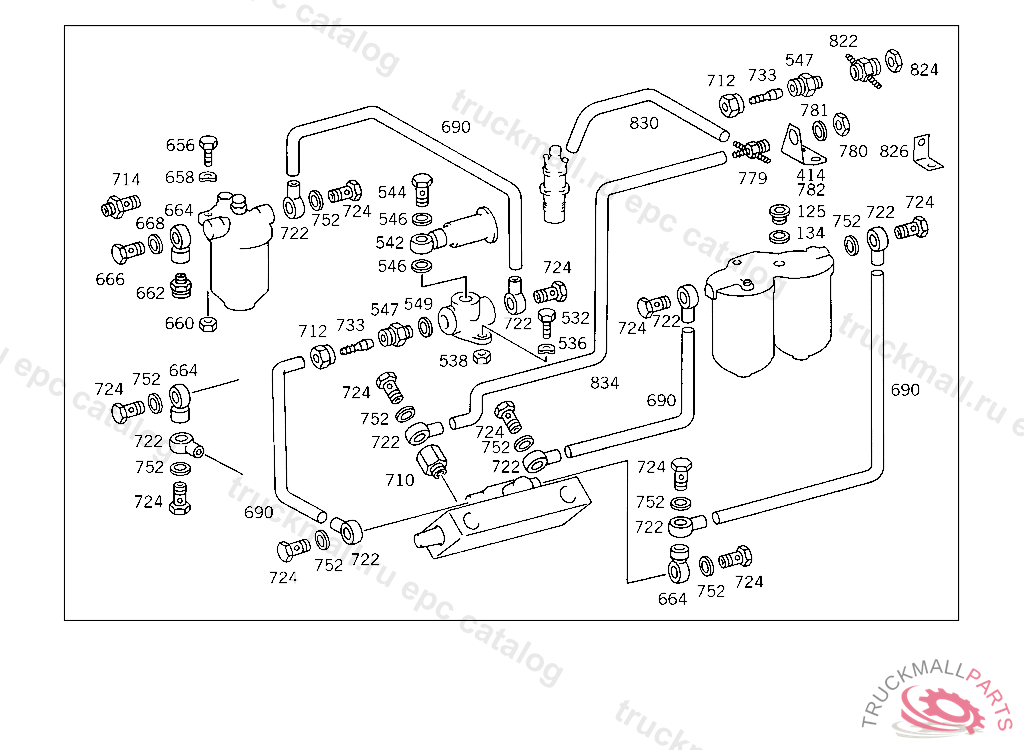

Поз.
Артикул
Описание
125
SCREW PLUGTO 000 553 03 05,000 553 18 05,
125
SCREW PLUG , Replaced By: N000908014009
134
SEAL RINGTO 000 553 03 05,000 553 18 05,
134
SEAL RING INJECTION PUMP
414
BRACKET MULTI-STAGE FUEL FILTER
532
SCREW 3/2-WAY VALVE TO BRACKET
532
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
532
SCREW , Replaced By: N304017006012
532
SCREW , Replaced By: N304017006020
532
SCREW , Replaced By: N000933008337
532
SCREW , Replaced By: N304017008034
532
SCREW , Replaced By: A0099900101
532
SCREW BRACKET TO CROSS CONNECTION STRUT
532
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
532
SCREW BRACKET AND CLAMP M6X20
532
SCREW LICENSE PLATE TO BRACKET
532
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
532
SCREW COVER PLATE TO BRACKET
532
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
532
SCREW CONNECTOR TO TRANSMISSION
532
SCREWM 8X40
536
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
536
SPRING WASHER , Replaced By: N000137008212
536
SPRING WASHER LICENSE PLATE TO BRACKET
538
NUT
538
NUT , Replaced By: N304032008006
538
NUT SPRING-LOADED PUSH ROD
542
BANJO UNION FOR HORIZONTAL MOUNTING OF HAND PUMP TO FEED PUMP
544
HOLLOW SCREW FOR HORIZONTAL MOUNTING OF HAND PUMP TO FEED PUMP
546
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
546
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
547
FITTING WATER SEPARATOR
549
SEAL RING INJECTION PUMP
656
SCREW BRACKET TO FRAME SIDE MEMBER
656
HEXAGON HEAD BOLT BRACKET TO BRACKET
656
SCREW , Replaced By: N304017010002
658
SPRING WASHER STEERING COLUMN BRACKET TO CAB
660
NUT BATTERY CABLE
662
FITTING FUEL LINE TO HAND PUMP
664
BANJO UNION FUEL LINES AND BREATHING
666
HOLLOW SCREW FUEL LINE TO FEED PUMP
668
SEAL RING INJECTION PUMP
690
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
710
ADAPTER FITTING EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
710
INTERMEDIATE PIECE AT INJECTION PUMP
710
INTERMEDIATE PIECE EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
712
NUT. UNION NUT RETURN
714
HOLLOW SCREW FITTING LINE CONNECTION
714
FITTING FUEL LINE TO HAND PUMP
722
BANJO UNION FEED
722
BANJO UNION HOSE WIDTH, / I.D., 8/12 MM
722
BANJO UNION DELIVERY LINE
722
BANJO UNION FUEL LINES AND BREATHING
722
BANJO UNION MANUAL PUMP,D 031294
722
BANJO UNION , Replaced By: N000000000363
724
HOLLOW SCREW
724
HOLLOW SCREW FOR HORIZONTAL MOUNTING OF HAND PUMP TO FEED PUMP
724
HOLLOW SCREW AT FEED PUMP,VB112577
724
HOLLOW SCREW FUEL LINE TO FEED PUMP
724
HOLLOW SCREW 3/2-WAY VALVE,CONNECTION: "2,3"
724
HOLLOW SCREW FUEL LINE TO FEED PUMP
733
CONNECTOR FUEL LEAK,152939
733
FITTING RETURN
752
SEAL RING PNEUMATIC VALVE
752
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
752
SEAL RINGTO 000 553 03 05,000 553 18 05,
752
SEAL RING , Replaced By: N007603010110
752
SEAL RING INJECTION PUMP
779
INTERMEDIATE PIECE RETURN LINE TO INJECTION PUMP
779
INTERMEDIATE PIECE (COLLECTING HOSE CONNECTION)
780
NUT
780
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
781
FITTED WASHER AS REQUIRED 1.50 MM, 10/50 UP TO TRANSMISSION 279825,20/60 FROM TRANSMISSION 000001
782
BRACKET FUEL RETURN AND LEAK LINE
822
INTERMEDIATE PIECE RETURN LINE,517679
824
NUT CHECK VALVE TO AIR RESERVOIR
824
NUT INTERMEDIATE SPEED STOP
826
ANGLE LINE MOUNTING
830
HOSE LEAK LINE, ORDER BY THE METER
830
HOSE PLASTIC PIPE,K 223529
830
HOSE , Replaced By: A0119977782
830
HOSE , Replaced By: A0119977782
830
HOSE , Replaced By: A0119977782
830
HOSE , Replaced By: A0119977782
834
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
999
CLAMPING BRACKET FILTER HOUSING TO PUMP
999
SEPARATOR (WATER SEPARATOR)
999
NUT
999
STUD
999
CLAMPING PIECE FUEL FILTER TO BRACKET,012710
999
LOOM TIE LINE MOUNTING
999
HOLLOW SCREW FUEL LINES TO SOLENOID VALVE
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
INTERMEDIATE PIECE AT INJECTION PUMP
999
LINE FROM FUEL DISTRIBUTOR TO FEED PUMP
999
LINE FROM INJECTION PUMP OVERFLOW VALVE TO T-FITTING
999
LINE FROM FUEL FILTER TO INJECTION PUMP
999
LINE FROM FUEL FEED PUMP TO DISTRIBUTOR,062710
999
BRACKET , Replaced By: A4220901241
999
FILTER , Replaced By: A4420900452
999
PLATE LINE MOUNTING,920657
999
LINE
999
HOLLOW SCREW FUEL LINE LEADING TO FUEL PUMP
999
LINE FROM INJECTION PUMP OVERFLOW VALVE TO RETURN CONNECTION, NOT USED
999
LINE FROM FEED PUMP TO FILTER, NOT USED
999
LINE , Replaced By: A4470700432
999
LINE FROM FUEL FILTER TO INJECTION PUMP, NOT USED
999
LINE , Replaced By: A4470700332
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
LOCK WASHER BRACKET TO SUPPORTING ARM
999
NUT , Replaced By: N304032008006
999
WASHER , Replaced By: N007349008007
999
WASHER
999
SEAL RING SCREW PLUG
999
SCREW SUPPORT TO FENDER
999
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
999
COMBINATION BOLT LEFT & RIGHT CHARGE AIR PIPES TO CYLINDER HEAD M 8X93
999
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
