Поз.
Артикул
Описание
5

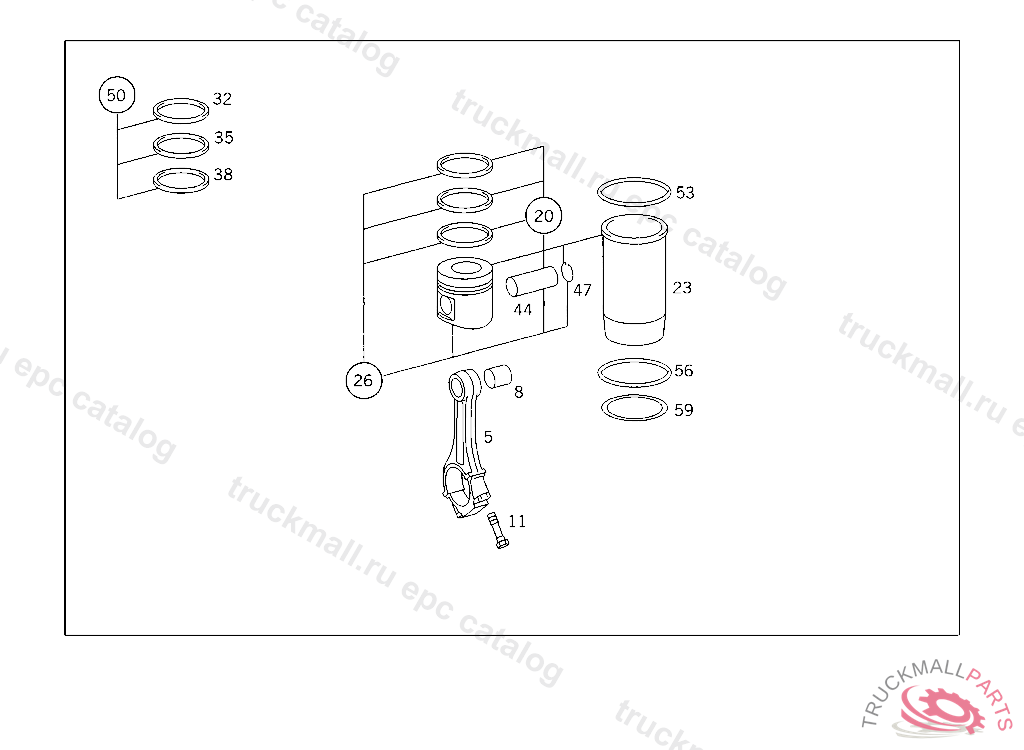

CONNECTING ROD
5
CONNECTING ROD , Replaced By: A4420300220
8
PISTON PIN BUSHINGTO 407 030 07 20, 447 030 04 20
8
PISTON PIN BUSHINGTO 447 030 03 20
8
PISTON PIN BUSHING ,070547 TO BE ADAPTED DURING ASSEMBLY
11
SCREW CONNECTING ROD COVER TO CONNECTING ROD
20
PISTON WITH CYLINDER LINER
20
PISTON , Replaced By: A4420302737
20
PISTON , Replaced By: A4420301837
20
PISTON , Replaced By: A4420301737
20
PISTON , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A4420301737
23
CYLINDER LINER , Replaced By: A4440110310
23
CYLINDER LINER ACCORDING TO FITTING SIZE C,535118
26
PISTON ACCORDING TO FITTING SIZE C
26
PISTON ACCORDING TO FITTING SIZE C
26
PISTON , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A4420303617
32
PISTON RING , Replaced By: A4420370216
32
PISTON RING GROOVE I
35
PISTON RING GROOVE II
38
PISTON RING GROOVE III
44
PISTON PIN
47
SNAP RING
50
PISTON RING PARTS KIT
53
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP, GROOVE: II
53
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP 0.15 MM
53
SEAL RING , Replaced By: A0259978448
56
SEAL RING , Replaced By: A0259978548
56
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, BOTTOM III, IV
59
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP 0.50 MM
59
SUPPORTING RING FOR REPAIR PURPOSES ONLY 1.50 MM
59
SUPPORTING RING FOR REPAIR PURPOSES ONLY 0.80 MM
59
SEAL RING , Replaced By: A4420110259
59
SUPPORTING RING FOR REPAIR PURPOSES ONLY 1.00 MM
