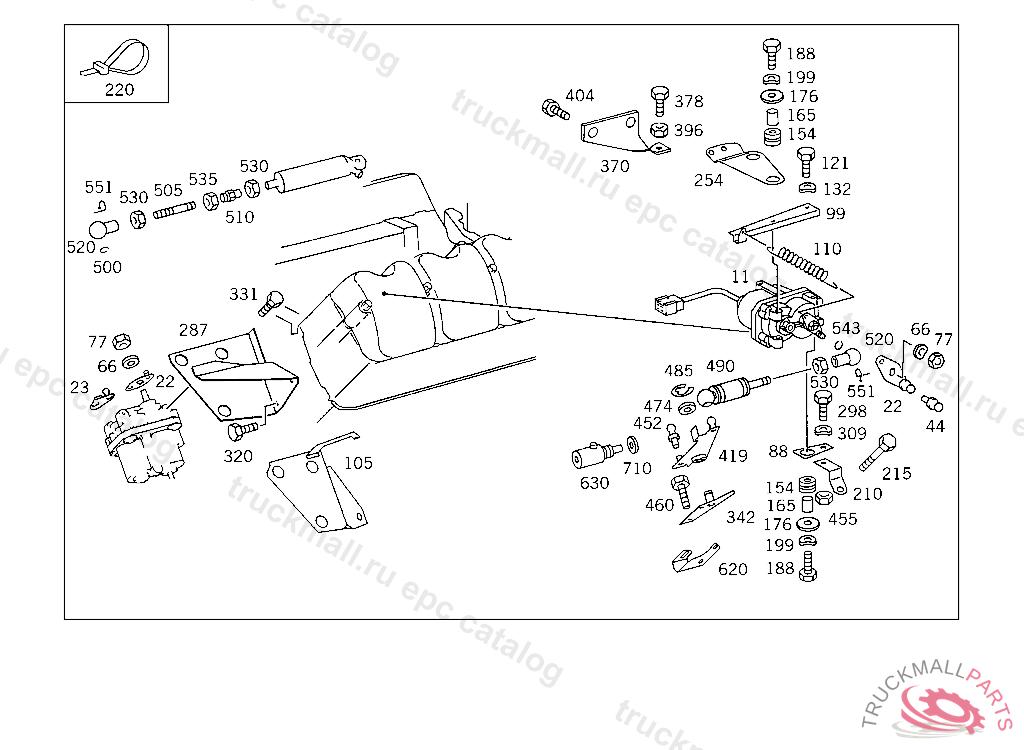

Поз.
Артикул
Описание
11
MOTOR FINAL CONTROL ELEMENT
11
MOTOR , Replaced By: A0005453265
11
MOTOR , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 147934, Replaced By: A0005451165
22
LEVER
23
LEVER
44
BALL PIVOT LEVER
44
BALL PIVOT
44
BALL PIVOT , Replaced By: A3129910120
66
SPRING WASHER , Replaced By: N000137008212
66
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
77
NUT ENGINE MOUNTING M8
88
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 109585, Replaced By: A4220723040
88
BRACKET FINAL CONTROL ELEMENT
99
BRACKET BRACKET WITH TENSION SPRING TO FINAL CONTROL ELEMENT
105
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 119671, Replaced By: A4220702040
105
BRACKET ,114640
110
SPRING (RELEASE SPRING)
121
SCREW COVER PLATE TO COVER PLATE M 6 X 12
121
HEXAGON HEAD BOLT
132
SPRING WASHER LICENSE PLATE TO BRACKET
154
GROMMET , Replaced By: A1029970081
154
GROMMET ACTUATOR TO BRACKET
165
SPACER TUBE OIL LINE TO BRACKET,K 093236
176
WASHER ACTUATOR TO BRACKET
188
SCREW , Replaced By: N000000001479
188
SPRING WASHER LICENSE PLATE TO BRACKET
188
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
199
SPRING WASHER LICENSE PLATE TO BRACKET
210
BRACKET FINAL CONTROL ELEMENT
215
SCREW STEERING SUPPORT TO FRAME M 10X75
215
SCREW BRACKET TO INJECTION PUMP M 10X76
215
SCREW , Replaced By: A4429905901
220
LOOM TIE TO MOUNT PLASTIC PIPING
254
BRACKET FINAL CONTROL ELEMENT
287
BRACKET ,114639
287
BRACKET ,114639
298
SCREW , Replaced By: N304017008016
298
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
309
SPRING WASHER , Replaced By: N000137008212
309
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
320
HEXAGON HEAD BOLT CONTROL ARM, LINKAGE ADJUSTER ON BEARING BRACKET M8X12
331
SCREW OIL LINE TO CRANKCASE
342
BRACKET CONTROL LEVER
370
BRACKET
378
SCREW BRACKET TO CROSS CONNECTION STRUT
378
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
396
HEXAGON NUT. NUT , Replaced By: N913023008002
404
SCREW SUPPORTING ARM TO HOUSING M 16X35
419
LEVER , Replaced By: A4420702221
419
LEVER , Replaced By: A4420702121
419
LEVER FINAL CONTROL ELEMENT
419
LEVER FINAL CONTROL ELEMENT
419
LEVER FINAL CONTROL ELEMENT
452
BALL PIVOT
452
BALL PIVOT LEVER
452
BALL PIVOT INJECTION PUMP
452
BALL PIVOT , Replaced By: A3129910120
455
NUT BALL PIVOT TO LEVER
460
SCREW CLAMP MOUNTING M 6X16
474
FITTED WASHER CLUTCH SLAVE CYLINDER TO RELEASE YOKE,4 667416
485
LOCK PLATE
490
ROD LINK TO ACCELERATOR PEDAL
490
ROD (PUSH ROD),SPRING-LOADED
490
ROD
500
SNAP RING SPRING-LOADED PUSH ROD
505
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
510
TURNBUCKLE
520
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
520
BALL SOCKET ROD TO LEVER
520
BALL SOCKET
530
NUT BALL PIVOT TO LEVER
535
NUT L.H. THREAD
543
SNAP RING SPRING-LOADED PUSH ROD
551
CIRCLIP. SECURING CLIP CONTROL ROD
551
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
620
BRACKET , Replaced By: A4410721640
620
BRACKET
630
CYLINDER
630
CYLINDER , Replaced By: A0000701983, +001A4410721740, +001A4412230641
710
WASHER , Replaced By: N000125015019
710
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
LEVER LOAD CONTROL, TO BE ADAPTED DURING ASSEMBLY
999
LEVER
999
LEVER
999
ROD CONTROL
999
ELECTRIC MOTOR , Replaced By: A0005450665, +001A4220700621, +001A4220720621
999
BEARING BRACKET CONTROL SHAFT
999
BEARING BRACKET CONTROL SHAFT
999
BEARING BRACKET TELMA BRAKE CUT-OFF WHEN ACTUATING ACCELERATOR PEDAL
999
BEARING BRACKET CONTROL SHAFT
999
BEARING BRACKET , Replaced By: A4030701023, +001A4420701319, +001A4220700921, +001A4030721250, +001A4429935010, +001N000931006118, +001N000934006007, +001N006888004012, +001N912004006102
999
ROD
999
ROD
999
ROD
999
SHAFT , 402.910 256465 404.901 005579 422.905 047593460461, Replaced By: A4420700323, +001N071803010102, +001N913004006002
999
LEVER , Replaced By: A4420702121
999
SHAFT , Replaced By: A4220700723
999
SHAFT , Replaced By: A4220700323, +001A4073015088
999
ROD (PUSH ROD),SPRING-LOADED
999
ELECTRIC MOTOR , Replaced By: A0005450665, +001A4070704621
999
ROD
999
PIN , Replaced By: A4221440174, +001N999900008004
999
LEVER , Replaced By: A4410700621
999
SHAFT ,256464, Replaced By: A4220700323, +001A4073015088
999
WASHER INTERMEDIATE SPEED STOP TO INJECTION PUMP
999
CYLINDER , Replaced By: A0004304826
999
REPAIR KIT (POWER CYLINDER)
