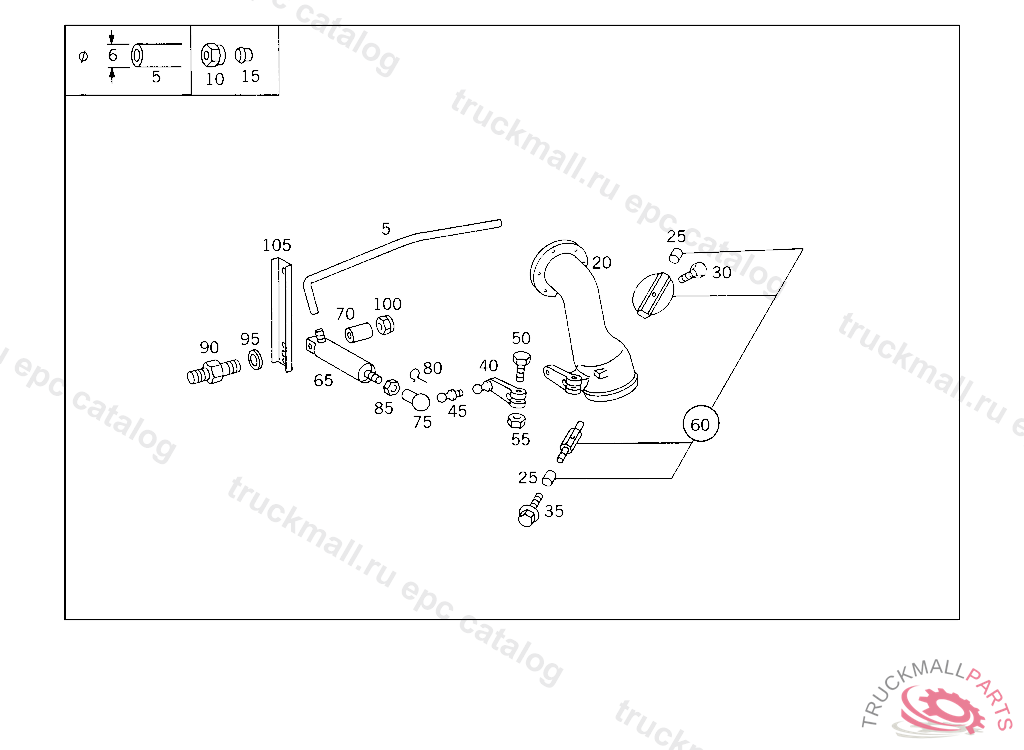

Поз.
Артикул
Описание
5
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
10
UNION NUT
15
GLAND , Replaced By: A0019901667
15
SEAL CONE
20
THROTTLE HOUSING LEFT
25
BUSHING
30
SCREW SHAFT TO THROTTLE VALVE
30
SCREW , Replaced By: N000933008390
35
SCREW BRACKET TO THROTTLE HOUSING
40
LEVER LEVER TO EXHAUST-BRAKE THROTTLE VALVE SHAFT
45
BALL PIVOT POWER CYLINDER TO THROTTLE VALVE LEVER
50
SCREW LEVER TO THROTTLE VALVE SHAFT
55
NUT BATTERY MOUNTING
55
NUT CYLINDER TO BRACKET TO0002902112
60
VALVE PARTS KIT
65
WORKING CYLINDER (POWER CYLINDER),EXHAUST BRAKE
65
CYLINDER , Replaced By: A0004305926
65
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
70
BUSHING"WABCO"
75
BALL SOCKET POWER CYLINDER TO THROTTLE VALVE LEVER
80
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
85
NUT
85
NUT , Replaced By: N304032008006
90
PIN POWER CYLINDER TO BRACKET
95
WASHER INTERMEDIATE SPEED STOP
100
NUT POWER CYLINDER TO BRACKET
105
BRACKET EXHAUST-BRAKE POWER CYLINDER
