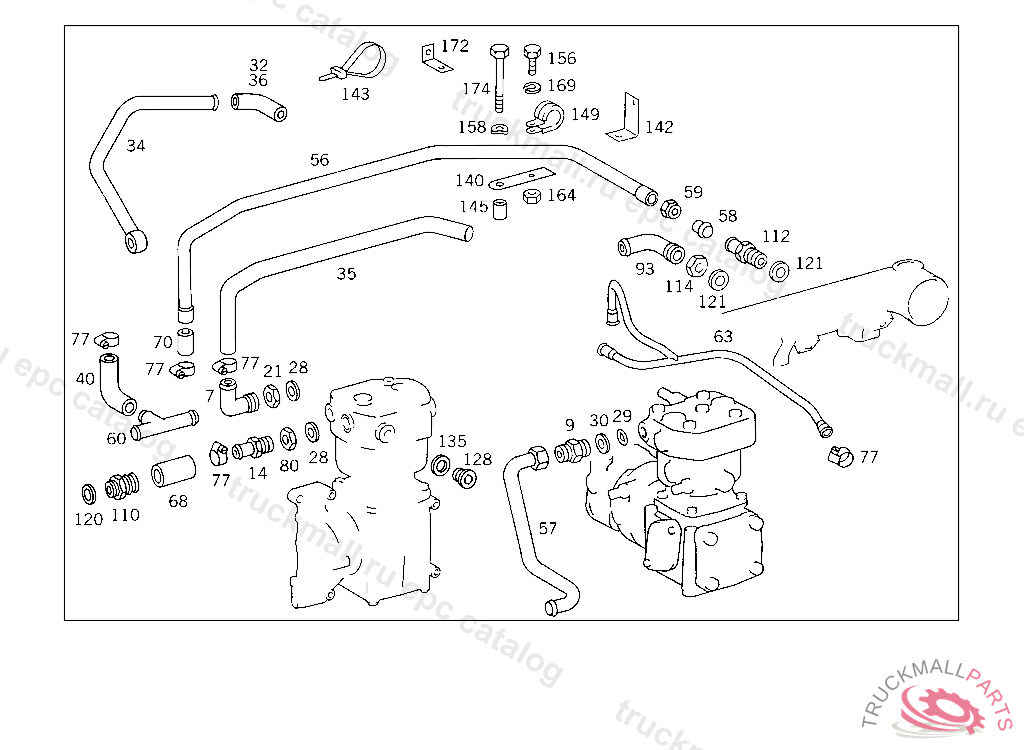

Поз.
Артикул
Описание
7
ELBOW FITTING , Replaced By: A0039901671
7
PIPE BEND AT AIR COMPRESSOR
7
ELBOW FITTING SUCTION LINE TO OIL PUMP
7
ELBOW FITTING AT AIR COMPRESSOR, 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
7
PIPE BEND ENGINE BREATHING
7
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
7
FITTING , Replaced By: A6739900171
9
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
14
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
14
FITTING OIL RETURN TO TIMING CASE,RIGHT
14
FITTING AIR COMPRESSOR,CONNECTION: "10"
14
SCREW FITTING OIL RETURN,705630763101
14
FITTING AT AIR COMPRESSOR
21
NUT , Replaced By: N080705026003
21
NUT
21
NUT 3/2-WAY VALVE TO CAB,4 685151
21
NUT SUCTION LINE TO OIL PUMP
28
SEAL RING LINE CONNECTION
28
SEAL RING TURBOCHARGER OIL RETURN
28
SEAL RING SUCTION LINE TO AIR COMPRESSOR
28
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
28
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
28
THRUST RING SUCTION LINE TO OIL PUMP
29
SEAL RING LINE CONNECTION
30
THRUST RING SUCTION LINE TO OIL PUMP
32
HOSE VERTICAL AIR COMPRESSOR
32
HOSE AIR-COMPRESSOR AIR INTAKE
34
INTAKE PIPE AIR-COMPRESSOR AIR INTAKE
35
INTAKE PIPE VERTICAL AIR COMPRESSOR
36
HOSE AIR-COMPRESSOR AIR INTAKE
36
HOSE AIR-COMPRESSOR AIR INTAKE
36
HOSE MOLDED HOSE
36
HOSE
36
HOSE AIR COMPRESSOR
36
HOSE , ORDER BY THE METER
36
HOSE
36
HOSE AIR-COMPRESSOR AIR INTAKE
36
HOSE HOSE TO AIR INTAKE PIPE & TO AIR COMPRESSOR & ENGINE BREATHER,RESP., ORDER BY THE METER
36
HOSE
36
HOSE HORIZONTAL AIR COMPRESSOR
40
HOSE
56
INTAKE PIPE
56
INTAKE PIPE AIR COMPRESSOR
56
INTAKE PIPE VERTICAL AIR COMPRESSOR
56
INTAKE PIPE
56
HOSE AIR COMPRESSOR
56
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
56
INTAKE PIPE AIR-COMPRESSOR AIR INTAKE
56
INTAKE PIPE AIR-COMPRESSOR AIR INTAKE
56
INTAKE PIPE
56
INTAKE PIPE AIR COMPRESSOR
56
INTAKE PIPE VERTICAL AIR COMPRESSOR
56
INTAKE PIPE
56
INTAKE PIPE AIR-COMPRESSOR AIR INTAKE
56
INTAKE PIPE
56
INTAKE PIPE AIR-COMPRESSOR AIR INTAKE
56
INTAKE PIPE AIR-COMPRESSOR AIR INTAKE
56
INTAKE PIPE AIR COMPRESSOR,037586
56
INTAKE PIPE
56
INTAKE PIPE
56
INTAKE PIPE
56
INTAKE PIPE
56
INTAKE PIPE HORIZONTAL AIR COMPRESSOR
56
INTAKE PIPE
57
INTAKE PIPE AIR COMPRESSOR,040174
57
INTAKE PIPE AIR COMPRESSOR,040173
58
INTAKE PIPE HORIZONTAL AIR COMPRESSOR
58
INTAKE PIPE HORIZONTAL AIR COMPRESSOR
59
GLAND , Replaced By: A0019901267
60
NUT LINE CONNECTION
60
UNION NUT LINE CONNECTION, Replaced By: N000000006243
63
AIR INTAKE PIPE
68
PIPE
68
HOSE AIR-COMPRESSOR AIR INTAKE
70
HOSE AIR-COMPRESSOR AIR INTAKE
70
HOSE
70
HOSE AIR COMPRESSOR CONNECTION 240 MM, ORDER BY THE METER
77
LOOM TIE
77
CLAMP PRESSURE REGULATOR
77
CLAMP25-40X13 MM
77
LOOM TIE , Replaced By: N000000000668
77
CLAMP , Replaced By: N000000000667
77
CLAMP , Replaced By: A0069970490
77
CLAMP , Replaced By: A0069970590
77
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
77
CLAMP SUCTION LINE TO AIR COMPRESSOR
77
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
77
CLAMP , Replaced By: N000000000670
80
NUT 3/2-WAY VALVE TO CAB,4 685151
80
NUT , Replaced By: N080705026003
93
PIPE BEND ENGINE BREATHING
93
PIPE BEND AT AIR COMPRESSOR
110
FITTING OIL RETURN TO TIMING CASE,RIGHT
112
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
112
FITTING AIR COMPRESSOR,CONNECTION: "10"
112
FITTING AT AIR COMPRESSOR
114
NUT SUCTION LINE TO OIL PUMP
114
NUT , Replaced By: N080705026003
114
NUT 3/2-WAY VALVE TO CAB,4 685151
120
SEAL RING TURBOCHARGER OIL RETURN
121
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
128
SCREW PLUG , Replaced By: N000908026008
128
SCREW PLUG , Replaced By: A0009973532
128
SCREW PLUG OIL COOLER,5 360280
135
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
135
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
140
BRACKET AT COOLING WATER OUTLET
140
LOOM TIE LINE MOUNTING
140
BRACKET , Replaced By: A3604293140
140
BRACKET , Replaced By: A3604293140
140
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
140
BRACKET
142
BRACKET
143
LOOM TIE LINE MOUNTING
145
SPACER TUBE HOSE TO FITTING,5 7098915 800307
149
CLAMP HOSE TO BRACKET 25/20,5 206397
149
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
149
CLAMP HOSE TO FLANGE AND TO VALVE
149
CLAMP CABLE HARNESS MOUNTING
149
CLAMP STAY TO BRACKET
149
CLAMP DELIVERY AND SUCTION LINES TO FRAME
149
CLAMP , Replaced By: N916016010211
149
CLAMP , Replaced By: N000000001045
149
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
156
SCREW , Replaced By: N304014008021
156
SCREW , Replaced By: N304017006016
156
SCREW , Replaced By: N304017008016
156
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
156
SCREW , Replaced By: N914146006102
156
SCREW PUMP TO BRACKET M 6X20
156
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
156
SCREW BRACKET AND CLAMP M6X20
156
SCREW STOP TO BATTERY CASE
156
SCREW CLAMP MOUNTING M 6X16
156
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
158
SPRING WASHER , Replaced By: N000137008212
158
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
158
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
164
NUT DISTRIBUTOR TO BRACKET
164
NUT , Replaced By: N913004006003
164
NUT , Replaced By: N910113006001
164
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
164
NUT SPRING-LOADED PUSH ROD
169
WASHER SWITCH TO FIRE WALL
169
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
172
BRACKET SCREENING PLATE TO CYLINDER HEAD COVER
174
SCREW. HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRAKE ANCHOR M10X16
174
HEXAGON HEAD BOLT. SCREW POWER CYLINDER TO BRACKET
174
SCREW , Replaced By: A0069909101
999
HOSE , Replaced By: A4969970082
999
HOSE , Replaced By: A0029979282
999
HOSE , Replaced By: A0009970152
999
HOSE , Replaced By: A4969970082
999
HOSE , Replaced By: A0009977552
999
LOCKING CAP , Replaced By: A3845067033
999
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421340682
999
LOCKING CAP TO PLUG INTAKE MANIFOLD AT AIR COMPRESSOR CONNECTION
999
LOCKING CAP TO LOCK COOLING WATER BOTTOM OUTLET
999
SEAL RING TO LOCK AIR INTAKE PIPE SOCKET
999
HOSE MOLDED HOSE
999
HOSE MOLDED HOSE
999
PIPE BEND
999
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421341082
999
HOSE , Replaced By: A3909970682
999
HOSE , Replaced By: A3909970682
999
HOSE , Replaced By: A3909970682
999
INTAKE PIPE ,037585, Replaced By: A4471300101
999
SCREW PLUG AIR COMPRESSOR INTAKE POINT ON INTAKE MANIFOLD
999
SCREW PLUG , Replaced By: N000908026008
999
HOLLOW SCREW SUCTION LINE TO OIL PUMP
