Поз.
Артикул
Описание
5

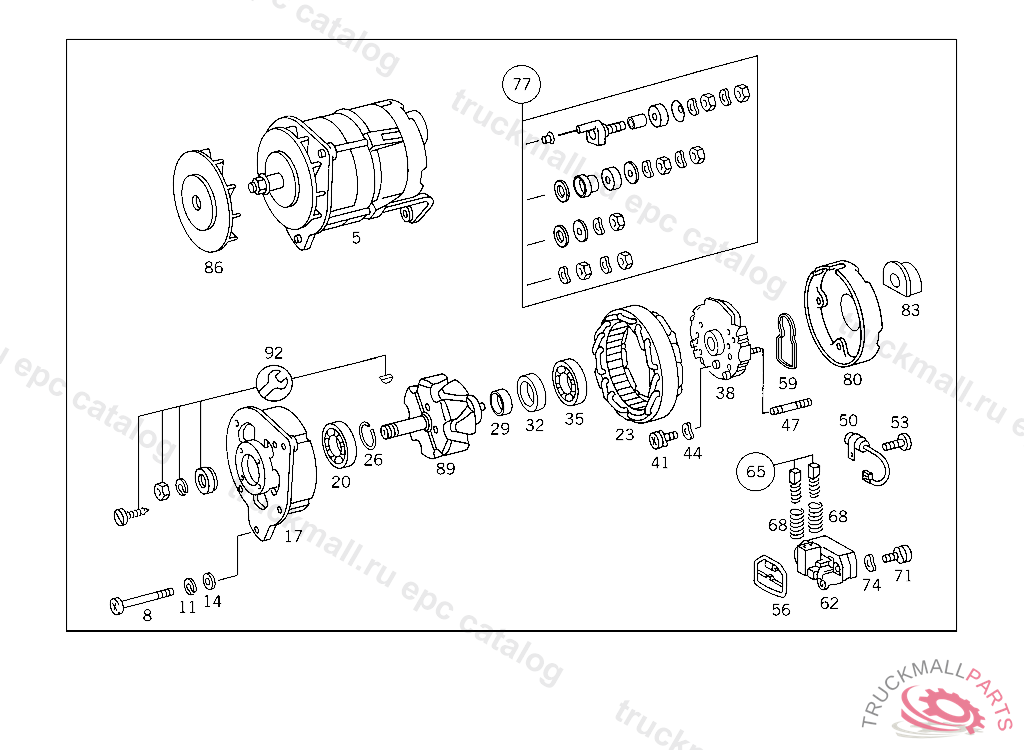

ALTERNATOR28V/140A
5
ALTERNATOR , Replaced By: A0111545002
8
SCREW
11
LOCK WASHER
14
WASHERTO 008 154 78 02
17
BEARING
20
BALL BEARING
23
EXCITATION COILTO 011 154 50 02, 008 154 78 02
23
COIL
26
SNAP RING
29
SPACER RING
32
SEAL RING
35
CYLINDR. ROLLER BEARING
38
RECTIFIERTO 009 154 08 02,008 154 78 02
41
SCREW
41
SCREW T-FITTING TO BRACKET M4X25
44
SPRING WASHER ALTERNATOR CONNECTION D+
47
STUD
50
CONDENSER
53
SCREW APPARATUS PLATE TO CAB,K 062140
56
GASKET
59
GASKET
62
REGULATOR AND CUT-OUT
65
CARBON BRUSH SETTO 008 154 78 02
68
SPRING
71
SCREW REGULATOR MOUNTING TO 009 154 07 02
71
SCREW , Replaced By: N007985004130
74
SPRING WASHER ALTERNATOR CONNECTION D+
77
REPAIR KIT TERMINAL
80
COVER
83
BOOTTO 008 154 78 02
86
FAN
86
FANTO 011 154 50 02
89
ROTOR
92
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
