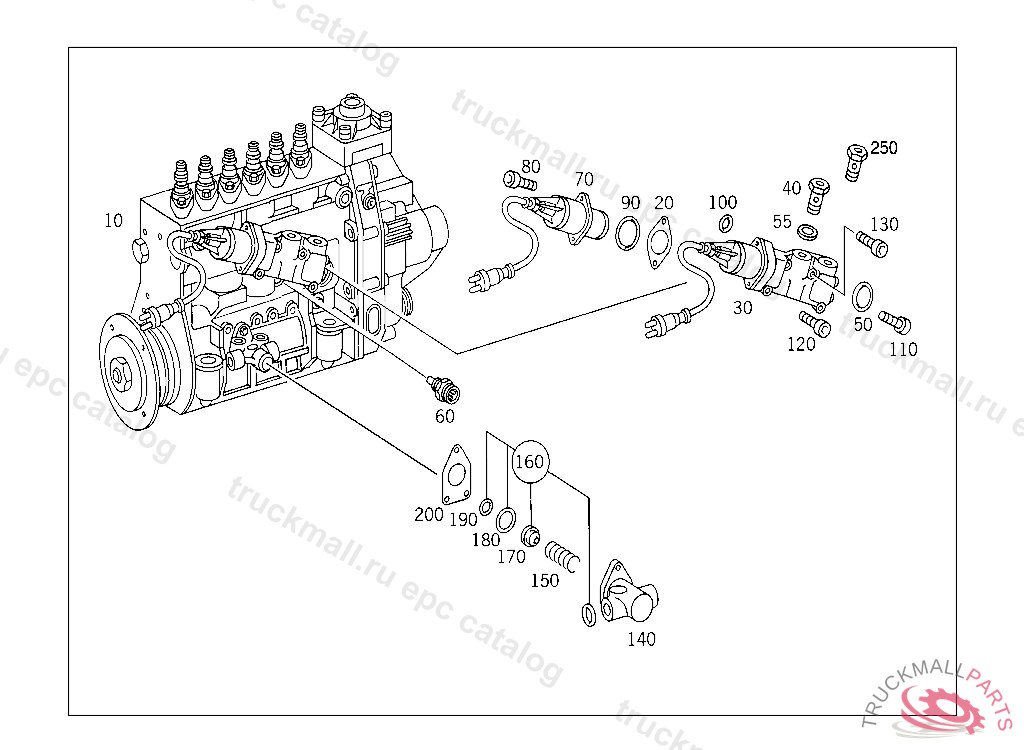

07 INJECTION SYSTEM
030 INJECTION PUMP IL. 2

Mercedes A0019904812 - Болт

OM 447 HLA 447.968 EURO II

07 INJECTION SYSTEM - 030 INJECTION PUMP IL. 2

Поз.
Артикул
Описание
10
A0250745702
INJECTION PUMP
20
A0000747852
SPACER WASHER0.10 MM
20
A0000748552
SPACER WASHER0.80 MM
20
A0000748952
SPACER WASHER1.20 MM
20
A0000749052
SPACER WASHER1.30 MM
20
A0000749652
SPACER WASHER1.90 MM
20
A0000749352
SPACER WASHER1.60 MM
20
A0000748152
SPACER WASHER0.40 MM
20
A0000749452
SPACER WASHER1.70 MM
20
A0000748452
SPACER WASHER0.70 MM
20
A0000747952
SPACER WASHER0.20 MM
20
A0000748652
SPACER WASHER0.90 MM
20
A0000749152
SPACER WASHER1.40 MM
20
A0000748752
SPACER WASHER1.00 MM
20
A0000748352
SPACER WASHER0.60 MM
20
A0000749752
SPACER WASHER2.00 MM
20
A0000749552
SPACER WASHER1.80 MM
20
A0000748052
SPACER WASHER0.30 MM
20
A0000748252
SPACER WASHER0.50 MM
20
A0000748852
SPACER WASHER1.10 MM
20
A0000749252
SPACER WASHER1.50 MM
30
A0000700292
SHUTOFF DEVICE
30
A0000700092
SHUT-OFF DEVICE , Replaced By: A0000700292
40
A0000749984
VALVE (OVERFLOW VALVE), NOT USED
50
A0269971048
SEAL RING23.5X2.5
50
A0229979148
SEAL RING , Replaced By: A0269971048
55
N007603016301
SEAL RING AT TANK
60
A0075422417
SENDER UNIT TEMPERATURE SENSOR, NOT USED
60
A0031538428
SENDER UNIT COOLING WATER
60
A0041530428
SENDER UNIT COOLING WATER
70
A0000744788
SOLENOID
80
A0000740428
SET SCREWTO A 025 074 88 02
90
A0039976248
SEAL RING
100
A0269971148
SEAL RING
100
A0229973748
SEAL RING , Replaced By: A0269971148
110
A0019905012
SCREW
120
A0019904912
SCREW
130
A0019904812
SCREW
140
A0000903150
FUEL PUMP PARTS KIT
150
A0059939201
SPRING
160
A0000900610
VALVE PARTS KIT
170
A0129972948
SEAL RING
180
A0129972848
SEAL RING
190
A0149970048
SEAL RINGBOSCH
200
A0010742280
GASKET FUEL PUMP TO INJECTION PUMP, FROM ENGINE 399032 YEAR OF MANUFACTURE 1995
250
A0000749984
VALVE (OVERFLOW VALVE), NOT USED
999
A0229973848
SEAL RING
999
A0219973947
SEAL RING
999
A0125422117
SENDER UNIT
999
A0099812201
CYLINDR. ROLLER BEARING
999
A0099812101
CYLINDR. ROLLER BEARING
999
A0069937501
SPRING , NOT USED
999
A0069937401
SPRING
999
A0020740476
WASHER1.25 MM
999
A0010747122
PUMP ELEMENT
999
A0010746376
WASHER2.80 MM
999
A0010746276
WASHER2.75 MM
999
A0010746176
WASHER2.70 MM
999
A0010745976
WASHER2.60 MM
999
A0010745876
WASHER2.55 MM
999
A0010745776
WASHER2.50 MM
999
A0010745676
WASHER2.45 MM
999
A0010745576
WASHER2.40 MM
999
A0010745476
WASHER2.35 MM
999
A0010745376
WASHER2.30 MM
999
A0010745276
WASHER2.25 MM
999
A0010745176
WASHER2.20 MM
999
A0010745076
WASHER2.15 MM
999
A0010744976
WASHER2.10 MM
999
A0010744876
WASHER2.05 MM
999
A0010744776
WASHER2.00 MM
999
A0010744676
WASHER1.95 MM
999
A0010744576
WASHER1.90 MM
999
A0010744476
WASHER1.85 MM
999
A0010744376
WASHER1.80 MM
999
A0010744276
WASHER1.75 MM
999
A0010744176
WASHER1.70 MM
999
A0010744076
WASHER1.65 MM
999
A0010743976
WASHER1.60 MM
999
A0010743876
WASHER1.55 MM
999
A0010743776
WASHER1.50 MM
999
A0010743676
WASHER1.45 MM
999
A0010743576
WASHER1.40 MM
999
A0010743476
WASHER1.35 MM
999
A0010743376
WASHER1.30 MM
999
A0010743276
WASHER1.20 MM
999
A0010743176
WASHER1.15 MM
999
A0010743076
WASHER1.10 MM
999
A0010742976
WASHER1.05 MM
999
A0010742876
WASHER1.00 MM
999
A0010740384
VALVE
999
A0009900005
STUD , Replaced By: A0009909505
999
A0000784369
FITTING
999
A0000745126
CONTROL RACK
999
A0000745026
CONTROL RACK
999
A0000744459
SEAL RING
999
A0000743229
TAPPET
999
A0000741746
BEARING
999
A0000741472
NUT
999
A0000740837
COVER LATERAL
