Mercedes N007985006580 - Болт

OM 447 HLA 447.968 EURO II

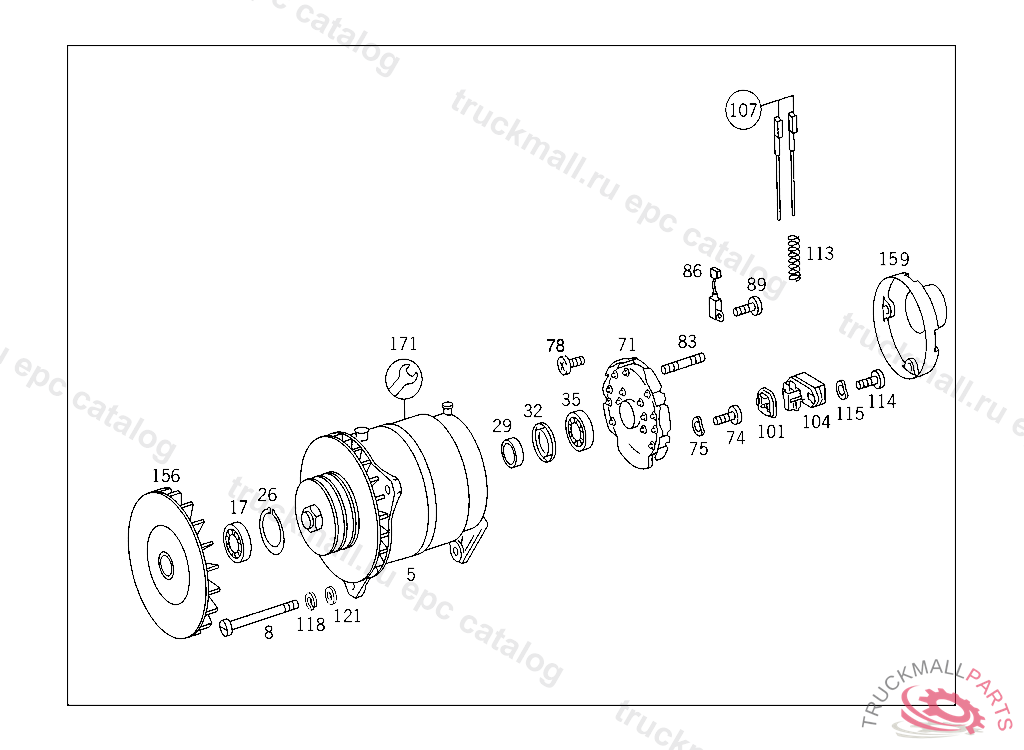

15 ENGINE ELECTRICAL EQUIPMENT - 030 ALTERNATOR

Поз.
Артикул
Описание
5
A0111545002
ALTERNATOR28V/140A
8
A0009907721
SCREW
17
A0059812125
BALL BEARING
26
N009045030000
SNAP RING
29
A0001540051
SPACER RING
32
A0069977447
SEAL RING
35
A0049811401
CYLINDR. ROLLER BEARING
71
A0011540816
RECTIFIERTO 009 154 08 02,008 154 78 02
78
A0009907221
SCREW
86
A0011566701
CONDENSER
89
N007985006580
SCREW APPARATUS PLATE TO CAB,K 062140
101
A0001541180
GASKET
104
A0021549606
REGULATOR AND CUT-OUT
107
A0001548614
CARBON BRUSH SETTO 008 154 78 02
114
A0009907521
SCREW REGULATOR MOUNTING TO 009 154 07 02
118
A0009906147
LOCK WASHER
121
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
121
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
156
A0011550818
FANTO 011 154 50 02
159
A4071540165
COVER
171
A0001501672
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
