Поз.
Артикул
Описание

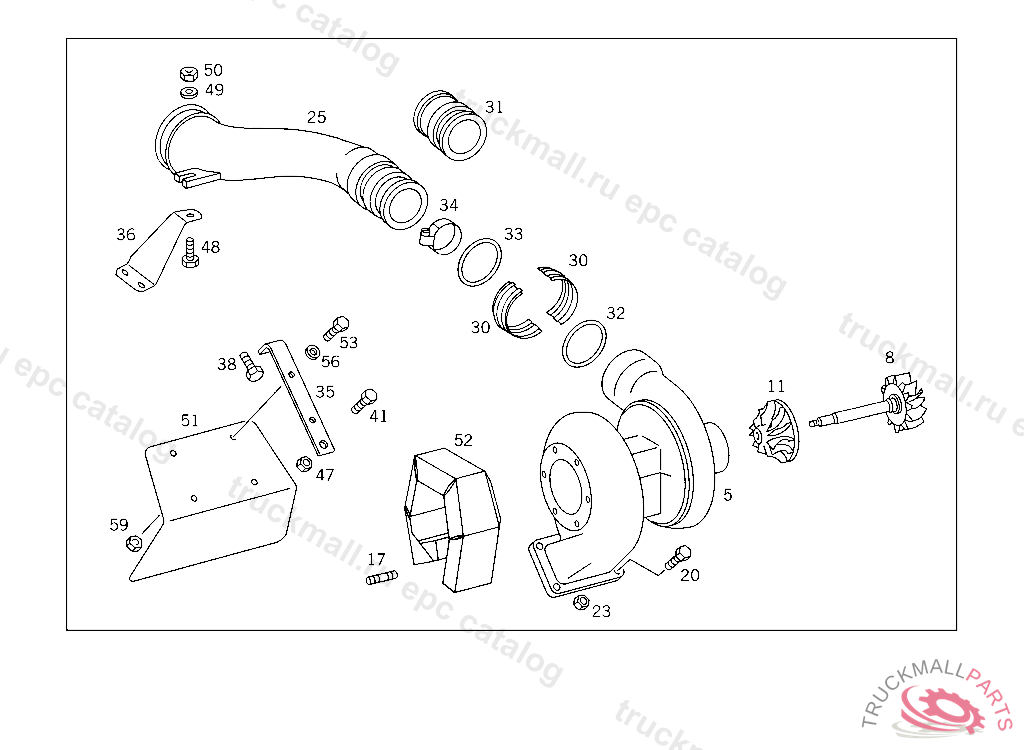

5
TURBOCHARGER
23
NUT END PIECE TO EXHAUST PIPE
25
CHARGING AIR LINE (CHARGE AIR PIPE)
30
CONNECTOR TURBOCHARGER TO PIPE ELBOW
32
SEAL RING
34
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
34
CLAMP , Replaced By: A0059972990
35
BRACKET EXHAUST GAS TURBOCHARGER
36
BRACKET
38
SCREWM 10X20
41
SCREW , Replaced By: N304017010047
41
SCREW CONNECTOR TO REAR SHIFTING ROD
47
NUT END PIECE TO EXHAUST PIPE
48
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
48
SCREW BRACKET TO SIDE MEMBER M10X35
49
WASHER STRUT TO CROSS MEMBER
50
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
NUT , Replaced By: N913023010002
51
SCREENING EXHAUST MANIFOLD
53
SCREW CLAMP TO BRACKET AND TO PIPE
56
WASHER EXHAUST MUFFLER TO STRAP
56
WASHER , Replaced By: N000125008443
59
NUT
