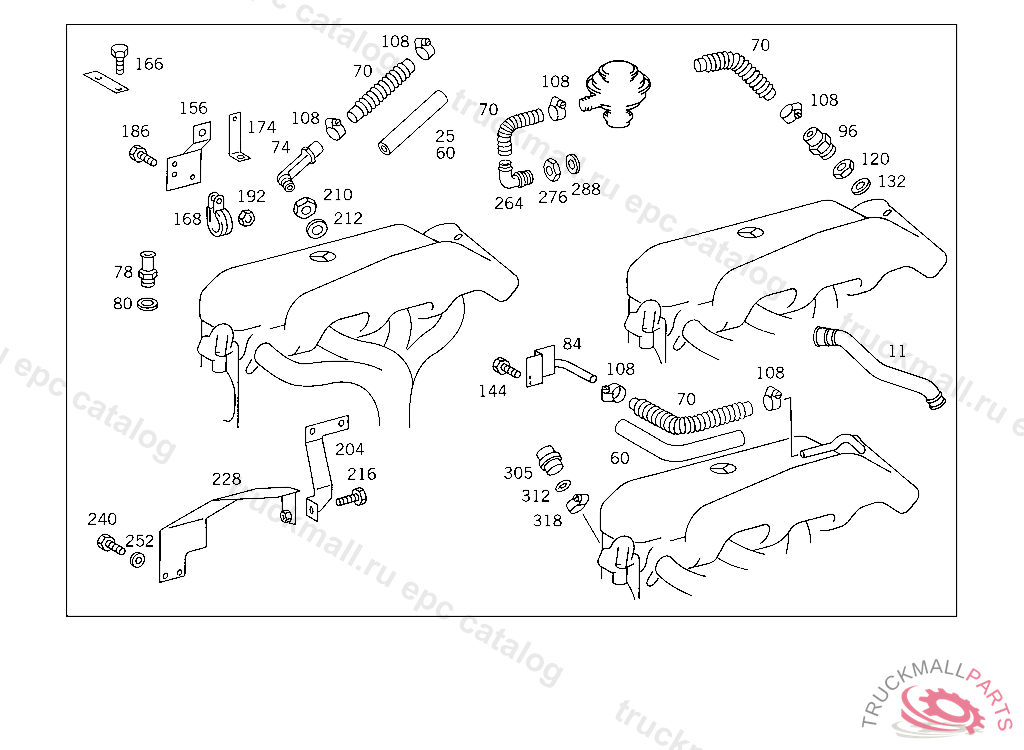

Поз.
Артикул
Описание
11
HOSE CONNECTING HOSE OF BREATHER LINES, FROM ENGINE 255338 YEAR OF MANUFACTURE 1992
25
HOSE FROM BREATHER VALVE CONNECTION TO AIR INTAKE PIPE
60
HOSE BREATHER VALVE CONNECTION
60
HOSE FROM BREATHER VALVE CONNECTION TO AIR INTAKE PIPE
60
HOSE INTAKE PIPE TO BREATHER PIPE,OM 352
60
HOSE INTERMEDIATE PIPE TO INTAKE PIPE SOCKET
60
HOSE , Replaced By: A4030181882
60
HOSE , Replaced By: A3520182182
70
HOSE , Replaced By: A3909970682
70
HOSE
70
HOSE , Replaced By: A3909970682
70
HOSE340 MM
70
HOSE FROM CHARGING AIR INTERCOOLER TO AIR INTAKE PIPE 400 MM
70
HOSE FROM AIR CLEANER TO AIR COMPRESSOR
70
HOSE , Replaced By: A3909970682
70
HOSE
70
HOSE DEAERATOR LINE TO INTAKE MANIFOLD, ORDER BY THE METER
70
HOSE HOSE TO AIR INTAKE PIPE & TO AIR COMPRESSOR & ENGINE BREATHER,RESP., ORDER BY THE METER
74
PIPE ELBOW , UP TO ENGINE 432713 YEAR OF MANUFACTURE 1996, Replaced By: A3661870224, +001A3661800822, +001A3669970382, +002A0069970490
74
PIPE ELBOW , FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
78
FITTING INTAKE MANIFOLD
78
FITTING AT AIR COMPRESSOR
80
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
80
SEAL RINGTO 376 131 74 01
84
INTAKE PIPE AT CYLINDER HEAD, NOT USED
96
FITTING AT AIR COMPRESSOR
108
CLAMP25-40X13 MM
108
CLAMP HOSE FASTENING 28-35 MM,V 207570
108
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
108
CLAMP FROM BREATHER VALVE CONNECTION TO AIR INTAKE PIPE
108
CLAMP , Replaced By: A0069974290
108
CLAMP , Replaced By: A0069970490
108
LOOM TIE , Replaced By: N000000000668
120
NUT SUCTION LINE TO OIL PUMP
132
SEAL RING LINE TO OIL PUMP
144
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
144
HEXAGON HEAD BOLT BRACKET TO BRACKET
156
BRACKET HOSE TO INTAKE MANIFOLD
166
HEXAGON HEAD BOLT. SCREW OIL SEPARATOR TO TRANSMISSION CASE
168
CLAMP HOSE TO FLANGE AND TO VALVE
168
CLAMP LINE MOUNTING
168
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
168
CLAMP
174
BRACKET , Replaced By: A4420981839
174
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 962863, Replaced By: A4420183640
174
BRACKET , Replaced By: A4420981239
174
BRACKET , Replaced By: A6205240340
174
BRACKET COMPRESSED AIR LINES
174
BRACKET LINE MOUNTING
174
BRACKET BREATHER PIPE
174
BRACKET FUEL LINES TO TRANSMISSION
174
ANGLE LINE MOUNTING
174
BRACKET BREATHER PIPE,702492
174
BRACKET BRACKET TO TRANSVERSE CHARGING AIR PIPE
186
SCREW STOP TO BATTERY CASE
186
SCREW CABLE HARNESS MOUNTING
186
SCREW CLAMP TO BRACKET AND TO PIPE
186
SCREW COVER PLATE TO BRACKET
192
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
192
NUT
192
NUT ENGINE MOUNTING M8
192
HEXAGON NUT. NUT , Replaced By: N913023008002
192
NUT , Replaced By: N304032008006
192
NUT BALL PIVOT TO LEVER
204
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 108103/90, Replaced By: A3660901041
204
BRACKET SCREENING PLATE, FROM ENGINE 234538 YEAR OF MANUFACTURE 1992 UP TO ENGINE 351138 YEAR OF MANUFACTURE 1994
210
NUT , Replaced By: N080705026003
210
NUT 3/2-WAY VALVE TO CAB,4 685151
210
NUT SUCTION LINE TO OIL PUMP
212
SEAL RING LINE TO OIL PUMP
212
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
216
SCREW BRACKET TO PLATE
228
SCREENING PLATE , Replaced By: A3660900634
228
SCREENING PLATE ,234537/92
240
SCREW PIPE CLAMP
240
SCREW , Replaced By: N304017008021
252
WASHER , Replaced By: N000125008443
252
WASHER EXHAUST MUFFLER TO STRAP
264
PIPE BEND AT AIR COMPRESSOR
276
NUT. HOLLOW SCREW
276
NUT SUCTION LINE TO OIL PUMP
288
SEAL RING LINE TO OIL PUMP
288
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
305
CONNECTOR BETWEEN TAPPET CHAMBER COVER AND OIL SEPARATOR
312
SEAL RING
318
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
999
SCREW SUPPORT WITH EDDY CURRENT BRAKE TO SUPPORT
999
SCREW PLUG TO PLUG CORE HOLES, AS REQUIRED M 26X1.5
999
BRACKET ELECTRIC CABLE MOUNTING
999
BREATHER PIPE CYLINDER CRANKCASE BREATHING
999
LOCKING CAP , Replaced By: A3845067033
999
BRACKET BREATHER LINES
