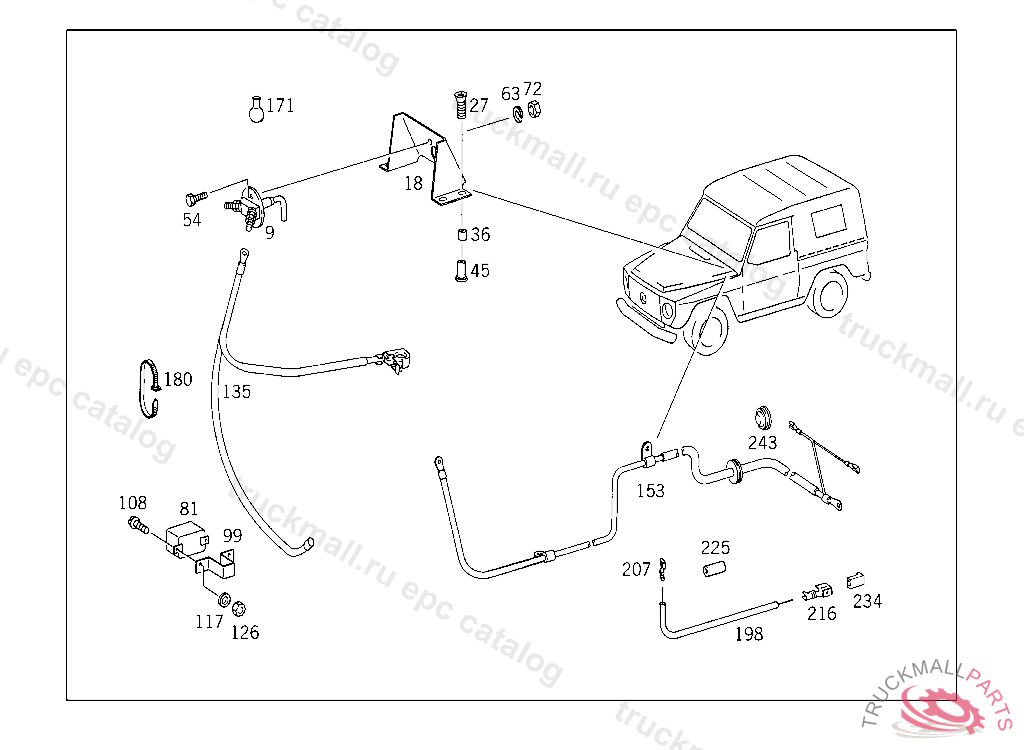

Поз.
Артикул
Описание
9
SWITCH (BATTERY MASTER SWITCH)
18
BRACKET BATTERY MASTER SWITCH, NOT USED
27
SCREW
36
SLEEVE BRACKET MOUNTING, NOT USED
45
RIVETED NUT BRACKET MOUNTING, NOT USED
54
SCREW , Replaced By: N304017006018
54
SCREW COVER PLATE TO COVER PLATE M 6 X 12
63
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
72
NUT BALL PIVOT TO LEVER
81
RELAY
81
RELAY
99
BRACKET
108
SCREW
117
WASHER BOOT TO CAB FLOOR
117
WASHER , Replaced By: N000433005304
126
NUT TACHOGRAPH TO BRACKET
135
GROUND STRAP FROM BATTERY TO BATTERY MASTER SWITCH, NOT USED
135
GROUND STRAP , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 037334, Replaced By: A4615400741
135
GROUND STRAP FROM BATTERY TO MASTER SWITCH
153
GROUND STRAP , Replaced By: A4605401341
153
GROUND STRAP BODY 24 V
171
BOOT BATTERY MASTER SWITCH
180
LOOM TIE LINE MOUNTING 280 MM
198
ELECTRIC CABLE
207
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
207
PIN BUSHING RADIO SET
216
PLUG DISTRIBUTOR2.50 MM2
225
GROMMET
234
PIN BUSHING HOUSING UNIPOLAR
243
GROMMET
999
KEY , Replaced By: A0005451635
999
KEY
999
BRACKET
999
LOOM TIE , Replaced By: A0019978390
999
PIN BUSHING , Replaced By: A0015451326
999
GROUND STRAP FROM BATTERY TO BATTERY MASTER SWITCH
999
BRACKET
999
BRACKET
999
SCREW , Replaced By: N304017006018
