Поз.
Артикул
Описание

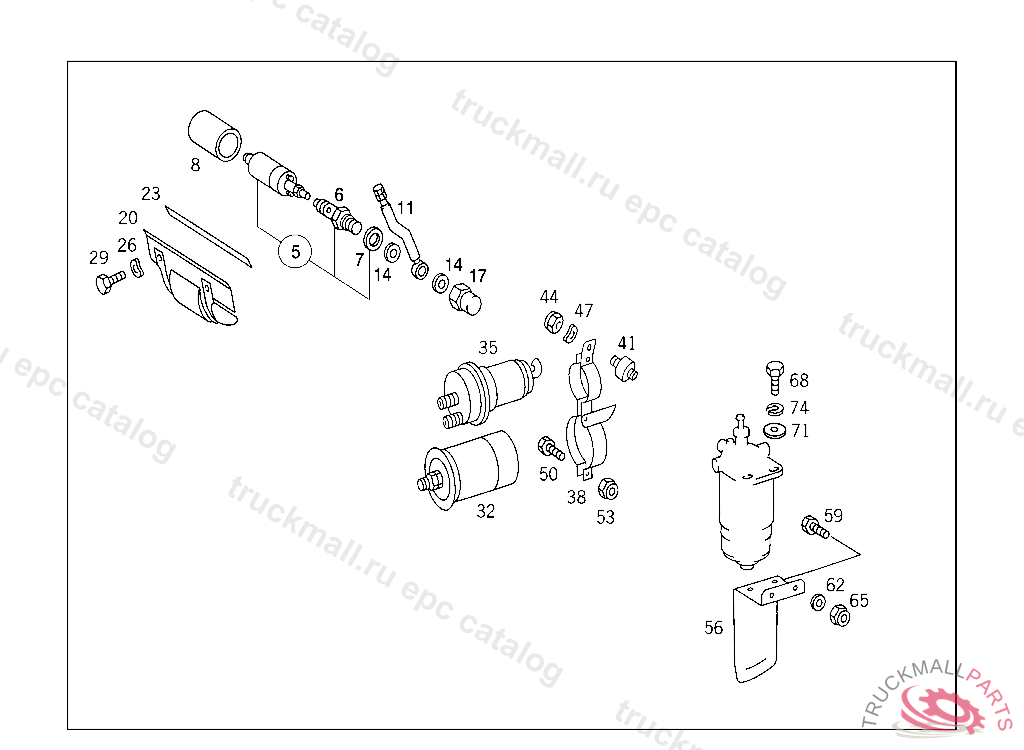

5
FUEL PUMP ,C 227244 , J 081288
6
VALVE ,F 021692
7
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
8
PROTECTIVE COVER FUEL PUMP
11
FUEL HOSE FROM FUEL PUMP TO FUEL FILTER
14
SEAL RING LINE CONNECTION
17
NUT
20
PROTECTIVE PLATE FUEL PUMP TO FUEL TANK
23
SEALING STRIP PROTECTIVE PLATE, ORDER BY THE METER
26
SPRING WASHER LICENSE PLATE TO BRACKET
29
SCREW , Replaced By: N304017006034
29
SCREW COVER PLATE TO COVER PLATE M 6 X 10
29
SCREW EXHAUST BRAKE SEPARATION POINT
32
FUEL FILTER , NOT FOR AUSTRALIA
32
FUEL FILTER , Replaced By: A0024774501
32
FUEL FILTER
35
ACCUMULATOR , 107.024 025530 107.044 053366 116.032,033 089514
38
BRACKET FUEL FILTER TO FUEL ACCUMULATOR
41
BUFFER BRACKET TO FRAME
44
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
44
NUT , Replaced By: N910113006001
47
SPRING WASHER LICENSE PLATE TO BRACKET
50
SCREW COVER PLATE TO BRACKET
50
SCREW , Replaced By: N304017005011
53
NUT DIODE TO BRACKET,5 922534
