Mercedes A4609978282 - Шланг

G 270 CDI 461.302 FROM CHASSIS 144791

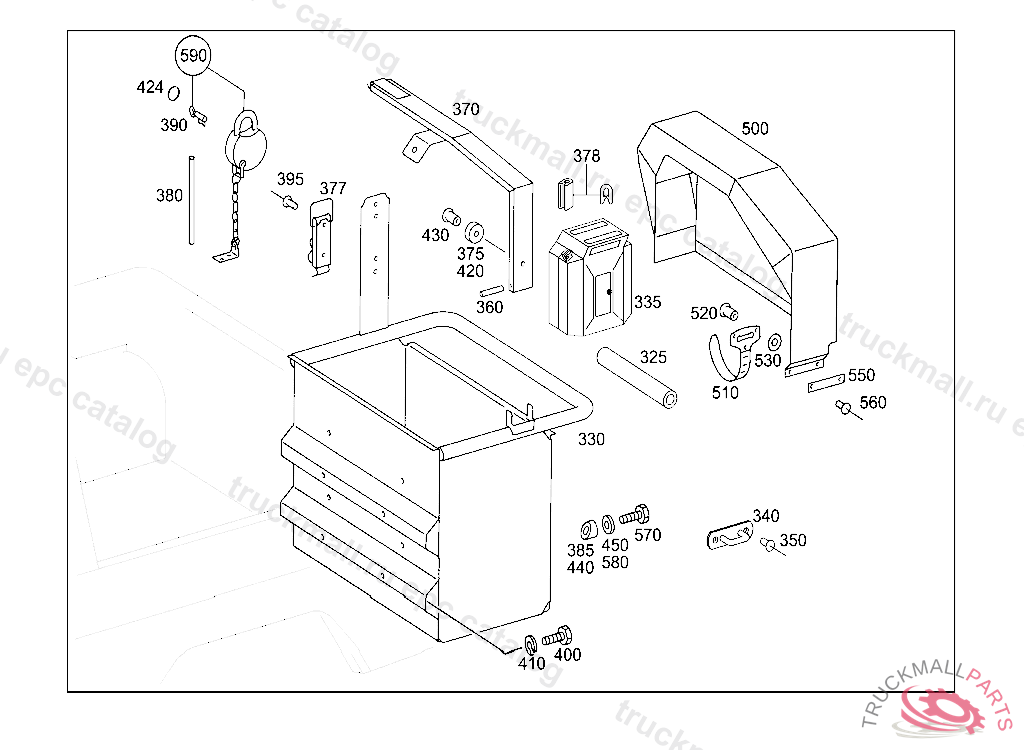

64 REAR END - 045 REAR PANEL, OPEN VEHICLE IL. 2

Поз.
Артикул
Описание
325
A4618630191
REST AT CLAMP
330
A4618900110
FIXTURE AT REAR END
330
A4618600310
FIXTURE
335
A4848990248
JERRICAN
340
A4607910330
TARPAULIN BOW
350
N007337004015
BLIND RIVET. RIVET BRACKET TO SUPPORT , 4X10
360
A4619915301
PIN
370
A4618900332
BOW FUEL TANK MOUNTING
375
A3098960097
PAD
377
A4619975095
FASTENER , ONLY APPLICABLE TO MODELS:460.790/791/792
378
A0019877625
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
380
A4609978282
HOSE
385
A0019876840
RUBBER BUFFER TO RUN LEFT AND RIGHT
390
A4608930006
KEY AT FASTENER
395
N910002004214
RIVET FUEL TANK MOUNTING 4,8X10,29
400
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
410
N912004008103
LOCK WASHER BRAKE LINE TO REAR AXLE, NOT USED
420
A3098960097
PAD
424
A0009880266
RING
430
N000000005645
RIVET CABLE CONDUIT
440
A0009878440
RUBBER BUFFER FUEL TANK MOUNTING
450
N000000003718
WASHER ATTACHMENT OF ELECTRIC LEAD AND GROUND STRAP ON ALTERNATOR
500
A4618900508
COVER FOR BRACKET
510
A4617780276
STRAP TARPAULIN, LEFT
520
N007331004266
RIVET
530
A4617902035
COVER REAR PANEL TARPAULIN
550
A4618991911
PLATE FOR BRACKET
560
A0019904997
RIVET SPRING TO FLAP
570
N304017005003
HEXAGON HEAD BOLT. SCREW POWER CYLINDER TO BRACKET
580
N000433005304
WASHER BOOT TO CAB FLOOR
580
A4619906240
WASHER BUFFER TO BRACKET
590
A0008900589
FASTENER (PADLOCK)
