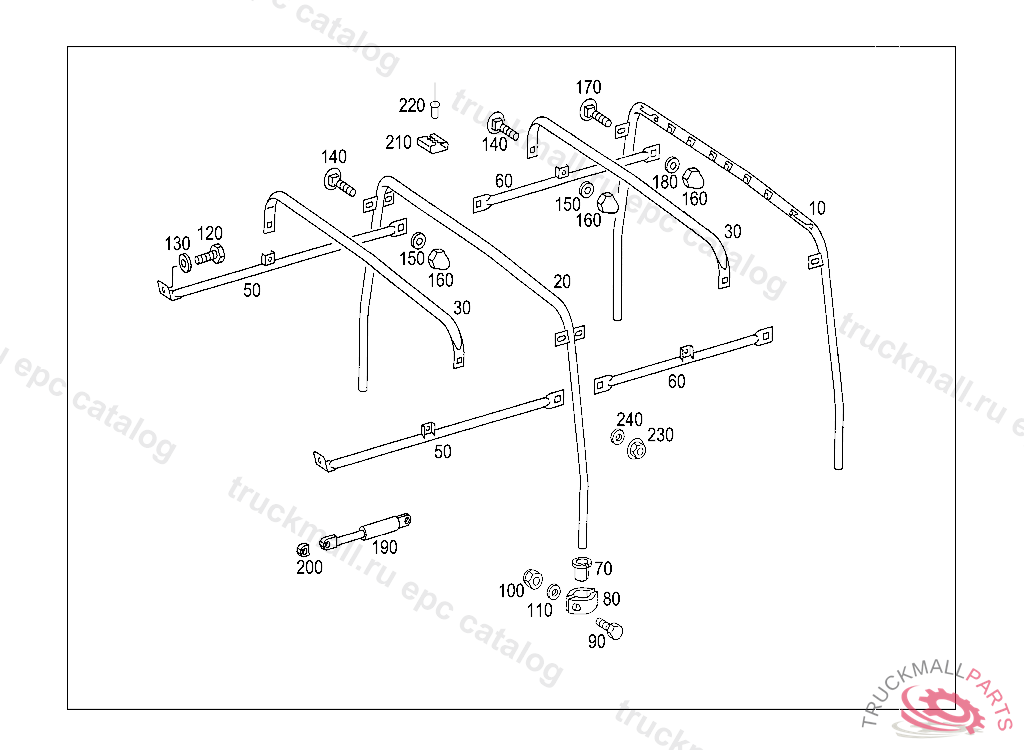

Поз.
Артикул
Описание
10
BOW REAR
10
BOW REAR
10
BOW REAR
20
BOW CENTRAL
20
BOW SOFT-TOP,FRONT/SEPARATING TARPAULIN BEHIND DRIVER'S SEAT
20
BOW CENTRAL
20
BOW CENTRAL
30
BOW FRONT
30
BOW CENTRAL
30
BOW FRONT
50
STAY
50
STAY
50
STAY FRONT LEFT
50
STAY FRONT RIGHT
50
STAY FRONT LEFT
50
STAY FRONT RIGHT
50
STAY FRONT RIGHT, 6431QFT461A3230 BRONZE GREEN DULL MATT
50
STAY FRONT LEFT, 6431QFT461A3230 BRONZE GREEN DULL MATT
50
STAY FRONT RIGHT
60
STAY REAR
70
SPACER TUBE HEIGHT ADJUSTMENT OF BOW
80
CLAMP CLAMP, ONE-HOLE
90
BOLT. SCREW TRANSFER CASE SUSPENSION
90
SCREW VALVE TO BRACKET M 8X55
100
HEXAGON NUT. NUT SPARE WHEEL CARRIER TO REAR END DOOR
110
WASHER PUMP TO CONSOLE
120
SCREW BRACKET TO CONSOLE
130
WASHER P.T.O. TO TRANSMISSION
140
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X20
150
WASHER PUMP TO CONSOLE
160
NUT
160
CAP NUT BOW AND SUPPORTS FOR SOFT TOP AT REAR
170
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X20
180
WASHER PUMP TO CONSOLE
190
SPRING MIRROR SWIVEL TYPE
200
CLIP FOLDING TOP CASE COVER HINGE LEVER AND WHEELHOUSE MOUNTING
210
CLIP SPARE WHEEL CARRIER TO REAR PANEL DOOR
220
RIVET FIXTURE FOR TARPAULIN/SPADE ON FLOOR STEP 4X9X8
230
HEXAGON NUT. NUT SPARE WHEEL CARRIER TO REAR END DOOR
240
WASHER MOUNTING FOR CENTRAL SUPPORT AT DRAUGHT STOP CONNECTOR
