Mercedes N304017006027 - Болт

G 270 CDI 461.302 FROM CHASSIS 144791

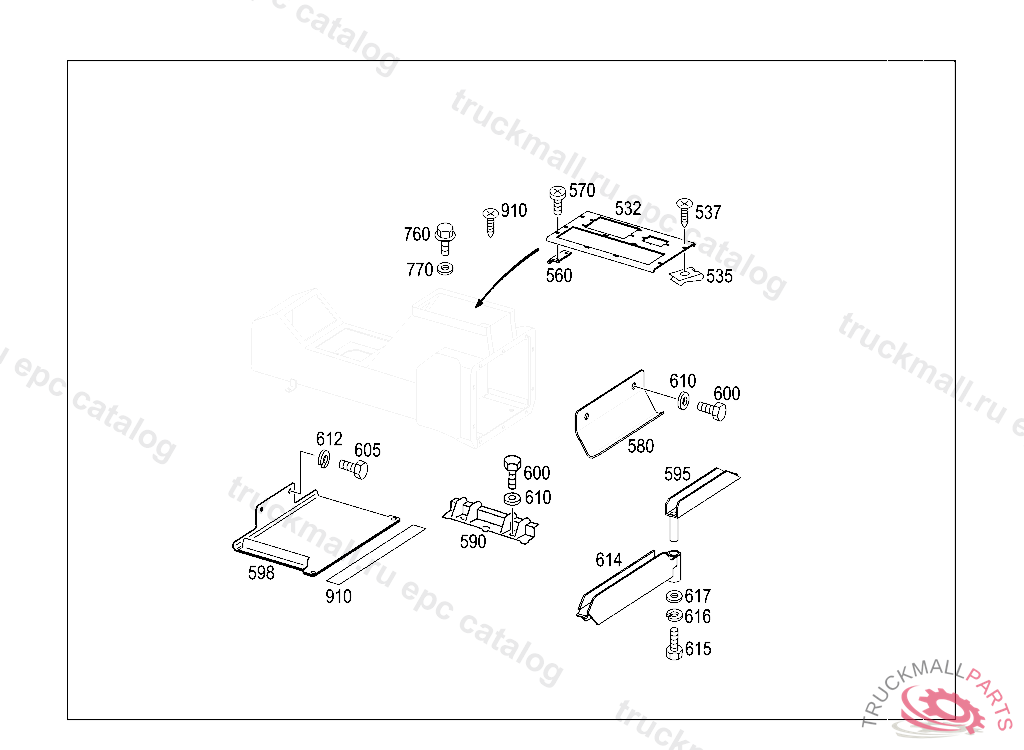

68 PANELLING - 250 CENTRAL CONSOLE IL. 3

Поз.
Артикул
Описание
532
A4616830123
PLATE FOR FUSE BOX PARCEL SHELF
535
A1409941045
LOCK FUEL LINE
537
N000000000453
SHEET METAL SCREW MODULE TO HOUSING
560
A4616800012
ANGLE FOR FUSE BOX PARCEL SHELF
570
N000000002241
HEXALOBULAR BOLT MOUNTING PARTS M4X16
570
A4616890037
PANEL
580
A4616892508
COVER HEATING
580
A4616804431
CONSOLE BATTERY MOUNTING
580
A4616894708
COVER HEATING
590
A4616831014
BRACKET BATTERY FASTENING
590
A4606280414
BRACKET REAR
595
A4616801214
BRACKET BATTERY CASE
598
A4616804431
CONSOLE BATTERY MOUNTING
600
N304017006016
SCREW PUMP TO BRACKET
605
N304017006027
SCREW APPARATUS PLATE M 6X45
610
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
610
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
612
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
614
A4616800133
RETAINING BRACKET BATTERY FASTENING
615
N304017006016
SCREW PUMP TO BRACKET
616
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
617
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
760
N914129005001
SCREW RELAY
770
A4609908440
WASHER IN EQUIPMENT BOX
910
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
