Mercedes N000000001147 - АВТОЗАПЧАСТЬ

G 270 CDI 461.302 TO CHASSIS 144790

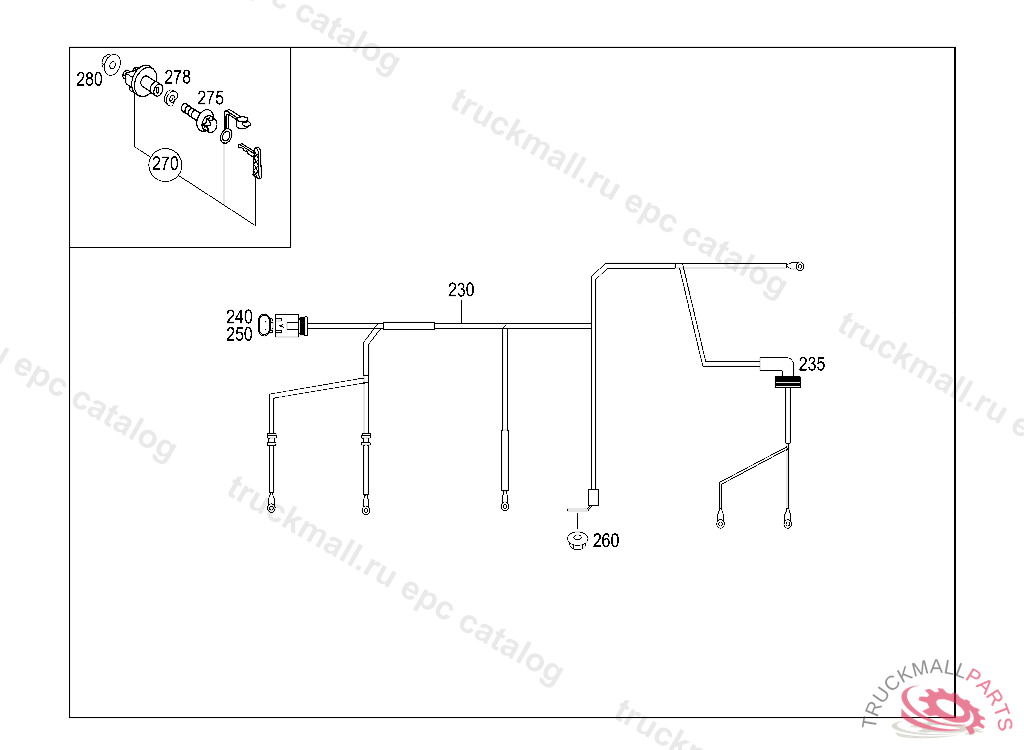

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 030 BATTERY,STARTER/ALTERNATOR CABLE IL. 2

Поз.
Артикул
Описание
230
A4615409234
WIRING HARNESS. CABLE HARNESS STARTING MOTOR/ALTERNATOR/HEATHER BOOSTER
235
A0005460637
GROMMET TO PLUG THE BORES
240
A2105404781
PLUG HOUSING BRAKE LINING WEAR INDICATOR
250
A0005458780
GASKET. BLIND PLUG BLUE
260
A4615420272
NUT FOR SEALED BOLTED CONNECTION,WIRING HARNESS
260
A4615420072
NUT FOR SEALED BOLTED CONNECTION,WIRING HARNESS TO 461 543 03 78
270
A0005457608
SWITCH BATTERY CUT-OUT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
275
N000000001147
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
278
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
280
N304032006004
NUT SPRING-LOADED PUSH ROD
999
A4615409634
CABLE HARNESS BETWEEN THE BATTERIES 24V
