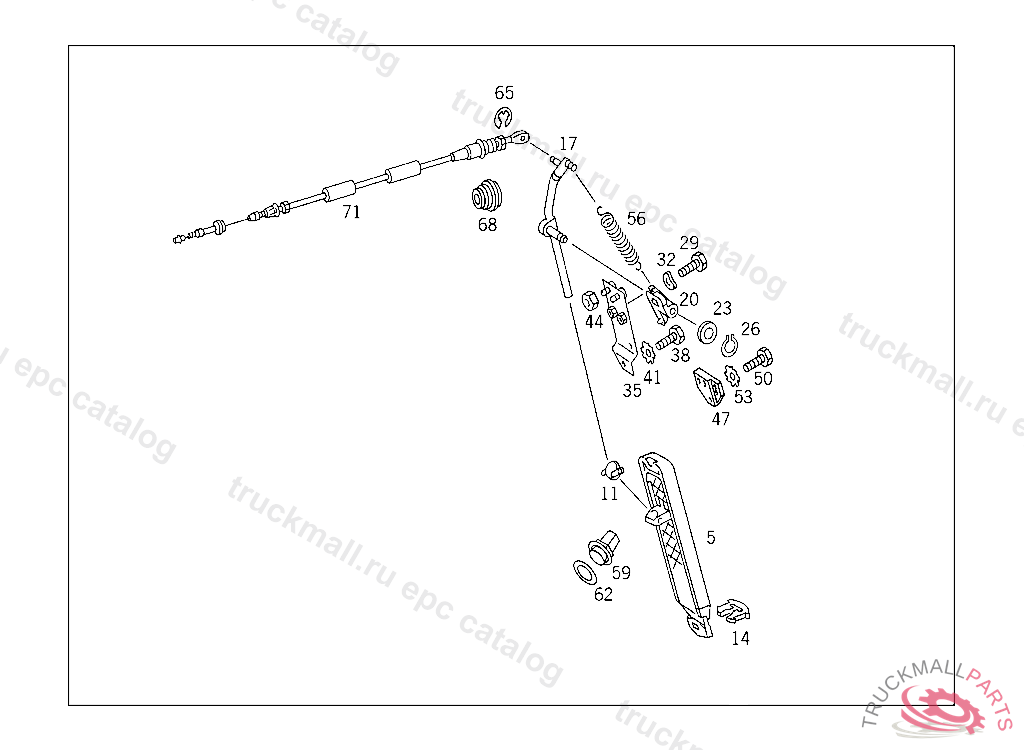

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
11
JOINT ,B 859430
14
CLIP
17
LEVER ACCELERATOR PEDAL
17
LEVER ACCELERATOR PEDAL
17
LEVER , Replaced By: A4613000125
20
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
23
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
26
LOCK RINGTO 000 553 37 01,000 553 39 01,
29
SCREW COVER PLATE TO COVER PLATE M 6 X 10
29
SCREW LICENSE PLATE TO BRACKET
29
SCREW , Replaced By: N304017006020
32
SPRING WASHER LICENSE PLATE TO BRACKET
35
BRACKET FRONT FLOOR
38
SCREW COVER PLATE TO COVER PLATE M 6 X 12
41
SERRATED WASHER BRACKET TO CAB FLOOR,4 411811
44
NUT BALL PIVOT TO LEVER
47
SHIM
50
SCREW LICENSE PLATE TO BRACKET
53
SERRATED WASHER BRACKET TO CAB FLOOR,4 411811
56
SPRING LEVER,823342
56
SPRING
59
KICK-DOWN SWITCH , FROM CHASSIS: 011: 12/52 100001 007,008,015,017: 12/52 200001
62
SEAL RING KICK-DOWN SWITCH
65
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
65
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
68
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
71
WIRE CABLE
71
WIRE CABLE
999
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
