Mercedes
›
CROSS-COUNTRY VEHICLE
›
G 300 CDI
›
461.333 FROM CHASSIS 144791
›

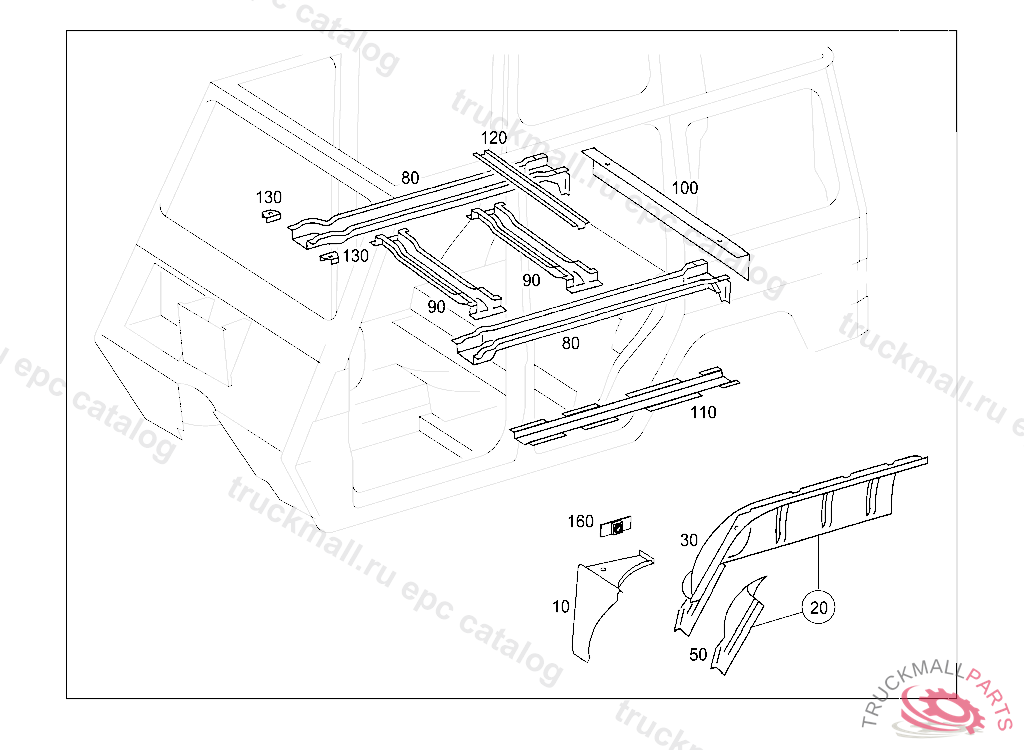

61 SUBSTRUCTURE
›
045 REAR END FLOOR IL. 1
Mercedes A4606101710 - ЛОНЖЕРОН
G 300 CDI 461.333 FROM CHASSIS 144791
61 SUBSTRUCTURE - 045 REAR END FLOOR IL. 1
Поз.
Артикул
Описание
10
A4606102331
CONSOLE SIDE PANEL,RIGHT
10
A4606102231
CONSOLE SIDE PANEL,LEFT
20
A4616102492
WHEELHOUSE REAR RIGHT
20
A4616102992
WHEELHOUSE REAR LEFT
30
A4616103392
WHEELHOUSE REAR LEFT
30
A4606140309
WHEELHOUSE REAR LEFT
30
A4616142809
WHEEL HOUSE REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
30
A4616103492
WHEELHOUSE REAR RIGHT
30
A4616103092
WHEELHOUSE REAR RIGHT
50
A4606180416
REINFORCEMENT REAR RIGHT
50
A4606180316
REINFORCEMENT REAR LEFT
80
A4606101610
SIDE MEMBER LEFT, 20121102 X 20723920130228
80
A4606101710
SIDE MEMBER RIGHT, X 19471620111028
90
A4606120218
PIPE. TUBE
100
A4606120325
REINFORCEMENT REAR CROSS MEMBER
120
A4606180216
REINFORCEMENT FLOOR INSULATION
130
A4616101225
REINFORCEMENT , 20121102 X 20723920130228
160
A4616300745
BRACKET WHEEL ARCH
