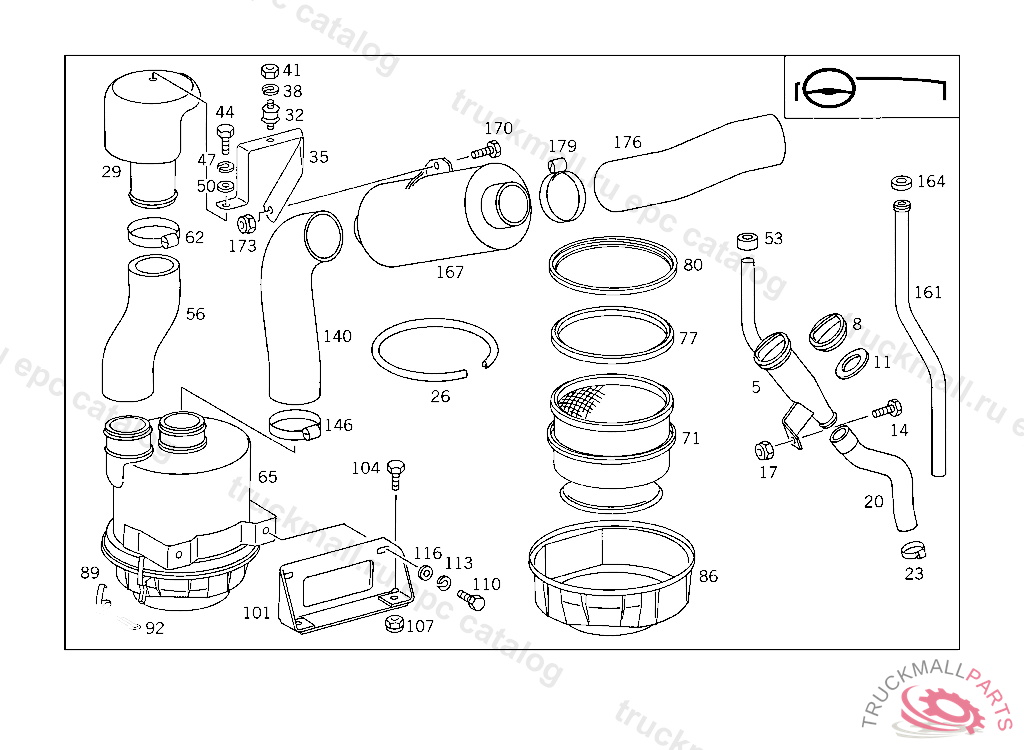

Поз.
Артикул
Описание
5
OIL FILLER NECK
5
OIL FILLER NECK , 007567
8
CAP OIL REFILLING
8
CAP OIL REFILLING
8
CAP OIL REFILLING
8
CAP , Replaced By: A0000180702
11
GASKET , Replaced By: A1020180380
11
GASKET
11
GASKETTO 352 010 01 68
14
SCREW , Replaced By: N304017008016
14
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
NUT , Replaced By: N913004008001
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
HOSE FROM OIL FILTER NECK TO ENGINE,001593
20
HOSE FROM OIL FILTER NECK TO ENGINE
23
CLAMP
23
CLAMP , Replaced By: N000000000670
26
RUBBER SECTION AT LEFT SIDE MEMBER 85 MM
29
AIR INTAKE PIPE , Replaced By: A3095201501
29
AIR INTAKE PIPE
32
RUBBER BUFFER COVERING TO FRAME
32
RUBBER BUFFER , Replaced By: A0019875240
35
BRACKET , Replaced By: A3095282140
35
BRACKET AIR INTAKE
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
41
NUT
44
SCREW , Replaced By: N304017008021
44
SCREW PIPE CLAMP
47
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
50
WASHER EXHAUST MUFFLER TO STRAP
50
WASHER , Replaced By: N000125008443
53
SPACER RING
56
AIR INTAKE PIPE FROM INTAKE PIPE TO AIR CLEANER
62
CLAMP , Replaced By: N000000000674
62
CLAMP HOSE 70-90X13 MM
65
AIR CLEANER , Replaced By: A0110941602
65
AIR CLEANER OIL BATH AIR CLEANER
71
FILTER ELEMENT
77
GASKET
80
GASKET OUTSIDE TO 006 094 00 02,011 094 16 02
80
GASKET
80
GASKET , Replaced By: A0010947880
86
AIR CLEANER
89
FASTENERKNECHT
89
FASTENER , Replaced By: A0000941355
89
FASTENER , Replaced By: A0000941255
89
FASTENER AIR CLEANER BOWL MANN & HUMMEL
89
FASTENER
92
COTTER PINTO 006 094 00 02
101
SUPPORT OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
104
SCREW END PIECE TO EXHAUST PIPE M 10X25
107
NUT , Replaced By: N910113010000
107
NUT STRAP TO BRACKET
110
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
SCREW , Replaced By: N304017008016
113
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
116
WASHER , Replaced By: N000125008443
116
WASHER EXHAUST MUFFLER TO STRAP
140
AIR INTAKE PIPE FROM OIL BATH AIT CLEANER TO INTAKE MUFFLER
146
CLAMP , Replaced By: N000000000674
146
CLAMP HOSE 70-90X13 MM
161
HOSE WATER DRAIN
161
HOSE WATER DRAIN
164
RUBBER RING
167
AIR INTAKE PIPE , Replaced By: A3095280608
167
AIR INTAKE PIPE
167
AIR INTAKE PIPE
170
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
173
NUT , Replaced By: N910113010000
173
NUT STRAP TO BRACKET
176
AIR INTAKE PIPE FROM MUFFLER TO INTAKE FITTING,063637
176
AIR INTAKE PIPE FROM MUFFLER TO INTAKE FITTING,063636
179
CLAMP HOSE 70-90X13 MM
179
CLAMP , Replaced By: N000000000674
999
NUT , Replaced By: N913002008004
999
SHIM ,627510
999
SHIM BODY TO FRAME
999
REINFORCEMENT AIR CLEANER
