Поз.
Артикул
Описание

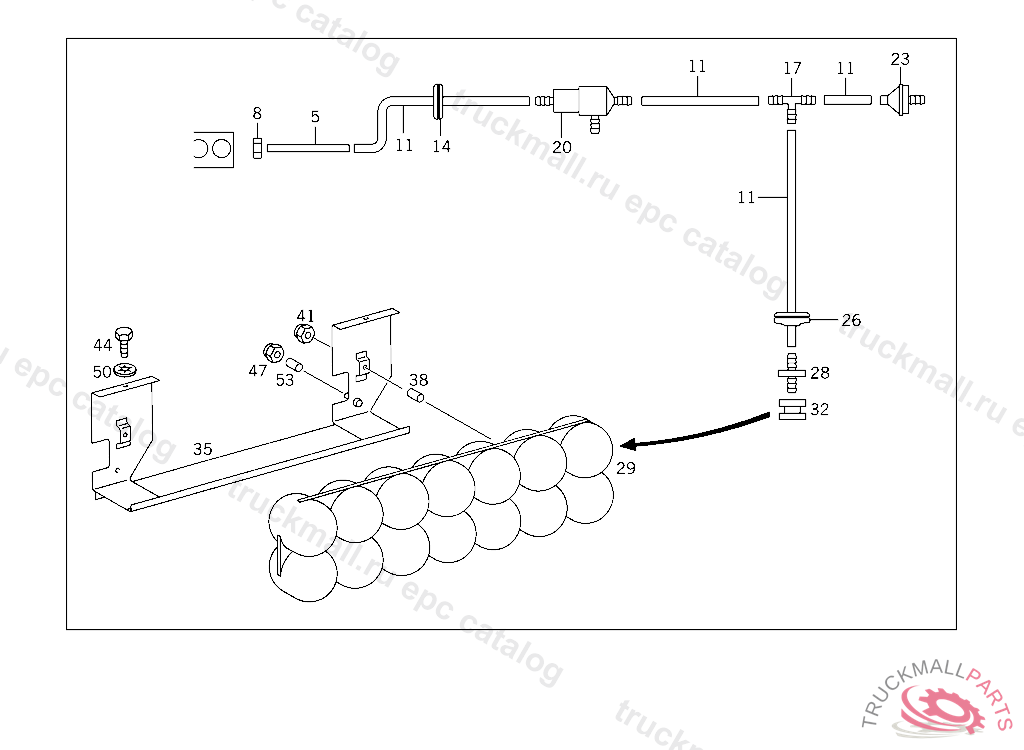

5
LINE VACUUM LINE, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
8
NUT
11
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
14
GROMMET ,D 314239
17
T-FITTING
20
VALVE (CHECK VALVE)
23
VALVE BRAKE BOOSTER ASSEMBLY
23
VALVE (CHECK VALVE), Replaced By: A0004316407
26
GROMMET FOR PASSAGE OF LINE
26
GROMMET
28
CONNECTOR BRAKE BOOSTER ASSEMBLY
29
ACCUMULATOR ,052674
32
GROMMET LINE MOUNTING 19/13 MM
35
BRACKET , 052674 903528
38
SPACER TUBE TWO-WAY VALVE TO BRACKET
41
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
41
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
41
NUT , Replaced By: N913004008001
44
SCREW PUMP TO BRACKET
47
NUT BALL PIVOT TO LEVER
50
LOCK PLATE BRACKET MOUNTING
50
WASHER BRACKET TO LEFT WHEEL ARCH PANEL, Replaced By: N912010006000
53
SPACER TUBE POWER CYLINDER TO LEVER
