Mercedes A4634602224 - Трубка ГУР

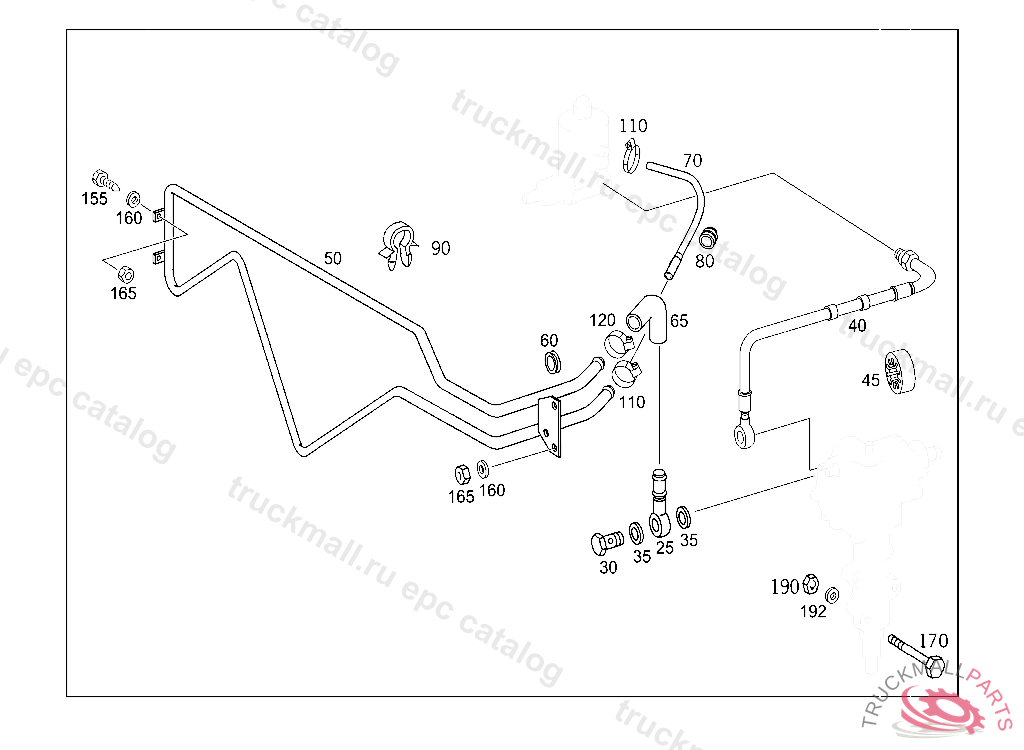

G 500 463.222 FROM CHASSIS 144226

46 STEERING - 063 DIESEL VEHICLES LINE SCOPE

Поз.
Артикул
Описание
25
A4634601124
LINE COOLING LINE
35
N007603016105
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
40
A4639973882
HOSE DELIVERY LINE
45
A1233288981
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
50
A4634602224
LINE COOLING LINE, X 17721620080530
60
A2019975381
GROMMET RIGHT FRONT SIDE MEMBER, A 438645 F 419551
65
A4634660281
HOSE FROM STEERING GEAR ON COOLING LINE
70
A4634660181
HOSE FROM COOLING LINE TO POWER STEERING PUMP, X 16755120060929
80
A4609971781
GROMMET BRAKE CABLE PASSAGE IN CONSOLE
90
A0009955844
CLAMP22.2 MM
110
A0059970190
HOSE CLAMP LINE MOUNTING
120
N916002017100
CLAMP
170
N000000000153
HEXAGON HEAD BOLT STEERING TO FRAME M12X1.5X240
170
N308765012020
HEXAGON HEAD BOLT STEERING TO FRAME M12X160, 20131220
170
N308765012003
HEXAGON HEAD BOLT. SCREW PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
190
N910118012000
HEXAGON NUT CONSOLE TO REAR CROSS MEMBER
192
N000000003737
WASHER
192
N000125013008
WASHER
