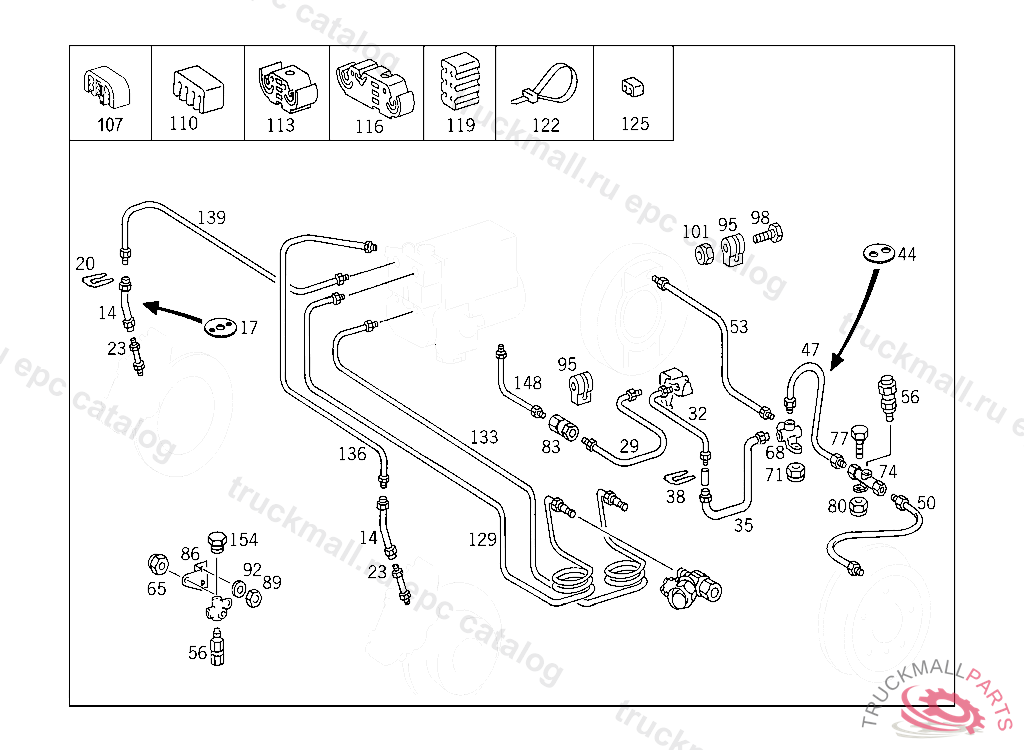

Поз.
Артикул
Описание
14
BRAKE HOSE LEFT AND RIGHT
17
WASHER CABLE HARNESS MOUNTING,P 232588
20
BRACKET BRAKE HOSE TO BRACKET
23
LINE
29
LINE FROM VALVE TO RIGHT REAR WHEEL 3450 MM
32
LINE FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE
35
BRAKE HOSE REAR AXLE
38
RETAINING SPRING BRAKE HOSE TO BRACKET
38
BRACKET FROM FRAME MOUNTED BRACKET TO DISTRIBUTOR ON REAR AXLE
44
DISC BRAKE LINE MOUNTING,055306
47
LINE FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE
50
LINE FROM PRESSURE RETAINING VALVE TO BRAKE POWER REGULATOR 230 MM
53
LINE FROM BRAKE POWER REGULATOR TO LEFT FRONT WHEEL,126.021 005796, 126.022,023 020032, 126.032,033 008371, 126.036,037 007212
56
TEST CONNECTION BRAKE POWER REGULATOR
56
TEST CONNECTION , Replaced By: A0004318731
56
TEST CONNECTION AT DISTRIBUTOR
65
NUT , Replaced By: N913004006001
65
NUT PUMP TO BRACKET
68
DISTRIBUTOR FRONT, 000,001,010 UP TO CHASSIS 106921,100,101,110 UP TO CHASSIS 178056
71
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
71
NUT , Replaced By: N913004008001
71
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
74
DISTRIBUTOR
77
SCREW PUMP TO BRACKET
77
SCREW , Replaced By: N304017006016
80
NUT , Replaced By: N913004006001
80
NUT PUMP TO BRACKET
83
VALVE , Replaced By: A0004313907
86
BRACKET DISTRIBUTOR
89
NUT BALL PIVOT TO LEVER
92
WASHER COMPRESSED AIR LINE TO BRACKET
92
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
95
CLAMP BRAKE LINE TO SIDE MEMBER
98
SCREW LICENSE PLATE TO BRACKET
98
SCREW , Replaced By: N304017006020
101
NUT , Replaced By: N913004006001
101
NUT PUMP TO BRACKET
107
LOCK
110
CLAMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 097945, Replaced By: A4639940148
113
BRACKET , Replaced By: A6674280840
116
BRACKET BRAKE LINE TO FIRE WALL
119
DAMPING STRIP BRAKE LINE TO LEFT FRONT WHEELHOUSE PANEL
122
LOOM TIE LINE MOUNTING 280 MM
125
CLAMP. LOCK FUEL LINES
129
LINE FROM TEST CONNECTION TO HYDRAULIC UNIT
129
LINE FROM TEST CONNECTION TO HYDRAULIC UNIT
133
LINE FROM REAR MASTER CYLINDER TO A B S HYDRAULIC UNIT
136
LINE FROM HYDRAULIC UNIT TO LEFT FRONT WHEEL
139
LINE FROM HYDRAULIC UNIT TO RIGHT FRONT WHEEL
148
LINE HYDRAULIC UNIT TO PRESSURE CONTROL VALVE
154
SCREW PLUG
