Поз.
Артикул
Описание
5

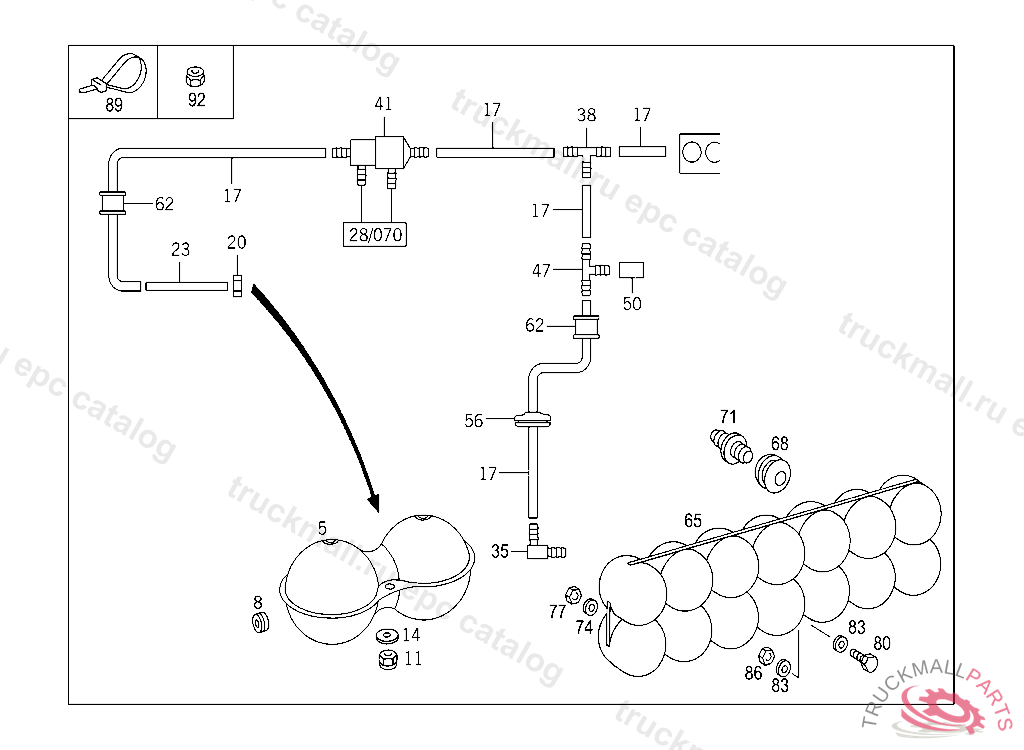

TANK (VACUUM SUPPLY TANK)
8
GROMMET ,D 314239
11
NUT , Replaced By: N913002006009
11
NUT OIL TANK TO BRACKET
14
WASHER COMPRESSED AIR LINE TO BRACKET
14
WASHER , Replaced By: N009021006208
17
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
20
NUT
23
LINE VACUUM LINE, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
35
ELBOW FITTING SHIFTING CYLINDER
38
T-FITTING
41
VALVE
47
DISTRIBUTOR VACUUM LINE
50
LOCKING CAP
56
GROMMET
56
GROMMET
56
GROMMET ,D 314239
56
GROMMET FRONT BLINKER LAMP
56
GROMMET O.D., 36 MM
62
DAMPING RING
65
ACCUMULATOR ,052674
68
GROMMET LINE MOUNTING 19/13 MM
71
CONNECTOR BRAKE BOOSTER ASSEMBLY
74
WASHER ENGINE SUPPORT TO FRAME
77
NUT
80
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
83
WASHER EXHAUST MUFFLER TO STRAP
86
NUT
89
LOOM TIE
89
LOOM TIE FLEXIBLE SHAFT
92
NUT PUMP TO BRACKET
92
NUT , Replaced By: N913004006001
