Поз.
Артикул
Описание

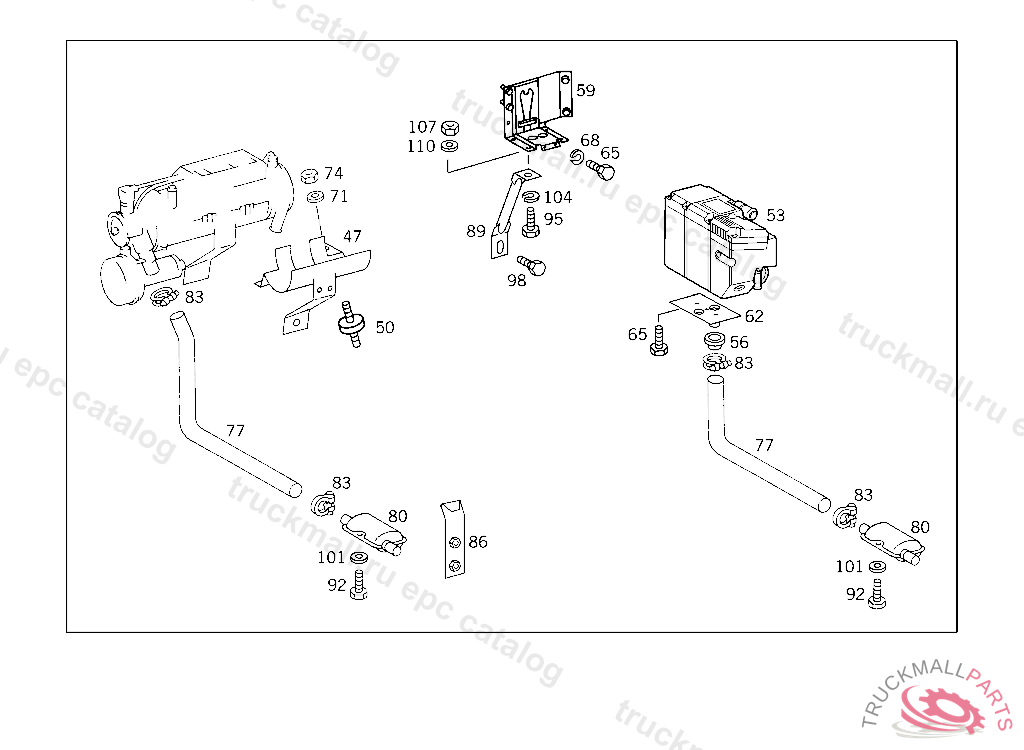

47
BRACKET
50
RUBBER MOUNTING , A 209750 F 108105
53
HEATING UNIT
53
HEATING UNIT , Replaced By: A4635000798, +001A4635400781
56
GASKET
59
BRACKET HEATER UNIT
59
BRACKET HEATER UNIT
62
BRACKET ,096674 EXCEPT 096676
65
SCREW , Replaced By: A1249900320
65
SCREW LICENSE PLATE TO BRACKET
65
SCREW , Replaced By: N304017006020
68
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
71
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
71
WASHER COMPRESSED AIR LINE TO BRACKET
74
NUT BALL PIVOT TO LEVER
77
HOSE EXHAUST PIPE TO MUFFLER 1380 MM, ORDER BY THE METER
77
FRONT EXHAUST PIPE
80
MUFFLER EXHAUST MUFFLER
80
MUFFLER , Replaced By: A0054910801
83
CLAMP , Replaced By: A0049976890
86
BRACKET MUFFLER TO WHEELHOUSE
89
STIFFENING HEATER UNIT BRACING
92
SCREW , Replaced By: N304017006018
92
SCREW COVER PLATE TO COVER PLATE M 6 X 12
95
SCREW COVER PLATE TO COVER PLATE M 6 X 12
95
SCREW , Replaced By: N304017006018
98
SCREW , Replaced By: N304017006018
98
SCREW COVER PLATE TO COVER PLATE M 6 X 12
101
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
101
WASHER COMPRESSED AIR LINE TO BRACKET
104
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
107
NUT BALL PIVOT TO LEVER
110
WASHER COMPRESSED AIR LINE TO BRACKET
110
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
ELECTRIC CABLE ADAPTER TO 463 500 04 98, REPAIR SOLUTION
999
PLUG SOCKET , Replaced By: A0005430007
