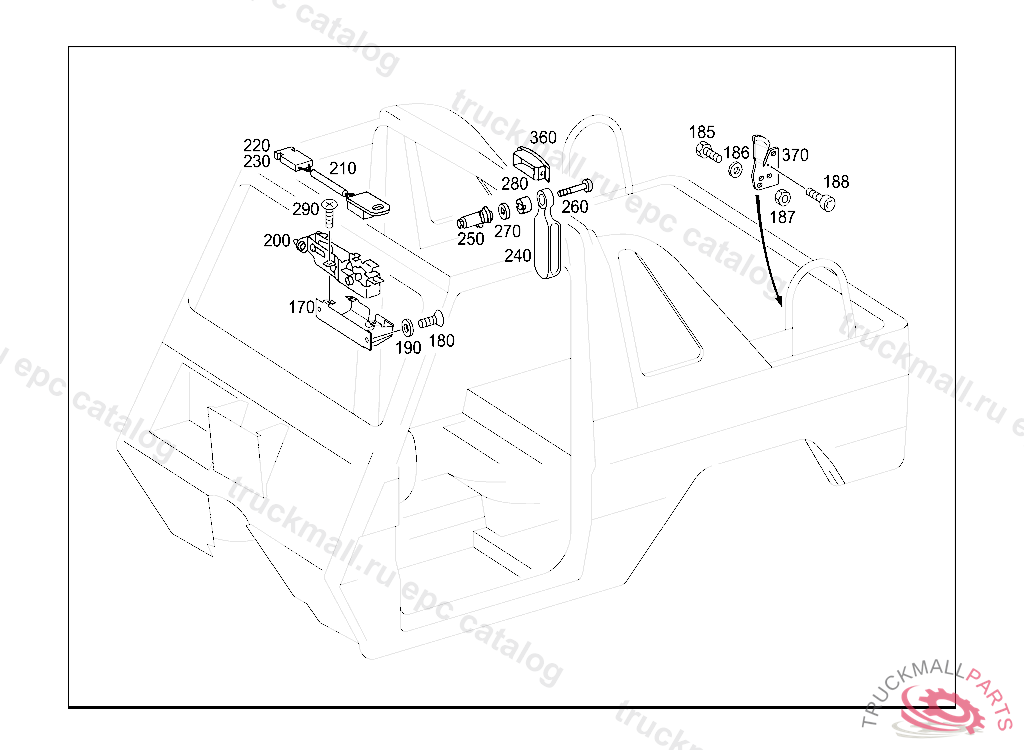

Mercedes A1247760208 - Деталь DOG PLATE FO
G350 BLUETEC 463.306
77 FOLDING TOP - 100 ELECTRIC, HYDRAULIC FOLDING TOP IL. 2
Поз.
Артикул
Описание
170
A4637700156
HOUSING FRONT LEFT
170
A4637700256
HOUSING FRONT RIGHT
180
N304017006016
SCREW PUMP TO BRACKET
185
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
186
N000125008445
WASHER PUMP TO CONSOLE
187
N304032008012
HEXAGON NUT. NUT L.H. THREAD
188
A0039903205
BOLT TO BELT CLIP BRACKET
190
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
200
A4637700226
CATCH RIGHT
200
A4637700126
CATCH LEFT
210
A4638200410
SWITCH LEFT
210
A4638200510
SWITCH RIGHT
220
A0125458428
PLUG HOUSING
230
A0115451628
PLUG PIN
240
A4637700144
LEVER , 9051QFT463A0535 BLACK
250
A1247700152
INTERMEDIATE PIECE BETWEEN LOCK & HANDLE,C 083748
260
A1249843529
SCREW HANDLE TO LOCK
270
A1249904240
WASHER BETWEEN LOCK & HANDLE
280
A1247760208
CONNECTING DRUM BETWEEN LOCK & HANDLE
290
N304017005010
HEXAGON HEAD BOLT. SCREW VALVE TO BRACKET
360
A1247740429
COVERING HANDLE
370
A4636300536
BRACKET RIGHT
370
A4636300436
BRACKET FASTENER,LEFT
370
A4636301136
BRACKET
