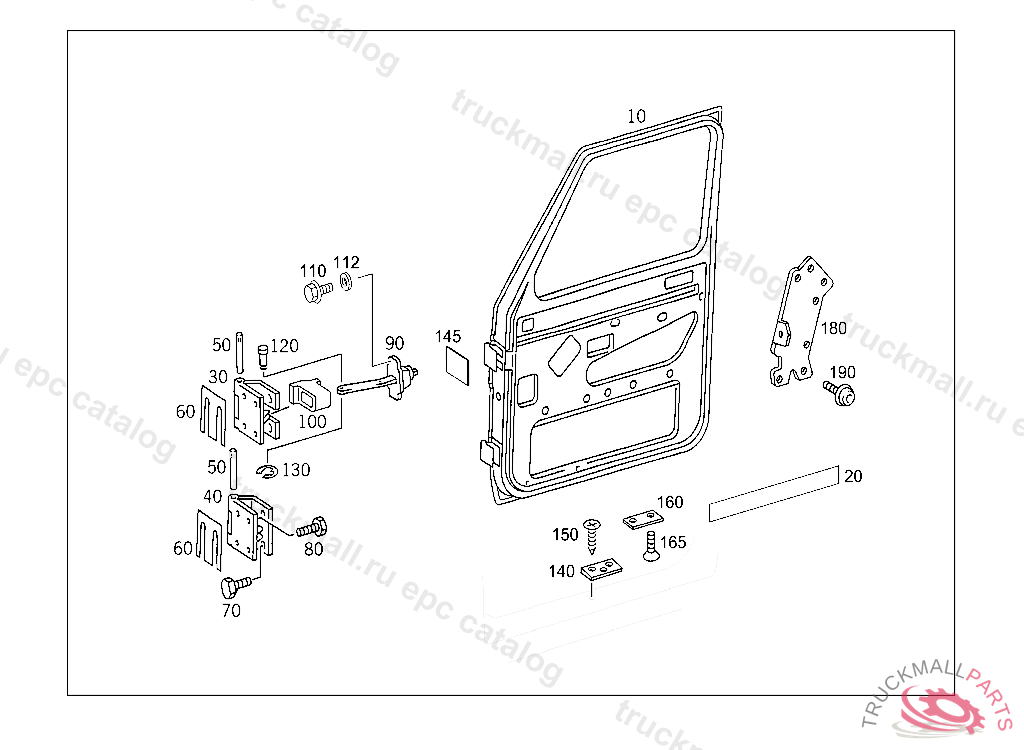

Поз.
Артикул
Описание
10
DRIVER'S DOOR SHELL RIGHT, X 19654020120119
10
DRIVER'S DOOR SHELL LEFT, X 20407720121031
10
DRIVER'S DOOR SHELL RIGHT, X 19654120120119
10
DOOR SHELL LEFT, X 19654020120119, Replaced By: A4637205905
10
DOOR SHELL RIGHT, X 19654020120119, Replaced By: A4637206005
10
DRIVER'S DOOR SHELL LEFT, X 20407820121031
20
SOUNDPROOFING ON TOP OF BODYWORK
20
SOUNDPROOFING LEFT
30
HINGE REAR TOP, LEFT
30
HINGE FRONT BOTTOM RIGHT
40
HINGE RIGHT TOP
40
HINGE LEFT FRONT, TOP AND BOTTOM
40
HINGE REAR BOTTOM RIGHT, X 19654120120119
40
HINGE REAR BOTTOM LEFT, X 20407820121031
50
HINGE PIN FRONT TOP LEFT
60
PAD HINGE,LEFT, Replaced By: A4637250000
60
ASSEMBLY PLATE RIGHT, Replaced By: A4607230197
70
SCREW PIPE CLAMP
80
SCREW BRACKET TO CROSS CONNECTION STRUT
90
DOOR CHECK RIGHT REAR DOOR, X 19654020120119
90
DOOR CHECK LEFT
100
SEALING FRAME RIGHT DOOR CHECK, X 19654120120119
100
SEAL LEFT DOOR CHECK, X 19654020120119
110
BOLT DOOR CATCH TO DOOR RIGHT
110
SCREW SENSOR CABLE MOUNTING
112
WASHER COMPRESSED AIR LINE TO BRACKET
120
PIN BRACKET TO FRONT PANEL, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009915405
120
COLLAR PIN DOOR STOP TO CENTER PILLAR LEFT
130
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
140
PLATE RIGHT FRONT DOOR,BOTTOM
145
INTERMEDIATE LAYER ANTENNA COMBINER TO LATERAL LEFT COVERING IN LUGGAGE COMPARTMENT
150
TAPPING SCREW4.2X16
150
TAPPING SCREW RIGHT 4,2X13, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000000005220
160
RUN-ON PLATE RIGHT FRONT DOOR,BOTTOM
165
SCREW SWITCH TO INSTRUMENT PANEL
180
REINFORCEMENT FRONT LEFT
180
REINFORCEMENT FRONT RIGHT
180
FASTENING PLATE
190
SCREW , Replaced By: A1409842829
