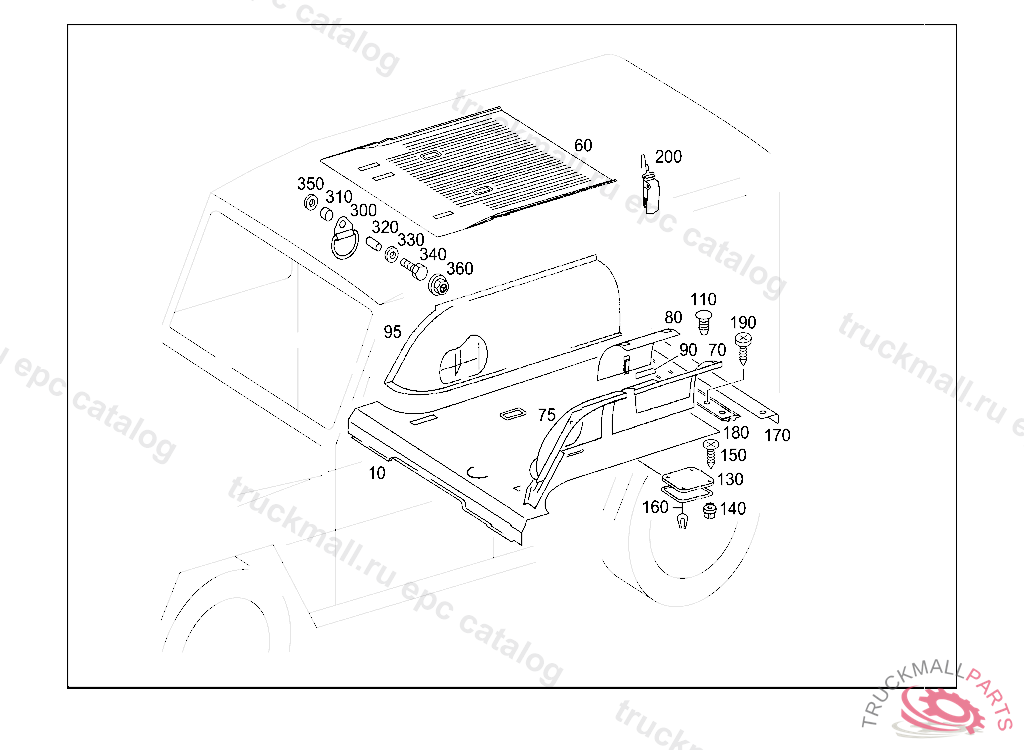

Поз.
Артикул
Описание
10
LINING REAR FLOOR
10
COVER TRUNK FLOOR REAR, 7088019 QFT463A0310 ANTHRACITE
60
LINING LOADING COMPARTMENT RUBBER MAT
70
LINING LEFT REAR WHEELHOUSE, X 16854820061031 7088030 QFT463A0310 ANTHRACITE
75
LINING LEFT FRONT WHEELHOUSE, X 16854820061031 7088019 QFT463A0310 ANTHRACITE
80
COVER TO CLOSE WHEEL ARCH,REAR LEFT
90
MOUNTING STRIP , ORDER BY THE METER
95
LINING RIGHT REAR WHEELHOUSE, X 16854820061031 7088029 QFT463A0310 ANTHRACITE
110
PLUG COVERING TO PARTITION PANEL,CENTER
130
COVER FUEL GAUGE, X 18602520101018
130
SERVICING COVER FUEL GAUGE, X 18602620101018 9051QFT463A0003 BLACK
140
LOCK SIDE BLINKER LAMP
140
LOCK , Replaced By: A1239942045
150
TAPPING SCREW SIDE REFLECTORS,K 057592
150
SHEET METAL SCREW
160
EDGE GUARD AT BRACKET, ORDER BY THE METER
170
COVER STRIP REAR FLOORING COVER RAIL
170
RAIL REAR FLOORING COVER RAIL
180
RAIL REAR FLOORING COVER RAIL
190
SHEET METAL SCREW BRACKET TO SUPPORT
190
TAPPING SCREW CONTROL UNIT TO FIRE WALL
200
BRACKET LOADING COMPARTMENT RUBBER MAT
300
BRACKET SIDE MEMBER,LEFT
300
BRACKET ANCHORING LUG,357677620100831
310
SPACER BUSH BRACKET,LEFT AND RIGHT
320
SPACER TUBE EXHAUST PIPE REAR ON BATTERY CASE
330
WASHER EXHAUST MUFFLER TO STRAP
330
WASHER PUMP TO CONSOLE
340
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
350
SPRING WASHER LEVER MOUNTING
360
CAP TO RIGHT DOOR HINGE SCREW
