Поз.
Артикул
Описание

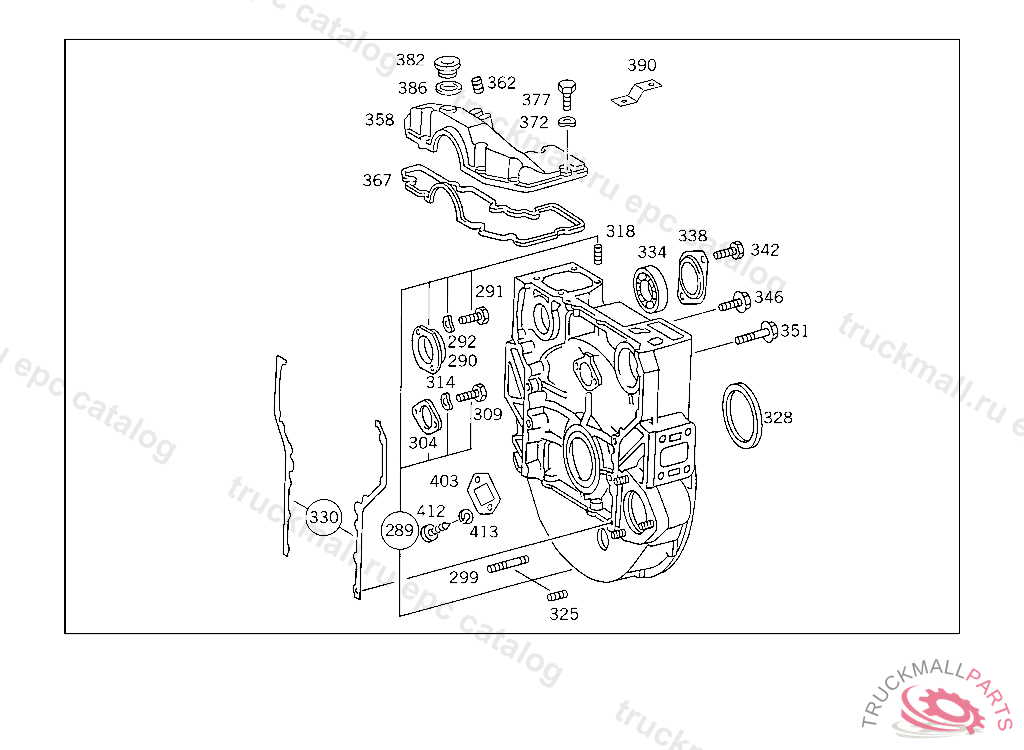

289
TIMING CASE
289
TIMING CASE
290
BUSHING AIR COMPRESSOR BEARING
291
SCREW , Replaced By: N304017008021
291
SCREW PIPE CLAMP
292
SPRING WASHER , Replaced By: N000137008212
299
STUD STARTING MOTOR MOUNTING
304
GUARD PLATE STARTING MOTOR MOUNTING
309
SCREW , Replaced By: N914125008319
314
SPRING WASHER , Replaced By: N000137008212
318
THREADED INSERT
325
THREADED INSERT ,5 462573
328
SEAL RING CRANKSHAFT SEALING,REAR,708527 I.D., 120MM
330
GASKET KIT , Replaced By: A4230104833
334
CYLINDR. ROLLER BEARING AIR COMPRESSOR BEARING
338
FLANGE
342
SCREW , 000825
346
SCREW CONVERTER HOUSING TO TRANSMISSION CASE
351
SCREW CONVERTER HOUSING TO TRANSMISSION CASE
358
COVER
362
THREADED INSERT
367
SEAL RING , Replaced By: A4420150060
367
SEAL RING COVER TO TIMING CASE
372
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
377
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
377
SCREW , Replaced By: N304017008027
382
SCREW PLUG , Replaced By: A4229970230
382
SCREW PLUG
386
SEAL RING OIL COOLER CONNECTION
386
SEAL RING TO LOCK DELIVERY BEGINNING INSPECTION HOLE TO 423 010 02 17, 38
390
BRACKET
403
COVER TIMING CASE
412
SCREW , Replaced By: N304017008021
412
SCREW STOP TO BATTERY CASE
413
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
CLAMPING PINTO 345 017 73 21
999
CLAMPING PINTO 345 017 73 21, FOR USE WITH NOZZLE HOLDER HAVING 24X1.5-MM-THREAD UNION NUT
999
UNION NUT NOZZLE HOLDERS
999
UNION NUTTO 345 017 73 21
999
SCREW PLUG OIL COOLER,5 360280
999
NOZZLETO 001 017 98 21
999
SPACER WASHERTO 345 017 73 21
999
SEALING COMPOUND TUBE OF SEALANT, WITH REAR CRANKSHAFT SEALING TO BE REWORKED,UP TO ENGINE 283201
999
NOZZLETO 004 017 12 21, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
999
SEAL RING
999
SEAL RING
999
SEAL RING CRANKSHAFT SEALING,FRONT,708527 ONLY USE FOR HEAVY GROOVES AND SCORE MARKS AND HEAVY GROOVES ONCRANKSHAFT JOURNAL. INSTALL SEALING RING TOGETHER WITH RACE A 442 031 00 27 I.D., 105MM
999
SEAL RING , Replaced By: A0249972848
999
SEAL RING AT WATER PUMP
999
GASKET , Replaced By: A4410140022
999
GASKET , Replaced By: A4420110080
999
CAP
999
GASKET , Replaced By: A4421310080
999
GASKET
999
GASKET EXHAUST MANIFOLD TO CYLINDER HEAD
999
GASKET , Replaced By: A4421880280
999
GASKET , Replaced By: A4422010080
999
GASKET KIT , Replaced By: A4210100408
999
GASKET KIT CYLINDER CRANKCASE, FOR BREAK-DOWN OF OF GASKET KIT, SEE END OF GROUP 01, ORDER ADDITIONALLY:"DIRKO-TRANSPARENT" TUBE OF SEALING MATERIAL FOR OF CYLINDER LINEROIL COOLER GASKET ON CYLINDER CRANKCASE,UP TO ENGINE 129660WATER PUMP GASKET ON CYLINDER CRANKCASE,UP TO ENGINE 129660 SEALING MATERIAL FOR CYLINDER LINER OF AIR COMPRESSOR
999
GASKET KIT , Replaced By: A4230100320
999
GASKET KIT , Replaced By: A4440100120
999
GUIDE SIGN TAPPET CLEARANCE ADJUSTMENT
999
GASKET , Replaced By: A4410140422
999
GASKET OIL PAN TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A5410110080
999
CYLINDER HEAD GASKET , Replaced By: A4420160420
999
CYLINDER HEAD GASKET , Replaced By: A4420160320
999
CYLINDER HEAD GASKET , Replaced By: A4420160520
999
CYLINDER HEAD GASKET , ALSO APPLICABLE IN CASE OF SUPPORTING SURFACE REWORKED
999
CYLINDER HEAD GASKET , ALSO APPLICABLE IN CASE OF SUPPORTING SURFACE REWORKED
999
GASKET CYLINDER HEAD COVER
999
GASKET CYLINDER HEAD COVER TO CYLINDER HEAD
999
SEAL RING INJECTION PUMP LUBRICATION,473001
999
GASKET , Replaced By: A4421312080
999
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421312080
999
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
999
GASKET OIL FILTER TO CYLINDER CRANKCASE
999
GASKET OIL FILTER TO CYLINDER CRANKCASE
999
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
999
GASKET , Replaced By: A4421880580
999
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
999
GASKET WATER PUMP
999
GASKET KIT , CYLINDER HEAD GASKET INCLUDED, Replaced By: A4440100220
999
ENGINE
999
GASKET COVER TO CYLINDER CRANKCASE,FRONT
999
SEAL RING , Replaced By: N007603010110
999
SEAL RING CLUTCH BOOSTER
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING
999
SEAL RING LINE CONNECTION
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEAL RING OIL LINE TO OIL COOLER
999
SEAL RING OIL COOLER CONNECTION
999
SCREW PLUG 4/2-WAY VALVE
999
SCREW PLUG AIR DEHYDRATOR
999
HOLLOW SCREW , Replaced By: N915036010109
