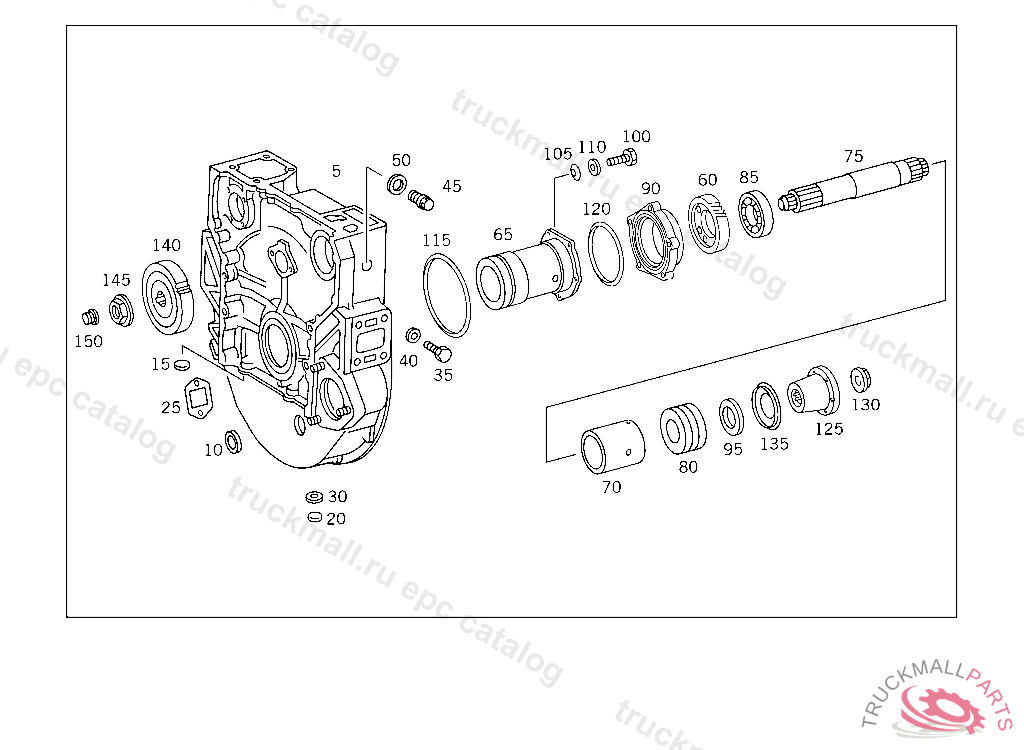

Поз.
Артикул
Описание
5
TIMING CASE WITH BUSHING
5
TIMING CASE LESS BUSHING,794007
10
PLUG , 401-403 263713 404 006589 421-423 111256 424 001820
15
EXPANSION PLUG TO PLUG BEARING BORE
15
EXPANSION PLUG
20
EXPANSION PLUG ENGINE LEFT AND RIGHT SUPPORTS
25
GASKET , Replaced By: A4420150380
25
GASKET T.D.C. SENDER UNIT TO BRACKET,396842
30
SEAL RING SCREW PLUG
35
SCREW BRACKET TO SUPPORT M 16X16
40
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
45
SCREW PLUG OIL COOLER,5 360280
50
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
60
CRANKSHAFT GEAR , 443 901220 444 018911
65
HOUSING P.T.O.
70
SPACER TUBE P.T.O.
75
SHAFT P.T.O., 401-403 083703 404 000682
80
BEARING RING P.T.O.
85
CYLINDR. ROLLER BEARING P.T.O.
85
ANG. CONTACT BALL BEARING P.T.O.
85
CYLINDR. ROLLER BEARING P.T.O.
90
FLANGE P.T.O., 401-403 083703 404 000682
95
SEAL RING FLANGE TO P.T.O.
100
HEX. HEAD. SCREW , Replaced By: N000931008221
105
CONICAL SPRING WASHER BEARING HOUSING TO TIMING CASE
110
FITTED WASHER INTERMEDIATE FLANGE TO BEARING HOUSING 1.0 MM
110
FITTED WASHER AS REQUIRED 1.4 MM
110
FITTED WASHER INTERMEDIATE FLANGE TO BEARING HOUSING 1,6 MM
110
FITTED WASHER INTERMEDIATE FLANGE TO BEARING HOUSING 1.8 MM
110
FITTED WASHER INTERMEDIATE FLANGE TO BEARING HOUSING 1,2 MM
115
SEAL RING
120
SEAL RING HOUSING WITH FLANGE,GASKET AND COVER TO TIMING CASE
125
FLANGE OUTPUT FLANGE TO P.T.O. SHAFT
130
NUT FLANGE TO MAIN SHAFT, UP TO IDENT NO. 207851 FROM IDENT NO. 207852 SEE MOCROFICHE, MODEL 712.0
135
SEAL RING HUB TO P.T.O. SHAFT
140
GEAR (DRIVE GEAR),P.T.O.
145
NUT DRIVE GEAR TO P.T.O. SHAFT
150
OIL NOZZLE LUBRICATION OF P.T.O.
