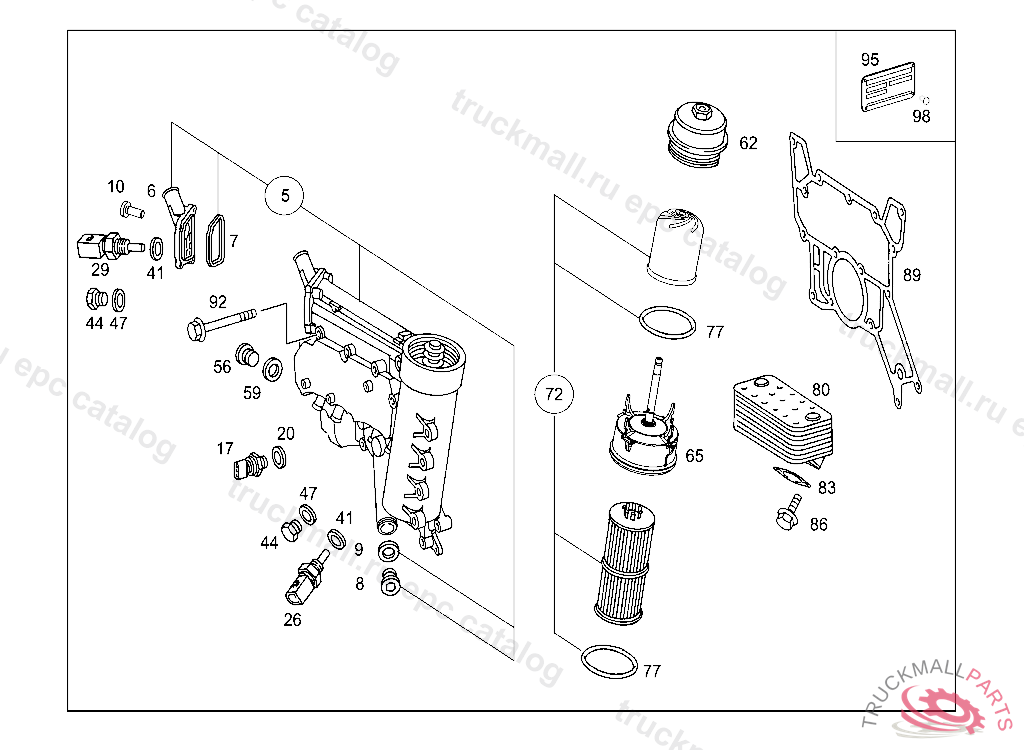

Поз.
Артикул
Описание
5
HOUSING
6
PIPE SOCKET
7
GASKET
8
SCREW PLUG FRONT COVER
9
SEALING RING NON-RETURN OIL VALVE
10
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
17
PRESSURE SWITCH OIL PRESSURE
20
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
26
SENDER UNIT TEMPERATURE SENDER UNIT
26
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
29
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
29
SENDER UNIT TEMPERATURE SENDER UNIT
41
SEALING RING
44
SCREW PLUG FUEL TANK
44
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
47
SEALING RING
47
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
56
SCREW PLUG
59
SEALING RING. SCREW TO PLUG LONGITUDINAL OIL DUCT,OIL PUMP
62
COVER OIL CENTRIFUGE
62
COVER OIL FILLING
65
COVER OIL FILTER COVER WITH CENTRIFUGE AXLE
72
FILTER ELEMENT PARTS KIT
77
SEAL RING COVER TO FILTER HOUSING
77
SEAL RING131X4MM
77
SEAL RING COVER TO FILTER HOUSING
80
OIL COOLER
80
OIL COOLER
83
GASKET , RECOMMENDED FOR TAKING ON STOCK
86
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
89
GASKET OIL COOLER TO CYLINDER CRANKCASE, FOLLOWING CONVERSION TO HIGH-SPEED BELT DRIVE,USE REPLACEMENT PART FROM KIT 599020/01/02
92
HEXAGON HEAD BOLT MOUNTING,GAS CYLINDERS M10X110
92
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
92
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
92
SCREW SCREENING PLATE TO CYLINDER HEAD
95
TYPE PLATE , STATE ENGINE NO.AND CHASSIS NO.WHEN ORDERING
98
RIVET ENGINE PLATE TO ENGINE
