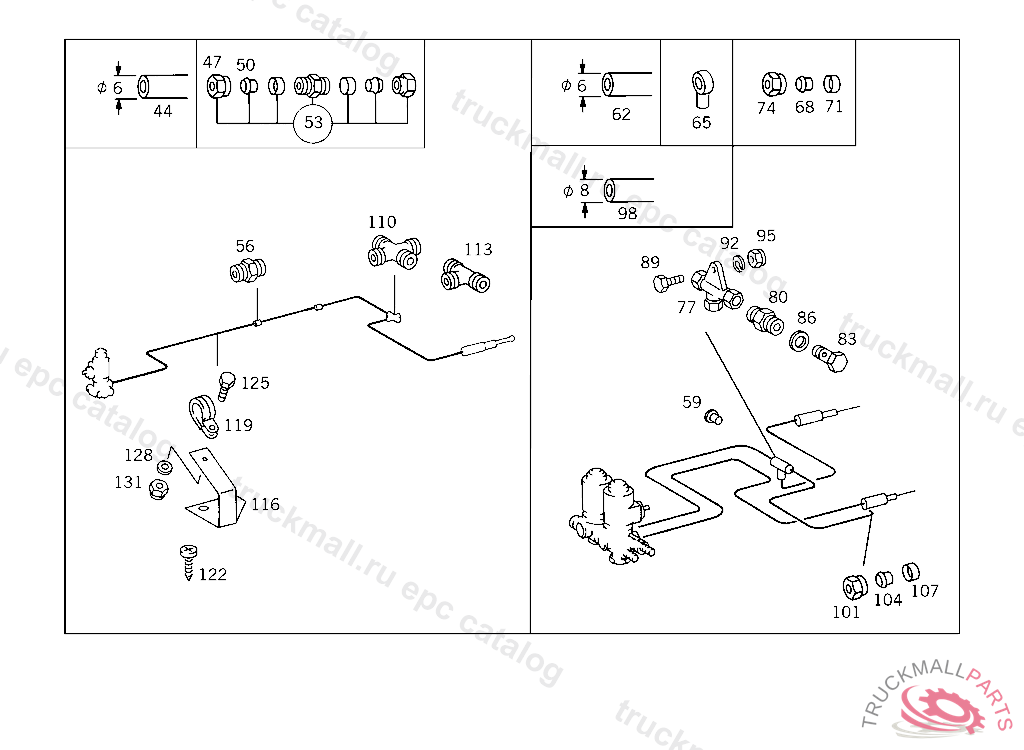

Поз.
Артикул
Описание
44
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
47
UNION NUT
50
SEAL CONE
50
GLAND , Replaced By: A0019901667
53
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
56
TS DOUBLE FITTING SOLENOID VALVE
59
NOZZLE COMPRESSED AIR LINE TO EXHAUST BRAKE CYLINDER
62
PLASTIC PIPE RISING PIPE 4X6 MM
62
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
65
BANJO UNION
65
BANJO UNION
68
SEAL CONE
68
GLAND , Replaced By: A0019901667
71
SLEEVE LEAK LINE
74
UNION NUT
77
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
80
FITTING SHUTTLE VALVE,CONNECTIONS: "2,11,12"
83
HOLLOW SCREW BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
83
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "12,20"
86
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
86
SEAL RING LINE CONNECTION
89
SCREW , Replaced By: N304017008034
92
LOCK WASHER RAIL TO BATTERY SUPPORT
95
NUT
95
NUT BATTERY CASE
98
PLASTIC PIPE AERATION, ORDER BY THE METER
98
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
101
UNION NUT LINE CONNECTION
104
GLAND LINE CONNECTION
107
SLEEVE LINE CONNECTION
116
BRACKET COMPRESSED AIR LINE TO ENGINE
119
CLAMP SENSOR CABLE TO BRACKET
122
SHEET METAL SCREW OIL LINE MOUNTING
125
SCREW CAB FLOOR COVERING M 6X25
128
WASHER , Replaced By: N009021006208
131
NUT , Replaced By: N910113006001
999
SCREW BLINKER SENDER UNIT MOUNTING
999
SEAL RINGBOSCH
