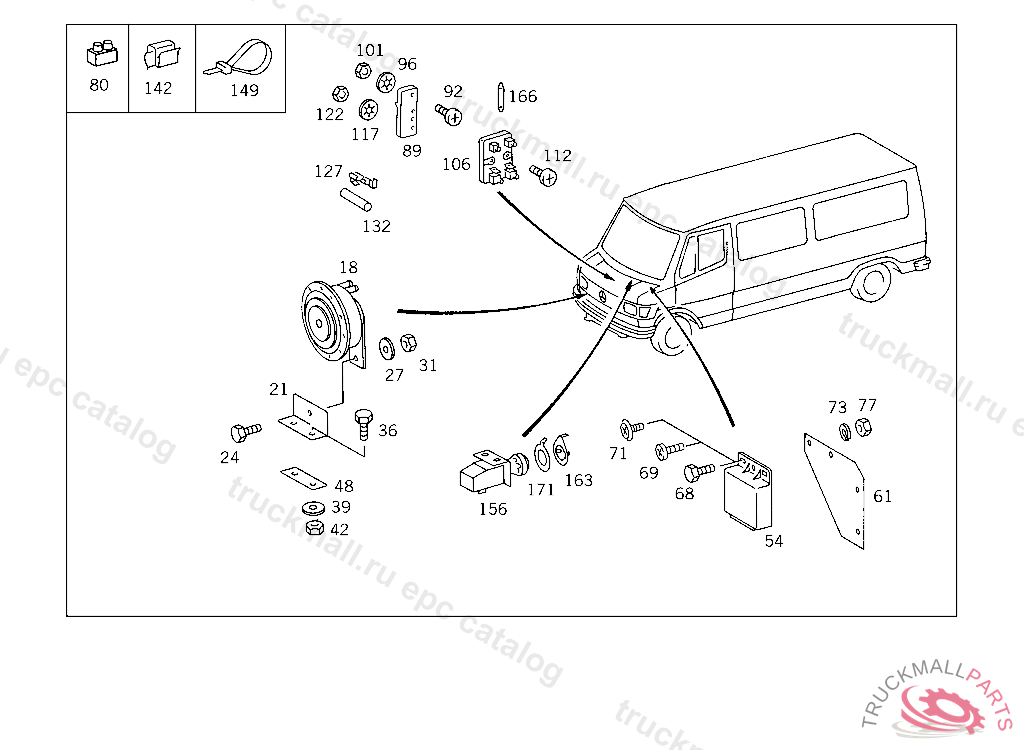

Поз.
Артикул
Описание
18
HORN , Replaced By: A0035421920
18
HORN
18
HORN
21
BRACKET LEFT AND RIGHT
24
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
27
WASHER RADIATOR TO RUBBER MOUNTING
27
WASHER , Replaced By: N000125010532
31
NUT
36
SCREW PIPE CLAMP
36
SCREW , Replaced By: N304017008021
39
WASHER EXHAUST MUFFLER TO STRAP
42
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
48
PAD BRACKET TO BUMPER
54
RELAY
61
BRACKET ,771535
68
SCREW IN CASE OF SUBSEQUENT INSTALLATION
69
SCREW CONTROL UNIT TO CAB
71
SCREW , Replaced By: N000000001475
71
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
73
LOCK WASHER BRACKET TO STEERING COLUMN END
73
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
77
NUT IN CASE OF SUBSEQUENT INSTALLATION
77
NUT SPRING-LOADED PUSH ROD
77
NUT , Replaced By: N304032005005
80
CABLE CONNECTOR ROOF RAIL,FRONT
80
CABLE CONNECTOR CLUTCH SWITCH
89
BRACKET FUSE BOX,748558
92
SCREW CONTROL UNIT TO CAB
96
SERRATED WASHER BRACKET TO SUPPORT
101
NUT , Replaced By: N304032005005
101
NUT IN CASE OF SUBSEQUENT INSTALLATION
106
FUSE BOX BIPOLAR,K 100807 MIT AUSNANME VON K 093739
106
FUSE BOX , Replaced By: A0005459901
112
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
117
SERRATED WASHER FUSE BOX TO BRACKET
122
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
127
PLUG DISTRIBUTOR2.50 MM2
132
GROMMET3.0 MM
142
CLIP13 MM, Replaced By: A0129884678
142
CLIP CABLE HARNESS TO ROOF RAIL
149
LOOM TIE LINE MOUNTING 280 MM
156
SWITCH AUDIBLE WARNING
156
SWITCH AUDIBLE WARNING
163
LOCK ALARM SWITCH
166
FUSE , Replaced By: N072581000305
166
FUSE , Replaced By: A0025451034
171
WASHER ALARM SWITCH
