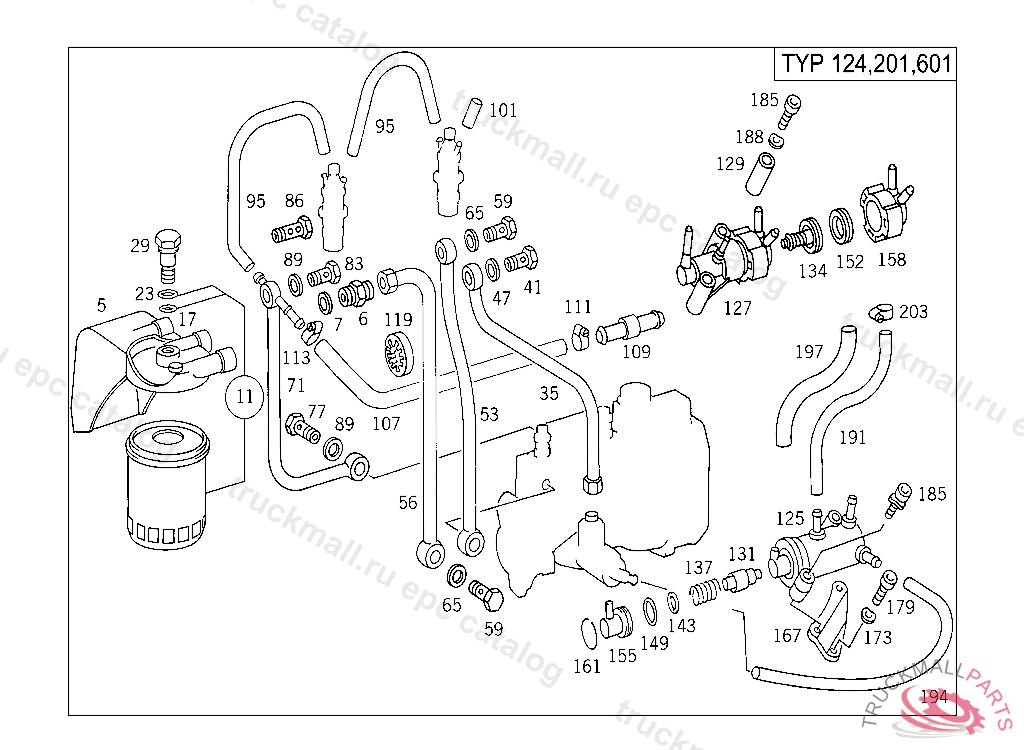

Поз.
Артикул
Описание
5
FILTER HEAD FUEL FILTER
11
FILTER
11
FILTER (PARTS KIT),FUEL FILTER
11
FILTER , Replaced By: A6010901452
11
FILTER , Replaced By: A6010900352
11
FILTER , Replaced By: A6010900352
11
FILTER , Replaced By: A6010900352
17
SEAL RING
23
SEAL RING FUEL FILTER TO FILTER HEAD
29
HOLLOW SCREW FUEL FILTER TO FILTER HEAD
29
HOLLOW SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 911 10/50,20/60 123681 911 12/52,22/62 024346 912 10/50,20/60 243087 912 12/52,22/62 042009 939 10/50,20/60 009528 942 10/50,20/60 000391 942 12/52,22/62 000013 946 10/50,20/60 000638 961 10/50,20/60 010047 961 12/52,22/62 011552 962 10/50,20/60 029888 962 12/52,22/62 018834 993 10/50,20/60 000246, Replaced By: A6049900063
35
LINE FROM FEED PUMP TO FILTER
41
HOLLOW SCREW OIL LINE
47
SEAL RINGTO 001 431 72 14
47
SEAL RING RELAY VALVE,CONNECTION: "41"
53
LINE FROM FUEL FILTER TO INJECTION PUMP
59
HOLLOW SCREW
65
SEAL RING LINE CONNECTION
71
LINE FUEL RETURN
77
VALVE FUEL RETURN LINE TO INJECTION PUMP
83
HOLLOW SCREW
89
SEAL RING LINE CONNECTION
95
FUEL HOSE FROM NO.1 NOZZLE HOLDER TO FUEL RETURN LINE 245 MM, ORDER BY THE METER
95
HOSE , Replaced By: A6050780581
101
RUBBER CAP NOZZLE HOLDER NO.4
101
RUBBER CAP , Replaced By: A6040700255
101
SCREENING , Replaced By: A4030700055
101
SCREENING NOZZLE HOLDER
101
LOCKING CAP
107
HOSE , Replaced By: A1149971882
107
HOSE , Replaced By: A6019973482
107
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
109
VALVE , 605.911 10/50,20/60 016671 605.911 12/52,22/62 006210 606.910 10/50,20/60 005094 606.910 12/52,22/62 008799
111
LOOM TIE , Replaced By: A1249972090
113
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
113
CLAMP , Replaced By: N000000000665
119
RUBBER RING
127
THERMOSTAT FUEL THERMOSTAT
127
THERMOSTAT FUEL THERMOSTAT
129
SLEEVE
129
SLEEVE
131
THERMOSTAT
131
THERMOSTAT
134
THERMOSTAT FUEL THERMOSTAT
137
SPRING
143
WASHER
149
SEAL RING
152
SEAL RING
155
COVER
158
COVER
161
LOCK RING
167
BRACKET , 91110/50,20/60215360 91112/52,22/62019334 91210/50,20/60072573 91212/52,22/62006110
173
SPRING WASHER LICENSE PLATE TO BRACKET
179
SCREW FUEL THERMOSTAT TO ENGINE SUPPORT M6X55
185
SCREW FUEL THERMOSTAT TO ENGINE SUPPORT M6X55
185
SCREW OIL LINES TO ENGINE M 6X70
185
COMBINATION BOLT FUEL THERMOSTAT TO ENGINE SUPPORT
185
COMBINATION BOLT FUEL THERMOSTAT TO ENGINE SUPPORT, 91110/50,20/60042559 91112/52,22/62009893 91210/50,20/60066314 91212/52,22/62010998
188
SPRING WASHER LICENSE PLATE TO BRACKET
191
HOSE FUEL LINE TO THERMOSTAT HOUSING 12 MM, APPLICABLE TO VEHICLES WITH FUEL PRE-HEATER
191
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
194
HOSE FROM FUEL THERMOSTAT TO FEED PUMP, 91110/50,20/60215361 91112/52,22/62019335 91210/50,20/60072574 91212/52,22/62006111
194
HOSE FROM FUEL THERMOSTAT TO FEED PUMP, 91110/50,20/60215360 91112/52,22/62019334 91210/50,20/60072573 91212/52,22/62006110
194
HOSE , Replaced By: A6010781981
197
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
203
CLAMP LINE CONNECTION
203
HOSE CLAMP HOSE FASTENING 9/13MM
999
FUEL HOSE FUEL RETURN, NOT USED
