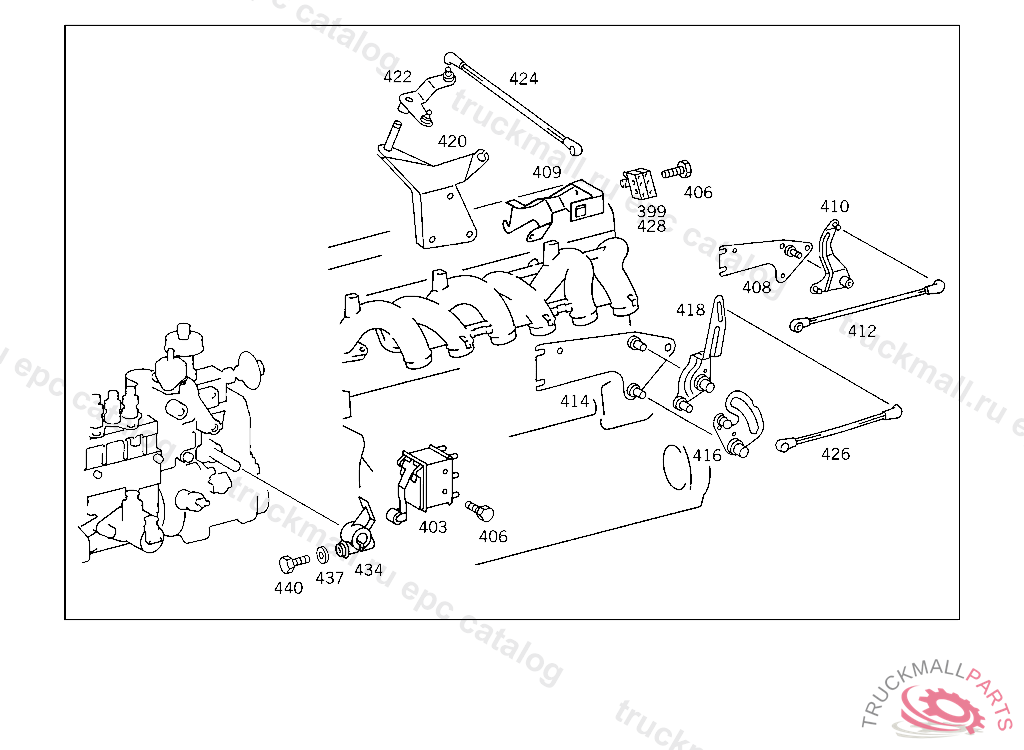

Поз.
Артикул
Описание
399
SWITCH ENGINE SPEED STABILIZING
399
SWITCH MICRO-SWITCH
403
SWITCH MICRO-SWITCH
406
SCREW
406
SCREW
408
BEARING BRACKET ANGULAR LEVER
409
BEARING BRACKET CONTROL LEVER, 601.911 10/50,20/60 045735 EXCEPT FOR 036290-036295,036439,036529-036538,037507,039475-039476,040073,040502-040504,044947-045033,045399. 601.911 12/52,22/62 005082 EXCEPT FOR 004107,004988
409
BEARING BRACKET , Replaced By: A6010706424
410
LEVER ANGULAR LEVER
412
ROD FROM ANGULAR LEVER TO INJECTION PUMP
414
BEARING BRACKET SLOTTED-GATE/REVERSING LEVER
416
SLOTTED GATE LEVER
418
LEVER , Replaced By: A6030700522
418
LEVER
420
BEARING BRACKET REVERSING LEVER
422
REVERSING LEVER
424
ROD FROM CONTROL LEVER TO REVERSING LEVER
424
ROD , Replaced By: A0010705775
424
ROD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 91112/52,22/62016812 91212/52,22/62022145 93012/52,22/62000043 96112/52,22/62007353 96212/52,22/62003443, Replaced By: A0010705175
426
ROD FROM ANGULAR LEVER TO INJECTION PUMP
428
SWITCH MICRO-SWITCH
434
CAM , Replaced By: A6010740212
434
CAM ON ADJUSTING SHAFT
437
WASHER COMPRESSED AIR LINE TO BRACKET
437
WASHER FUSE
437
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
440
SCREW ON ADJUSTING SHAFT
999
LOCK PLATE RELEASE LEVER TO SHAFT
999
LOCK PLATE
999
NUT TACHOGRAPH TO BRACKET
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017006018
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
WASHER , Replaced By: N000433005304
999
SPRING
999
BEARING BRACKET
999
ROD
999
LEVER BOWDEN CABLE, 952 006484 ALSO INSTALLED ON 005596,005606,005607,005948,005967,005976,005977,006013,006014,006054,006156-006158,006201-006204, 006230-006233,006239,006262,006263,006278,006311-006314,006319-006341,006354-006363,006428-006441.
999
LEVER , Replaced By: A6160704321
999
LEVER , 952 006484 ALSO INSTALLED ON 005596,005606,005607,005948,005967,005976,005977,006013,006014,006054,006156-006158,006201-006204, 006230-006233,006239,006262,006263,006278,006311-006314,006319-006341,006354-006363,006428-006441.
999
BEARING BRACKET ANGULAR LEVER
999
DASHPOT SHOCK ABSORBER
999
BRACKET BOWDEN CABLE
999
LEVER ANGULAR LEVER
999
BEARING BRACKET , Replaced By: A6010706424
999
ROLLER ROD TO CONTROL LEVER
999
BALL PIVOT LINK
999
BALL SOCKET , Replaced By: A0009918922
999
ROD
