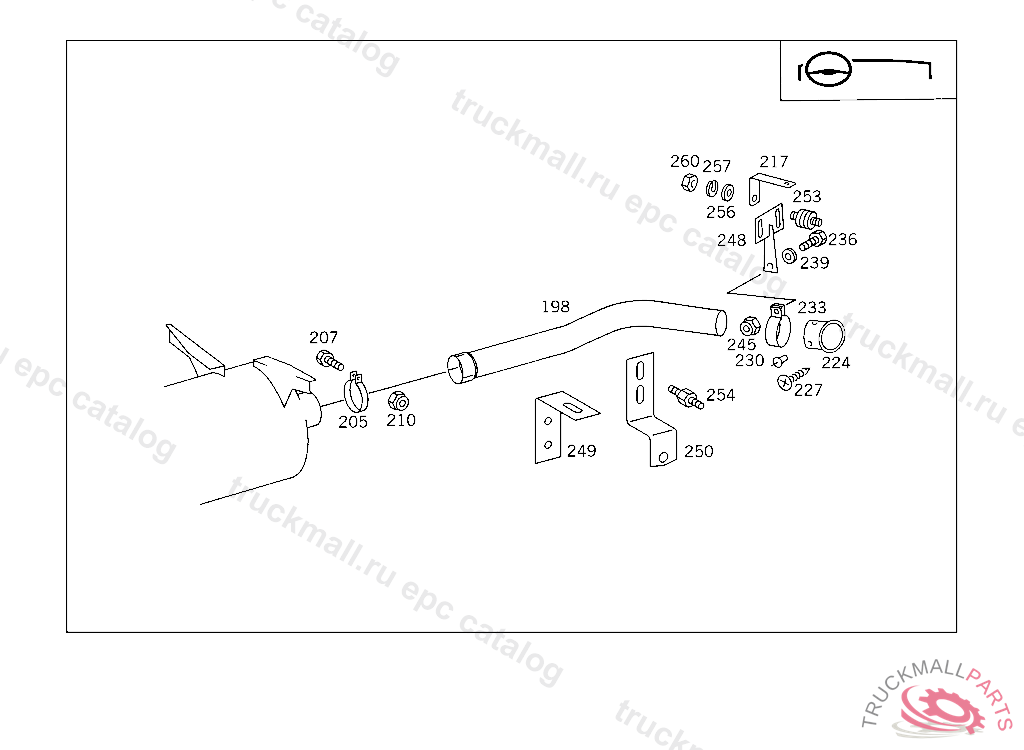

Поз.
Артикул
Описание
198
REAR EXHAUST PIPE
198
REAR EXHAUST PIPE1273,1 MM,076650
205
CLAMP , Replaced By: N071555104501
205
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
207
SCREW CLAMP TO EXHAUST PIPE
210
NUT BATTERY CABLE
224
END PIECE REAR EXHAUST PIPE
224
END PIECE REAR EXHAUST PIPE
227
TAPPING SCREW CHROMIUM JACKET TO REAR EXHAUST PIPE
230
RIVET GEARING TO BACKREST FRAME 3 MM
233
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
233
CLAMP , Replaced By: N071555100501
236
SCREW END PIECE TO EXHAUST PIPE M 10X25
239
WASHER , Replaced By: N000125010532
239
WASHER RADIATOR TO RUBBER MOUNTING
245
NUT STRAP TO BRACKET
253
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
256
WASHER EXHAUST MUFFLER TO STRAP
260
NUT REAR EXHAUST PIPE TO BRACKET
