Mercedes A0009907420 - БОЛТ М8

O 405 G 612.323

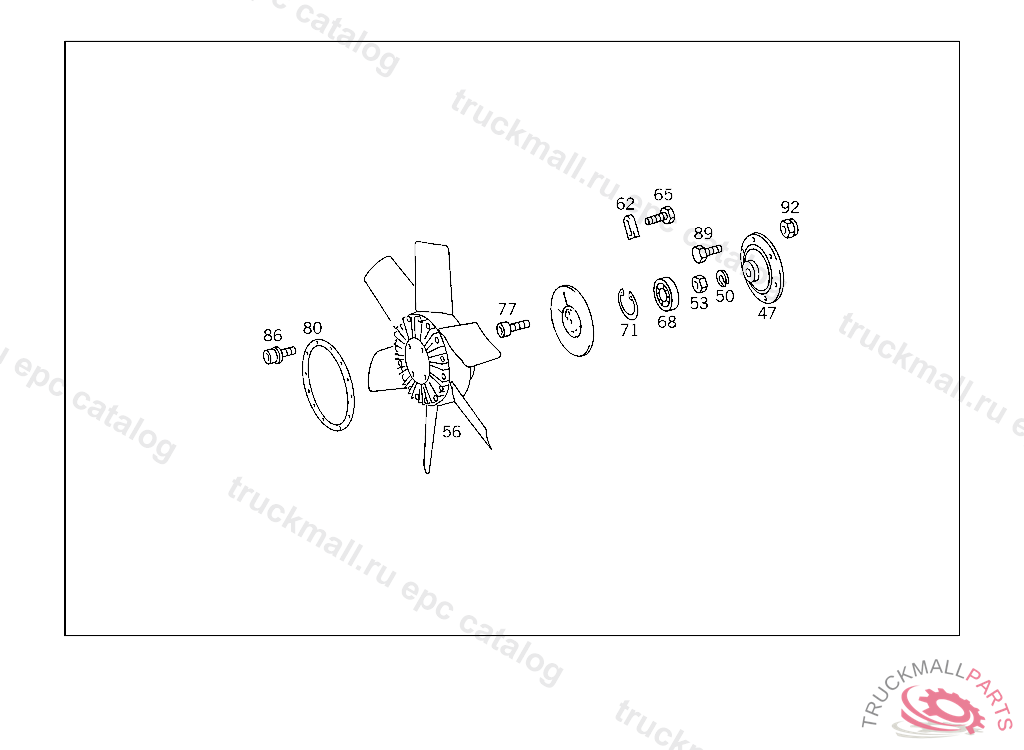

50 RADIATOR - 540 FAN DRIVE IL. 2

Поз.
Артикул
Описание
47
A3222050204
HUB POWER SAVER FAN
50
N912004016101
LOCK WASHERROCKINGER TYP 59 G140,59 G150
53
N000439016203
NUT WEAR INDICATOR
53
N913023016000
NUT HUB TO FAN SHAFT
56
A0022056606
FAN POWER SAVER FAN, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
62
A0002060118
GUIDE
65
A0002060071
SCREW
68
A0059814825
BALL BEARINGTO 002 205 19 06,63 06, TO BE ADAPTED DURING ASSEMBLY
71
A0002050073
LOCK AS REQUIRED 2.0 MM
71
A0002050273
LOCK AS REQUIRED 2.2 MM
71
A0002050373
LOCK AS REQUIRED 2.3 MM
71
A0002050173
LOCK AS REQUIRED 2.1 MM
77
A0009907420
SCREW
80
A0002060780
GASKETTO 002 205 19 06,63 06
86
N000912006040
SCREW OIL PIPE TO SLEEVE VALVE
89
N304017008024
SCREW BRACKET TO EXHAUST PIPE BRACKET
89
N000933008177
SCREW , Replaced By: N304017008024
92
N910113008001
NUT STRAP TO BRACKET
999
A0005832235
RECEPTACLE SILICONE GREASE
