Поз.
Артикул
Описание

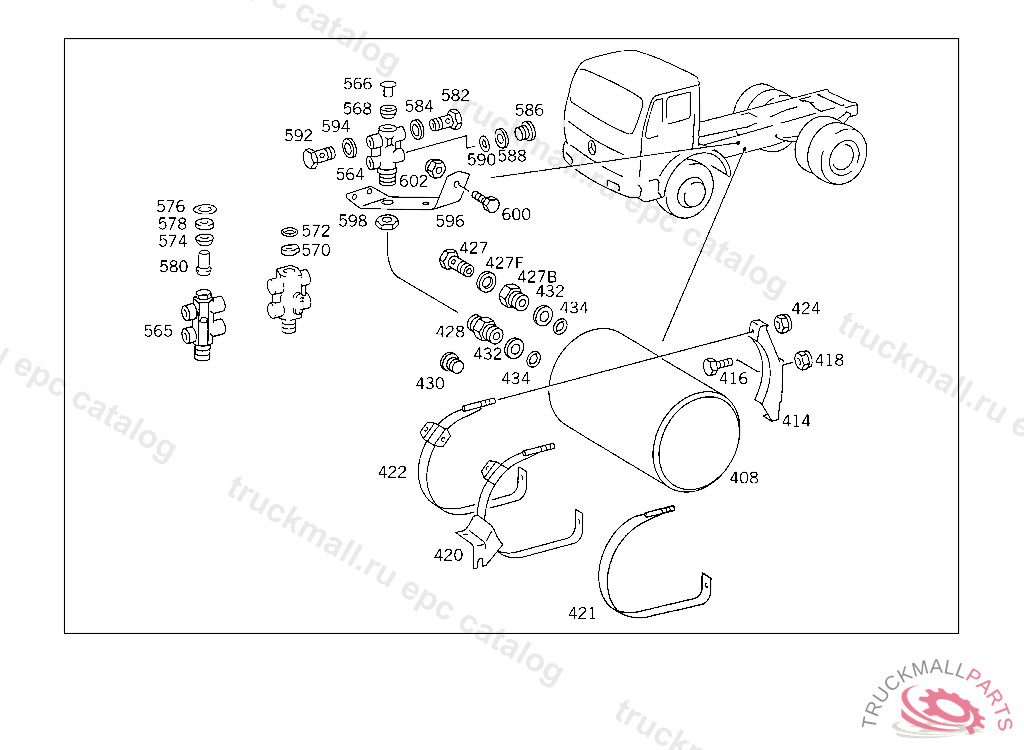

408
RESERVOIR20L,246 MM,12.5 BAR
408
RESERVOIR , Replaced By: A0014327501
408
RESERVOIR , Replaced By: A0034321201
414
BRACKET AIR RESERVOIR TO FRAME
416
SCREW BRACKET TO APPARATUS SUPPORT
416
SCREW , Replaced By: A0069909301
418
NUT , Replaced By: N913004008001
418
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
420
STRAP AIR RESERVOIR III,5 088362
420
STRAP FRONT AIR RESERVOIR,5 088361
421
STRAP AIR RESERVOIR TO BRACKET
422
STRAP FRONT AIR RESERVOIR,5 088361
424
NUT STRAP TO BRACKET
424
NUT , Replaced By: N910113010000
427
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
430
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
430
SCREW PLUG , Replaced By: N000908022011
432
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
432
THRUST RING CHECK VALVE TO AIR RESERVOIR
434
O-RING CHECK VALVE TO AIR RESERVOIR
564
VALVE (CHECK VALVE) VOSS
564
VALVE (CHECK VALVE) WABCO
565
VALVE (CHECK VALVE) SCHAEFER
566
VALVE TAPPETTO 002 429 96 44,VOSS
568
SEAL RINGTO 002 429 96 44,VOSS
570
VALVETO 003 429 04 44,WABCO
572
SEAL RING19.3X2.4 MM,TO 003 429 04 44,WABCO
574
SEAL RING13.6X2 MM,TO 003 429 12 44,SCHAEFER
576
SEAL RING15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
578
THRUST WASHERTO 003 429 12 44,SCHAEFER
580
SEAL CONETO 003 429 12 44,SCHAEFER
582
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
584
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
586
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
588
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
590
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
592
HOLLOW SCREW FUEL LINE TO FEED PUMP
592
HOLLOW SCREW , Replaced By: N915036010108
594
SEAL RING FUEL LINE TO FEED PUMP
596
BRACKET HEAT SHIELD
596
BRACKET , Replaced By: A6164290140
598
NUT CHECK VALVE TO AIR RESERVOIR
600
SCREW BRACKET TO SIDE MEMBER
600
SCREW , Replaced By: N304017010002
602
NUT , Replaced By: N910113010000
602
NUT STRAP TO BRACKET
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KIT PRESSURE REGULATOR BOSCH,241
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
CONNECTOR REPAIR SIZE
999
LOCK ELECTRIC CABLE THRU CAB FLOOR
999
SCREW. UNION SCREW LINE CONNECTION
999
BANJO UNION FROM BULKHEAD FITTING TO PRESSURE REGULATOR
999
LOOM TIE LINE MOUNTING 280 MM
999
CLAMP BREATHER LINE TO FRONT AXLE, NOT USED
999
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
SCREW , Replaced By: N304017006016
999
WASHER STRAP TO SUPPORT
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
WASHER , Replaced By: N009021005205
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
SCREW PUMP TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
UNION NUT LINE CONNECTION
999
SEAL RING , Replaced By: N007603012121
