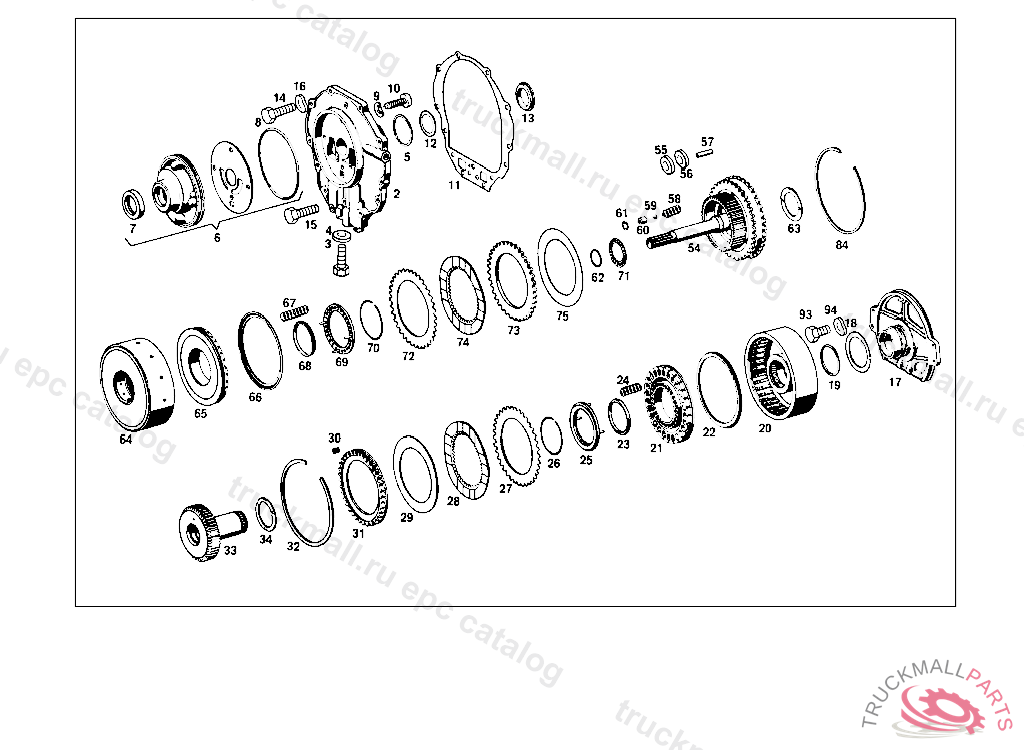

Поз.
Артикул
Описание
2
COVER , 000,001,004,010,016 FROM TRANSMISSION 001678
3
SCREW PLUG , 021,023 FROM TRANSMISSION 024425
4
SEAL RINGTO 001 431 72 14
5
SEAL RING
6
HOUSING WITH PRIMARY PUMP
7
SEAL RING
8
SEAL RING
8
SEAL RING
9
SPRING WASHER
10
SCREW
11
GASKET , Replaced By: A1122711380
11
GASKET
12
SPACER WASHER0.1 MM, NO LONGER AVAILABLE
12
SPACER WASHER , Replaced By: A1122710052
12
SPACER WASHER 0.5 MM
13
THRUST WASHER
14
SCREW
15
SCREW
16
SPRING WASHER BRACKET TO PEDAL ASSEMBLY BEARING BRACKET, 000,001,004,010 UP TO CHASSIS 064105 EXCEPT FOR, SEE FOOTNOTE 2, 10/50, 20/60, 100,101,104,110 UP TO CHASSIS 099641 EXCEPT FOR , SEE FOOTNOTE 3, ALSO INSTALLED ON 099892
17
FLANGE
18
GUARD PLATE
19
SEAL RING
20
FLANGE , 015 FROM TRANSMISSION 005208
21
PISTON
22
BOOT
22
BOOT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3162720792
23
BOOT
24
SPRING
25
SPRING RETAINER
26
SNAP RING
28
INNER DISC
29
GUARD PLATE 0.6 MM
30
SPRING
31
GUARD PLATE , 015 FROM TRANSMISSION 005208
31
GUARD PLATE , 015 FROM TRANSMISSION 005208
32
LOCK
33
DRIVE SHAFT
34
GUARD PLATE , NO LONGER AVAILABLE
54
PLANETARY CARRIER FRONT PLANETARY GEAR TRAIN
55
GUARD PLATE , NO LONGER AVAILABLE
56
GUARD PLATE , NO LONGER AVAILABLE
57
PIN
58
SPRING
59
BALL SHIFTING CYLINDER
60
RING , NO LONGER AVAILABLE
61
LOCK RING
62
SEAL RING DRIVE SHAFT
63
GUARD PLATE , NO LONGER AVAILABLE
64
FLANGE , 015 FROM TRANSMISSION 005208
66
BOOT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3162720792
66
BOOT
67
SPRING
68
BOOT
69
SPRING RETAINER
70
SNAP RING
71
NEEDLE BEARING
72
OUTER DISC 2.0 MM
73
OUTER DISC , 012, 014 FROM TRANSMISSION 001945, 015 FROM TRANSMISSION 007429
74
INNER DISC
75
GUARD PLATE 0.6 MM
84
LOCK
93
SCREW BRACKET TO CROSS CONNECTION STRUT
93
SCREW , Replaced By: N304017008034
94
SPRING WASHER GROUND CABLE TO TRANSMISSION
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW PIPE CLAMP
999
NUT BATTERY MOUNTING
999
NUT
999
THREADED INSERT
999
THREADED INSERT REPAIR SIZE
999
THREADED INSERT REPAIR SIZE
999
THREADED INSERT REPAIR SIZE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
HOLLOW SCREW , Replaced By: N915036010108
999
SCREW STEERING COLUMN PANELLING M 5X12
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
999
LOCK WASHER TAIL LAMP TO BRACKET
999
SPRING WASHER , Replaced By: N000137004202
999
SPRING WASHER AT GENERATOR TERMINAL D+, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
999
GROOVED BALL BEARING , 322 UP TO IDENT NO. 036634 EXCEPT FOR 036376,036449,036450,036452-036454 323 UP TO IDENT NO. 006437 328 UP TO IDENT NO. 012103 EXCEPT FOR 011917 L 338 UP TO IDENT NO. 002999 EXCEPT FOR 002938 LP 338 UP TO IDENT NO. 001122 340 UP TO IDENT NO. 000338 EXCEPT FOR 000327,000328
999
SCREW HYDRAULIC CLUTCH TO ENGINE, 021,023 UP TO CHASSIS 086009
999
SCREW OIL TANK TO BRACKET
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
SCREW COVER PLATE TO BRACKET
999
SCREW
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: A0089907401
999
NUT TACHOGRAPH TO BRACKET
999
NUT BALL PIVOT TO LEVER
999
NUT CYLINDER TO BRACKET TO0002902112
999
NUT , Replaced By: N304032008006
999
NUT
999
WOODRUFF KEY LEVER TO SHAFT
999
SEAL RING
999
SEAL RING
999
SCREW PLUG , Replaced By: N007604014110
999
SCREW PLUG FUEL TANK
999
BULB2W
999
SCREW PUMP TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW CLAMP MOUNTING
999
SCREW , 015 UP TO TRANSMISSION 005207
999
KNOB , Replaced By: A1112680842
999
PIN
999
FILTER RANGE OF DELIVERY COMPRISES:, 021,023 FROM TRANSMISSION 006751-009935, FROM TRANSMISSION 023011
999
PLUG , 014 FROM TRANSMISSION 000904, 015 FROM TRANSMISSION 006447
999
SCREW PLUG , 014 UP TO TRANSMISSION 000903
999
SPRING , 015 UP TO TRANSMISSION 005207
999
SPRING , NO LONGER AVAILABLE
999
SPRING , TO 112 270 09 07
999
SPRING OUTSIDE, NO LONGER AVAILABLE
999
SPRING
999
SPRING , 015 UP TO TRANSMISSION 005207
999
SPRING , NO LONGER AVAILABLE
999
SPRING , NO LONGER AVAILABLE
999
SPRING , TO 112 270 09 07
999
SPRING , 015 UP TO TRANSMISSION 005207
999
SPRING , NO LONGER AVAILABLE
999
SPRING
999
PIN REPAIR SIZE 5.5 MM, NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16
999
PROTECTIVE PLATE , 015 UP TO CHASSIS 000665, Replaced By: A1114920430, +001A1104900644
999
PISTON , 043 UP TO TRANSMISSION 002079 NO LONGER AVAILABLE
999
SHIFT VALVE , NO LONGER AVAILABLE
999
BUSHING
999
SHIFT VALVE , 015 UP TO TRANSMISSION 005207
999
SHIFT VALVE , 015 UP TO TRANSMISSION 005207
999
BUSHING , 021,023 UP TO TRANSMISSION 002079
999
PISTON , NO LONGER AVAILABLE 015 UP TO TRANSMISSION 005207
999
SHIFT VALVE , NO LONGER AVAILABLE
999
PIN AS REQUIRED 82 MM
999
PIN AS REQUIRED 81 MM, 015 FROM TRANSMISSION 002756
999
PISTON , NO LONGER AVAILABLE
999
GASKET , 015 UP TO TRANSMISSION 005207
999
COVER , 015 UP TO TRANSMISSION 005207
999
SPRING RETAINER , 015 UP TO TRANSMISSION 005207
999
INTERMEDIATE PLATE , 015 UP TO TRANSMISSION 005207
999
GASKET , Replaced By: A1122772080
999
BUSHING , 015 UP TO TRANSMISSION 005207
999
INSULATING RING
999
INSULATING RING , NO LONGER AVAILABLE
999
PIN , 004995
999
GUARD PLATE , 015 UP TO TRANSMISSION 005207
999
PISTON , NO LONGER AVAILABLE
999
GUARD PLATE , 015 UP TO TRANSMISSION 005207
999
DISC SUPPORT
999
GUARD PLATE , 015 UP TO TRANSMISSION 005207
999
OUTER DISC , 043 UP TO TRANSMISSION 001944, Replaced By: A1122720726, +001A1122721126, +001A1122721226
999
LOCK , 015 UP TO TRANSMISSION 005207
999
OUTER DISC , 021,023 UP TO TRANSMISSION 001944, Replaced By: A1122721126, +001A1122721226
999
LOCK , 015 UP TO TRANSMISSION 005207
999
SPACER WASHER , Replaced By: A1122720352
999
FLANGE , 015 UP TO TRANSMISSION 005207
999
OUTER DISC , 015 UP TO TRANSMISSION 003528, Replaced By: A1092720826, +003A1122720225
999
SPACER WASHER AS REQUIRED 0.1 MM, 015 UP TO TRANSMISSION 005207
999
OUTER DISC , 015 UP TO TRANSMISSION 003528, Replaced By: A1092720826, +003A1122720225
999
GEAR MAIN SHAFT, 015 UP TO TRANSMISSION 005207
999
GUARD PLATE , 015 UP TO TRANSMISSION 005207
999
DISC SUPPORT , 015 UP TO TRANSMISSION 005207
999
FLANGE , 015 UP TO TRANSMISSION 005207
999
FLANGE , 015 UP TO TRANSMISSION 005207, Replaced By: A1122703920, +001A1152721492
999
BRAKE BAND , 015 UP TO TRANSMISSION 004995, Replaced By: A1122702362, +001A1122771074, +002A1122773175
999
GASKET KIT
999
FLANGE , 015 UP TO TRANSMISSION 005207, Replaced By: A1122703920, +001A1152721492
999
PLANETARY CARRIER , 015 UP TO TRANSMISSION 005207
999
VALVE BODY ASSEMBLY , NO LONGER AVAILABLE 015 UP TO TRANSMISSION 005207
999
BRAKE BAND , 015 UP TO TRANSMISSION 004995, Replaced By: A1122702362, +001A1122771074, +002A1122773175
999
VALVE BODY ASSEMBLY , 015 UP TO TRANSMISSION 005207
999
BRAKE BAND , 015 UP TO TRANSMISSION 004995, Replaced By: A1122702362, +001A1122771074, +002A1122773175
999
LEVER , 004266, Replaced By: A1122700556, +001A1122700656, +002N000125006407, +002N000137006200, +002N000933006077, +002N000934006006
999
REGULATOR VALVE , NO LONGER AVAILABLE
999
DRIVE SHAFT , 015 UP TO TRANSMISSION 005207
999
BREATHER REPAIR SIZE, 012, 014 UP TO TRANSMISSION 006059, 015 UP TO TRANSMISSION 008636
999
LEVER , 004266, Replaced By: A1122700556, +001A1122700656, +002N000125006407, +002N000137006200, +002N000933006077, +002N000934006006
999
DRIVE SHAFT
999
HOUSING , 015 UP TO TRANSMISSION 005207
999
GEAR INDICATOR , UP TO CHASSIS 088724
999
FLANGE , 015 UP TO TRANSMISSION 005207, Replaced By: A1122703920, +001A1152721492
999
COVER , 000,001,004,010,016 UP TO TRANSMISSION 001677, Replaced By: A1102700105, +001A1109970330, +001N007603012104
999
GASKET KIT , Replaced By: A1122701800
999
SLOTTED GATE , 000,001,004,010 UP TO CHASSIS 096131, 100,101,104,110 UP TO CHASSIS 156041
999
SHIFTING SEGMENT , 000,001,004,010 UP TO CHASSIS 096131, 100,101,104,110 UP TO CHASSIS 156041
999
SHIFTING SEGMENT , 000,001,004,010 UP TO CHASSIS 096131, 100,101,104,110 UP TO CHASSIS 156041
999
BEARING BRACKET , 000,001,004,010 UP TO CHASSIS 130557, 100,101,104,110 UP TO CHASSIS 225647
999
SHIFTING TUBE , 000,001,004,010 UP TO CHASSIS 130557, 100,101,104,110 UP TO CHASSIS 225647
999
LEVER , 000,001,004,010 UP TO CHASSIS 130557, 100,101,104,110 UP TO CHASSIS 225647
999
GUIDE PLATE , 000,001,004,010 UP TO CHASSIS 096131, 100,101,104,110 UP TO CHASSIS 156041
999
PROTECTIVE PLATE , 015 UP TO CHASSIS 000665, Replaced By: A1114920430, +001A1104900644
999
PROTECTIVE PLATE , 000,001,004,010,016 UP TO CHASSIS 130557
999
GUARD PLATE , 008596-015979
999
PISTON , 000,001,004,010,016 UP TO TRANSMISSION 003600
999
BOOT , 000,001,004,010,016 UP TO TRANSMISSION 003600
999
LINE
999
FLANGE , 000,001,004,010,016 UP TO TRANSMISSION 003600
