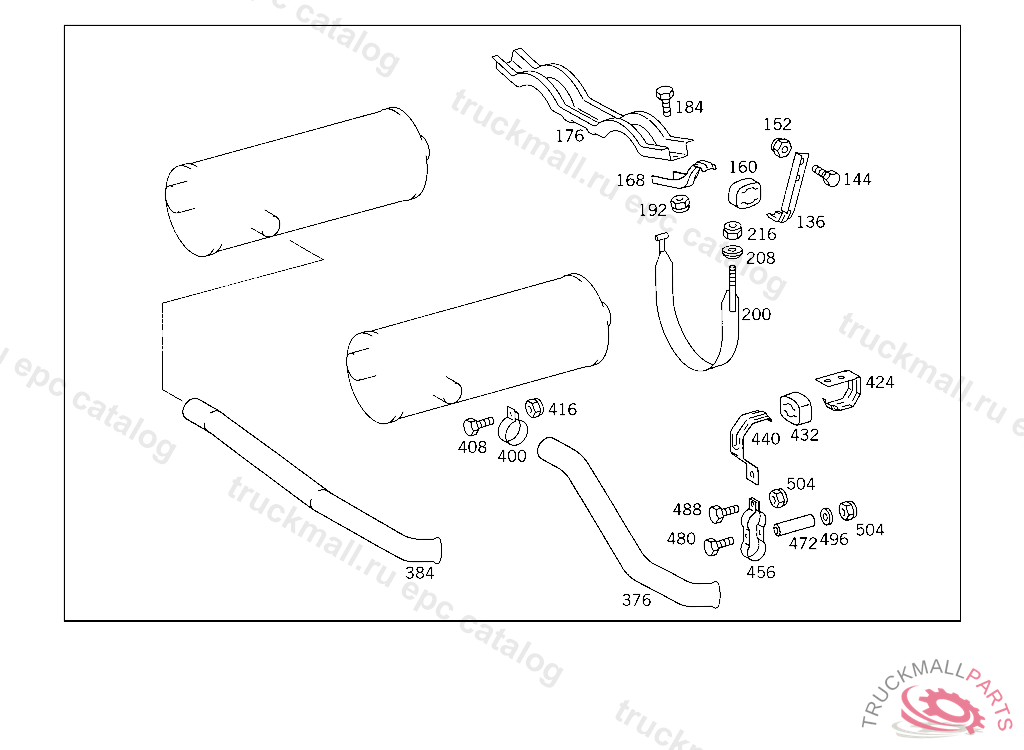

Поз.
Артикул
Описание
136
BRACKET EXHAUST MUFFLER
136
BRACKET EXHAUST MUFFLER
144
SCREW , Replaced By: N304017010002
144
SCREW BRACKET TO SIDE MEMBER
152
NUT STRAP TO BRACKET
152
NUT , Replaced By: N910113010000
160
DAMPING PAD PARTICLE FILTER
168
BRACKET EXHAUST MUFFLER
176
SUPPORT EXHAUST MUFFLER
184
SCREW , Replaced By: N304017008021
184
SCREW PIPE CLAMP
192
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
192
NUT , Replaced By: N913004008001
200
STRAP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR,5 548864
208
SPHERICAL WASHER STRAP TO BRACKET
216
NUT STRAP TO BRACKET
216
NUT , Replaced By: N910113010000
376
REAR EXHAUST PIPE (TAIL PIPE)
384
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
400
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
408
SCREW , Replaced By: N304017008027
408
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
416
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
416
NUT , Replaced By: N913004008001
424
BRACKET PARTICLE FILTER
432
DAMPING PAD PARTICLE FILTER
440
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
456
CLAMP EXHAUST PIPE TO BRACKET
472
SPACER TUBE EXHAUST PIPE TO BRACKET
480
SCREW , Replaced By: N304014010004
480
SCREW REAR EXHAUST PIPE TO CLAMP
488
SCREW , Replaced By: N304017010002
488
SCREW BRACKET TO SIDE MEMBER
496
WASHER RADIATOR TO RUBBER MOUNTING
504
NUT STRAP TO BRACKET
504
NUT , Replaced By: N910113010000
