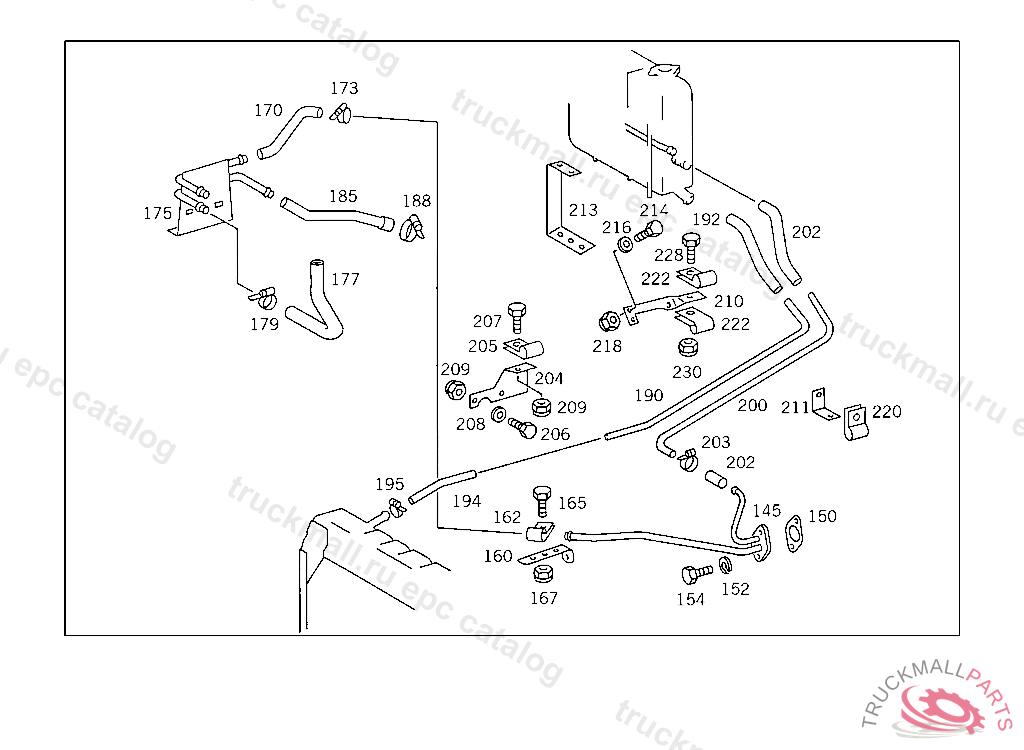

Поз.
Артикул
Описание
145
FLANGE HEATING AND BREATHING, 415 5 014668 416 5 000515 417 4 972023
150
GASKET. SEAL DE-AERATION PIPE TO ENGINE
152
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
154
SCREW END PIECE TO EXHAUST PIPE M 10X25
160
BRACKET ENGINE CABLE HARNESS PLUG-CONNECTION,5 452356
162
CLAMP FEED LINE TO THERMOSTAT
165
SCREW , Replaced By: N304017008016
165
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
165
SCREW COVER PLATE TO BRACKET
167
NUT , Replaced By: N913004008001
167
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
167
NUT , Replaced By: N910113006001
167
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
170
HOSE , Replaced By: A3875060235
170
HOSE
173
CLAMP , Replaced By: N000000000667
173
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
175
LINE , Replaced By: A3875000072
175
LINE HEATING,MOUNTED TOGETHER WITH RADIATOR AT RUBBER BUFFER, 415 5 014668 416 5 000515 417 4 972023
177
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
179
CLAMP , Replaced By: N000000000667
179
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
185
HOSE , Replaced By: A3635060135
185
HOSE , Replaced By: A3635060135
185
HOSE , Replaced By: A3635060235
185
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR,5 534803
188
CLAMP , Replaced By: N000000000667
188
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
188
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
188
CLAMP25-40X13 MM
190
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK 1115 MM,4 635938
190
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK 1155 MM,4 635939
192
HOSE ,4 287374
192
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
195
CLAMP , Replaced By: N000000000667
195
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
200
BREATHER PIPE FROM ENGINE TO EXPANSION TANK 15X870 MM
200
BREATHER PIPE FROM ENGINE TO EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023
202
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
203
CLAMP , Replaced By: N000000000667
203
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
210
BRACKET , Replaced By: A3855010220
210
BRACKET RADIATOR AND ENGINE BREATHING,AT ENGINE,4 635938
211
BRACKET , Replaced By: A6454310740
211
BRACKET FUEL LINE TO BELL HOUSING
214
SCREW MANUAL PUMP TO BRACKET AND TO PLATE M 10X40
216
WASHER , Replaced By: N000125010532
216
WASHER RADIATOR TO RUBBER MOUNTING
216
WASHER RADIATOR TO RUBBER MOUNTING
218
NUT , Replaced By: N910113010000
218
NUT STRAP TO BRACKET
218
NUT STRAP TO BRACKET
220
CLAMP , Replaced By: N916016011202
220
CLAMP AT BRACKET
222
CLAMP , Replaced By: A3609951201
222
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
222
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
222
CLAMP , Replaced By: A6739950001
222
CLAMP DELIVERY AND SUCTION LINES TO STEERING
228
SCREW , Replaced By: N304017008021
228
SCREW PIPE CLAMP
228
SCREW COVER PLATE TO BRACKET
228
SCREW COVER PLATE TO BRACKET
228
SCREW CAB FLOOR COVERING M 6X25
230
NUT , Replaced By: N913004008001
230
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
230
NUT , Replaced By: N913004006001
230
NUT PUMP TO BRACKET
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
SHIM RUBBER MOUNTING TO BRACKET
999
SHIM RUBBER MOUNTING TO BRACKET
999
BRACKET OIL LINE TO TRANSMISSION,REAR LEFT
999
CLAMP , Replaced By: A3609950601
