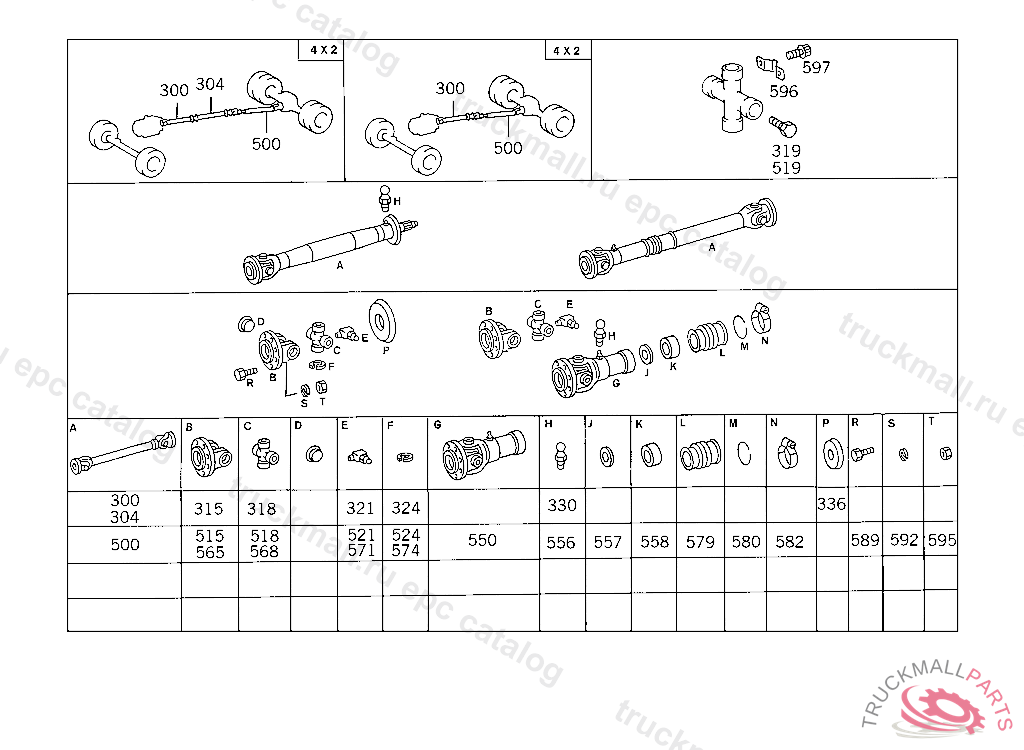

Поз.
Артикул
Описание
300
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING 1303 MM-KRUPP
315
DRIVE FLANGE
318
UNIVERSAL JOINT CROSS WITH BUSHINGS
321
GREASE NIPPLE
321
GREASE NIPPLE
324
SNAP RING AS REQUIRED 2.85 MM
324
SNAP RING AS REQUIRED 2.90 MM
324
SNAP RING AS REQUIRED 2.95 MM
324
SNAP RING AS REQUIRED 3.00 MM
324
SNAP RING AS REQUIRED 2.80 MM
330
GREASE NIPPLE PROTECTIVE TUBE
336
PROTECTIVE CAP
500
PROPELLER SHAFT FROM INTERMEDIATE BEARING TO REAR AXLE 1444 MM
515
DRIVE FLANGE
518
UNIVERSAL JOINT CROSS REAR PROPELLER SHAFT KRUPP
521
GREASE NIPPLE
521
GREASE NIPPLE
524
LOCK1.825 MM
524
LOCK1.725 MM
524
LOCK1.800 MM
524
LOCK1.750 MM
524
LOCK1.775 MM
524
LOCK1.700 MM
550
UNIVERSAL JOINT YOKE
556
GREASE NIPPLE INTERMEDIATE LEVER
557
GASKET
558
SEAL HOLDER
565
DRIVE FLANGE
568
UNIVERSAL JOINT CROSS REAR PROPELLER SHAFT KRUPP
571
GREASE NIPPLE
571
GREASE NIPPLE
574
LOCK1.825 MM
574
LOCK1.725 MM
574
LOCK1.750 MM
574
LOCK1.800 MM
574
LOCK1.700 MM
574
LOCK1.775 MM
579
BOOT
582
LOOM TIE. CLAMP
582
CLAMP. LOOM TIE90-110
582
LOOM TIE
589
SCREW , Replaced By: A0079901001
589
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
595
NUT , Replaced By: N308673010001
