Поз.
Артикул
Описание

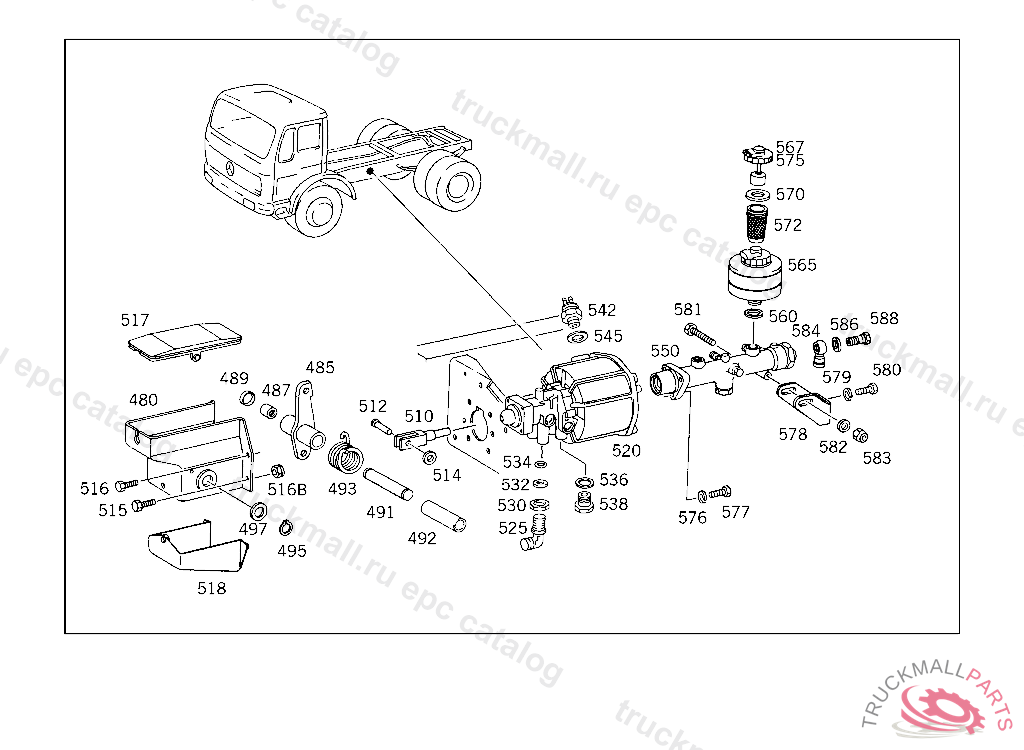

480
BRACKET , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB4 444416
485
BRAKE LEVER , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
487
NEEDLE BEARING , Replaced By: A0119813410
487
NEEDLE BEARING , Replaced By: A0119813410
487
NEEDLE BEARING
489
SEAL RING , Replaced By: A0069979147
489
SEAL RING , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
491
PIVOT PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB4 444415
492
SPACER TUBE , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB4 444416
493
SPRING , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
495
LOCK RING
497
WASHER RETAINING ROPE TO BEARING BRACKET, BOTTOM
510
ROD , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
512
PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
514
WASHER , Replaced By: N000433010510
514
WASHER VIBRATION ABSORBER TO BRACKET
515
SCREW END PIECE TO EXHAUST PIPE M 10X25
516
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
518
PROTECTIVE PLATE ,4 895864
520
BRAKE CYLINDER , MAKE WABCO NO. 462 193 000 0, Replaced By: A0014317114
520
BRAKE CYLINDER , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 847617 MAKE BOSCH NO. 0 483 004 106, Replaced By: A0014317114
520
BRAKE CYLINDERBOSCH, 385.068,069,FOR USE WITH MERCEDES-BENZ CAB MAKE BOSCH NO. 0 483 004 601 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
525
FITTING ,4 667210
525
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
530
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
532
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
534
SEAL RING
534
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
536
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
538
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
542
SWITCH PRESSURE SWITCH M 24 X 1 MM
545
SEAL RING , Replaced By: N007603010110
545
SEAL RING PNEUMATIC VALVE
550
BRAKE MASTER CYLINDERSCHAEFER
560
SEAL RING LINE CONNECTION
565
RESERVOIR
567
FILLER CAPTO 000 431 87 02
567
FILLER CAP , Replaced By: A0004315533
570
SEAL RING42X21.5 MM
572
STRAINERTO 000 431 87 02
575
FILLER CAPTO 000 431 97 02
576
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
577
SCREW BRACKET TO SIDE MEMBER
577
SCREW , Replaced By: N304017010002
578
BRACKET BRAKE MASTER CYLINDER
579
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
580
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
581
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
581
SCREW , Replaced By: N304014008001
582
WASHER EXHAUST MUFFLER TO STRAP
582
WASHER , Replaced By: N000125008443
583
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
583
NUT , Replaced By: N913004008001
584
CONNECTOR MASTER CYLINDER,CONNECTION "2.1",4 338292
584
CONNECTOR MASTER CYLINDER,CONNECTION "2.1",4 338292
586
SEAL RING FUEL LINE TO FEED PUMP
588
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
588
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
999
CUPTO 002 431 04 06,BOSCH
999
CUP , Replaced By: A0004312786
999
SEAL RINGTO 000 431 95 14,4 847617
999
PROTECTIVE CAP
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
PLUG
999
SPRINGBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
SPRING , Replaced By: A0009935205
999
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
999
LOCK WASHER , Replaced By: N000127010202
999
CAPTO 001 431 71 14
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
REPAIR KIT , Replaced By: A0004305860
999
REPAIR KIT SLAVE CYLINDER TO 000 296 01 07
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
CUPTO 001 431 43 05,BOSCH-TEVES, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
CUPBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
PROTECTIVE CAPTO 000 431 24 14
999
PISTONTO 000 431 21 14,BOSCH
999
PISTONTO 000 439 95 14,4 847617
999
PISTONTO 000 431 95 14,4 847617
999
PISTONTO 001 431 71 14,001 431 73 14
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
TEST CONNECTION FRONT AXLE
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
CUPTO 000 431 66 14
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE SEATTO 001 431 68 06,GRAU 37001, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
VALVE SEATGRAU
999
CUPTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 724
999
LEVER
999
LEVER TOOTHED
999
TEST CONNECTION FRONT AXLE
999
TEST CONNECTION
999
GASKET34X2X6 MM,GRAU
999
COVERTO 001 431 73 14,001 431 71 14
999
GUIDE BUSHINGTO 000 439 95 14,4 847617
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
YOKE L.H. THREAD, SELF-LEVELLING DEVICE
999
FILTER BOTTOMTO 000 431 24 14
999
VALVE , Replaced By: A0004310265
999
VALVE , Replaced By: A3075530107
999
BREATHER PIPE PRESSURE REGULATOR,CONNECTION "3",4 281211
999
SPACER RING ,4 428462
999
VALVE
999
REPAIR KITTO 000 430 56 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITTO 001 431 84 06,KNORR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE BOSCH
999
REPAIR KIT COMPRESSED AIR CYLINDER TO 000 431 95 14,001 431 32 14
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
999
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
999
REPAIR KITTO 001 431 47 06,WABCO 2210, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
MUFFLER PRESSURE REGULATOR BREATHING
999
DISTRIBUTOR REAR AXLE,4 478330
999
DISTRIBUTOR ,4 342862
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
BRAKE HOSE , Replaced By: A0024280735
999
SCREW PLUG CONNECTION "1","2",4 478330
999
PROTECTIVE CAP ,5 962906
999
PROTECTIVE CAP , Replaced By: A0004210887
999
PROTECTIVE CAP , Replaced By: A0004217187
999
BLEEDER VALVE , Replaced By: A0004310265
999
BLEEDER VALVE , Replaced By: A0004310265
999
VALVEBOSCH
999
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
999
VALVE , Replaced By: A3075530107
999
CLAMP , Replaced By: N000000000667
999
CLAMP , Replaced By: A0059970190
999
CLAMP , Replaced By: N000000000670
999
FITTING
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
999
HOLLOW SCREW LINE CONNECTION
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT STRAP TO BRACKET
999
PULL ROD PNEUMATIC SUSPENSION CONTROL
999
SCREW BRACKET TO TRANSMISSION
999
SCREW
999
SCREW , Replaced By: N304017010051
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW PIPE CLAMP
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW LICENSE PLATE TO BRACKET
999
FITTING BETWEEN THE LINES
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
999
INSULATING HOSE COLOR CODE BLUE,YB227219
999
SNAP RINGTO 000 431 94 14,000 431 96 14
999
SNAP RING GEAR INDICATOR TO INSTRUMENT PANEL
999
SEAL RING VALVE TO VALVE,K 025179
999
FITTING AT LEFT SIDE MEMBER,4 347260
999
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
999
SCREW HAND BRAKE VALVE TO CAB
999
SCREW PEDAL TO CAB FLOOR
999
SCREW , Replaced By: N308676012038
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT BALL PIVOT TO LEVER
999
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW EXHAUST PIPE TO BRACKET
999
SCREW , Replaced By: N304017008016
999
SCREW FITTING TO TRANSMISSION M8X32
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017006020
999
SCREW CLUTCH TO FLYWHEEL
999
SCREW BRACKET TO BELL HOUSING
999
SCREW MOUNTING AND RAIL TO LEAF SPRING
999
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET M 8X95
999
SCREW REAR AXLE REGULATING SOLENOID VALVE
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
LOCK RINGTO 000 431 94 14,000 431 96 14
999
LOCK RINGTO 000 431 94 14,000 431 96 14
999
LOCK RINGTO 001 431 71 14,001 431 73 14
999
LOCK RING22X1.2,TO 001 431 71 14
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN VIBRATION ABSORBER TO BRACKET,5 117575
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
BRACKET , NOT USED
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET PRESSURE GAUGE LINE TO BRACKET,4 895864
999
BRACKET BUMPER,RIGHT, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
